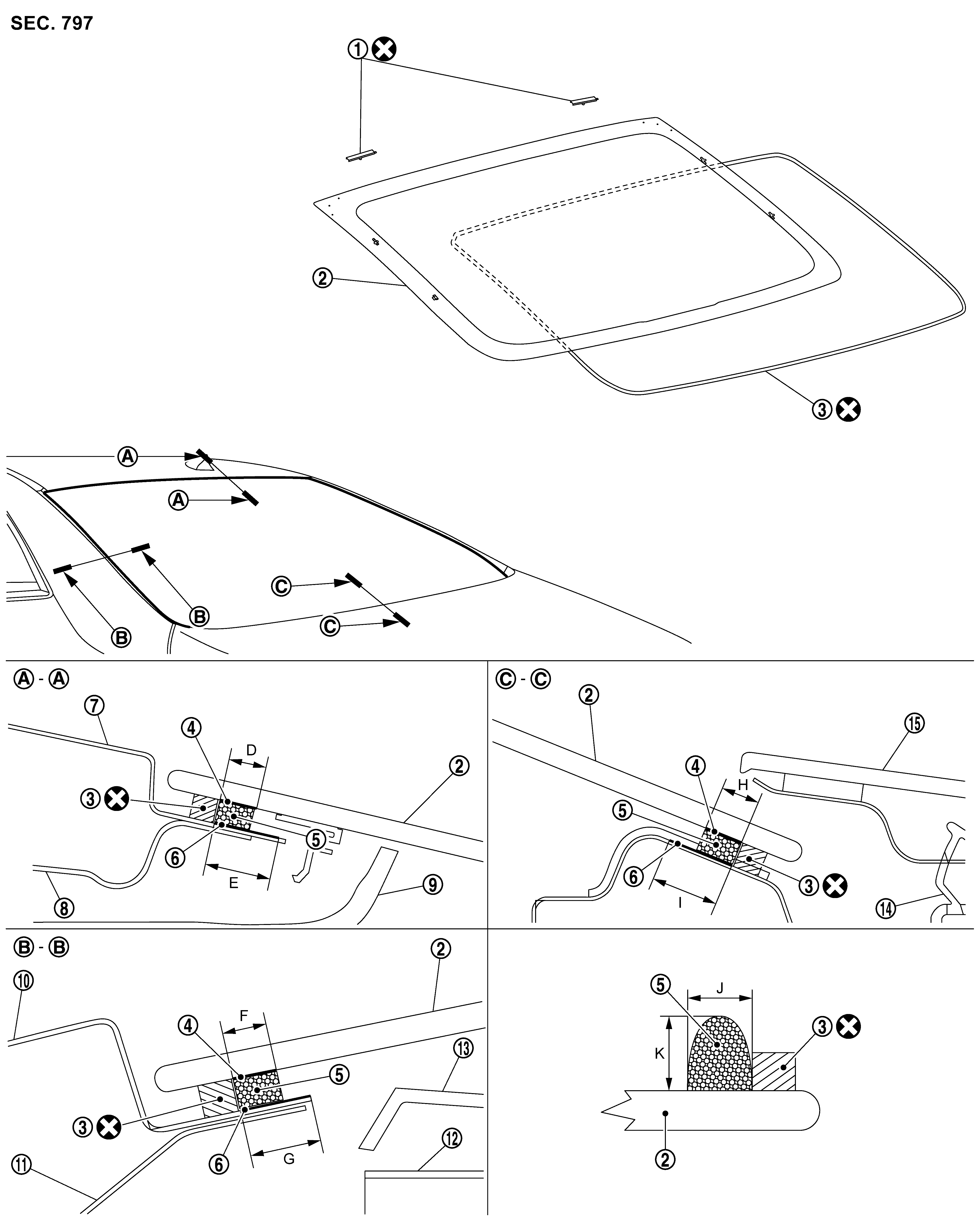

Exploded View
|
|
Rear window glass spacer |
|
Rear window glass |
|
Dam sealant rubber |
|
|
Glass primer |
|
Adhesive |
|
Painted surface primer |
|
|
Roof panel |
|
Rear roof rail panel |
|
Headlining assembly |
|
|
Body side outer panel |
|
Rear pillar inner panel |
|
Rear parcel shelf finisher |
|
|
Rear pillar finisher |
|
Trunk lid weather-strip |
|
Trunk lid |
|
|
: Always replace after every disassembly. |
||||
Unit: mm (in)
|
Portion |
Primer range |
Adhesive range |
|||
|
J |
K |
||||
|
Rear window glass - Roof panel |
|
D |
8.0 (0.315) |
7.0 (0.276) |
12.0 (0.472) |
|
E |
10.0 - 15.0 (0.394 - 0.591) |
-- |
-- |
||
|
Rear window glass - Body side outer panel |
|
F |
8.0 (0.315) |
7.0 (0.276) |
12.0 (0.472) |
|
G |
10.0 - 15.0 (0.394 - 0.591) |
-- |
-- |
||
|
Rear window glass - Trunk lid |
|
H |
8.0 (0.315) |
7.0 (0.276) |
12.0 (0.472) |
|
I |
10.0 - 15.0 (0.394 - 0.591) |
-- |
-- |
||
