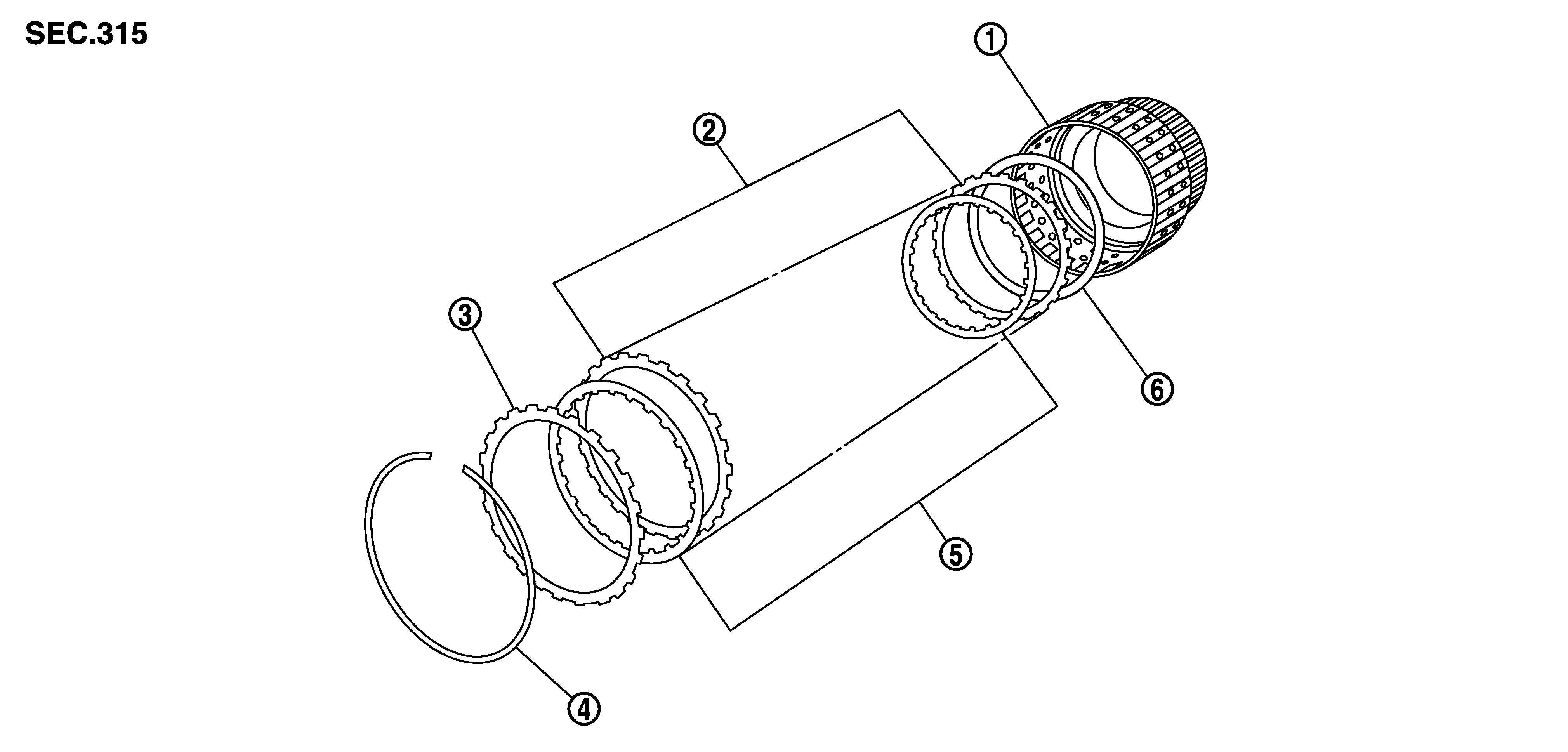

DIRECT CLUTCH : Exploded View (Disassembly & Assembly)

GNSJSDIA1949Z-949Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Direct clutch drum

SYMBOL

Direct clutch driven plate

SYMBOL

Direct clutch retaining plate

SYMBOL

Snap ring

SYMBOL

Direct clutch drive plate

SYMBOL

Direct clutch dish plate
