Display And Warning

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Warning Display

System status	Condition	Display on combination meter	FEB warning lamp	Buzzer

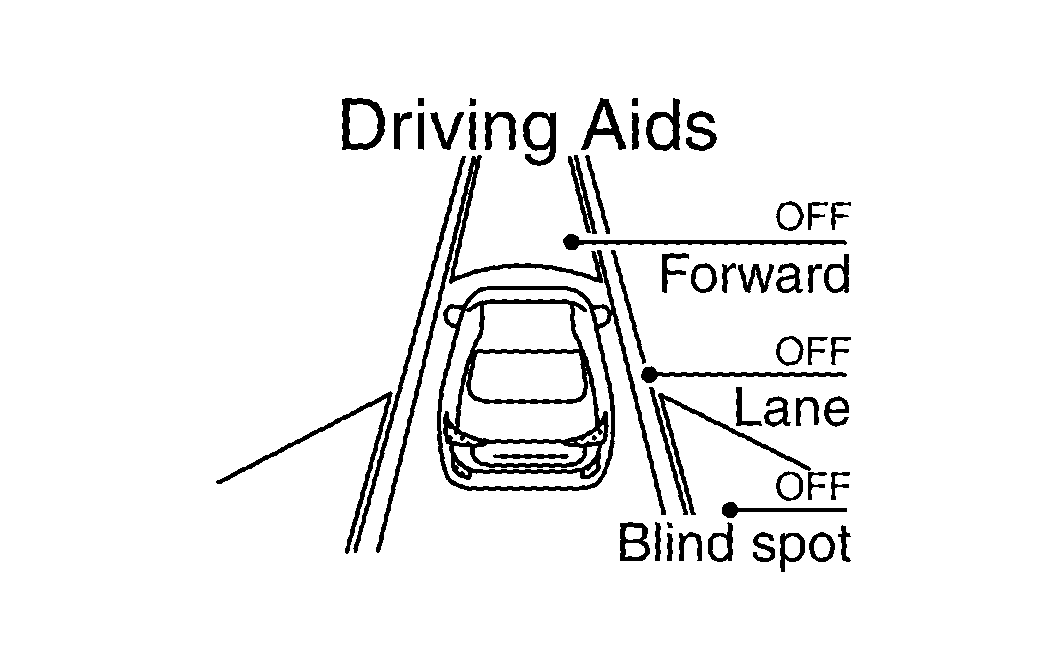

FEB/PFCW OFF	--	Courtesy of NISSAN NORTH AMERICA, INC.	ON	--

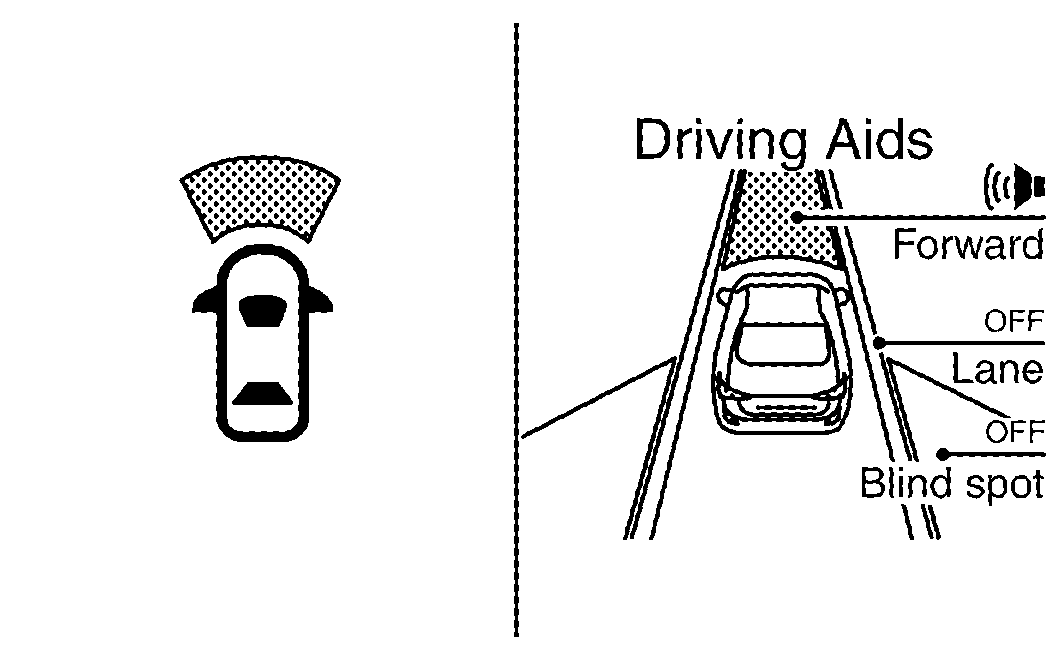

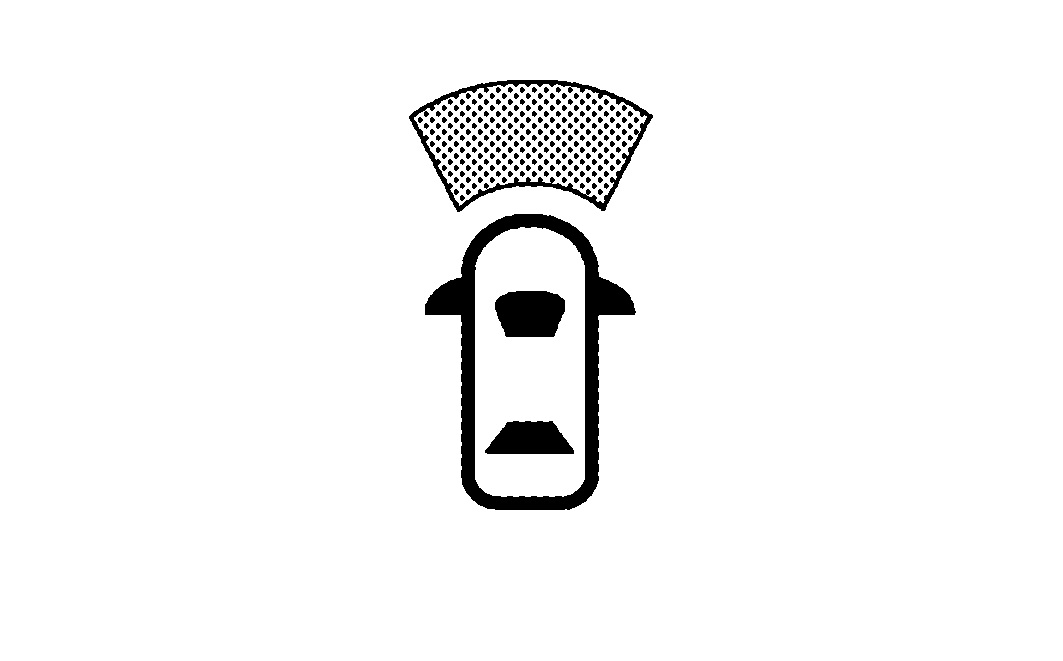

FEB/PFCW ON	System ON	Courtesy of NISSAN NORTH AMERICA, INC.	OFF	--

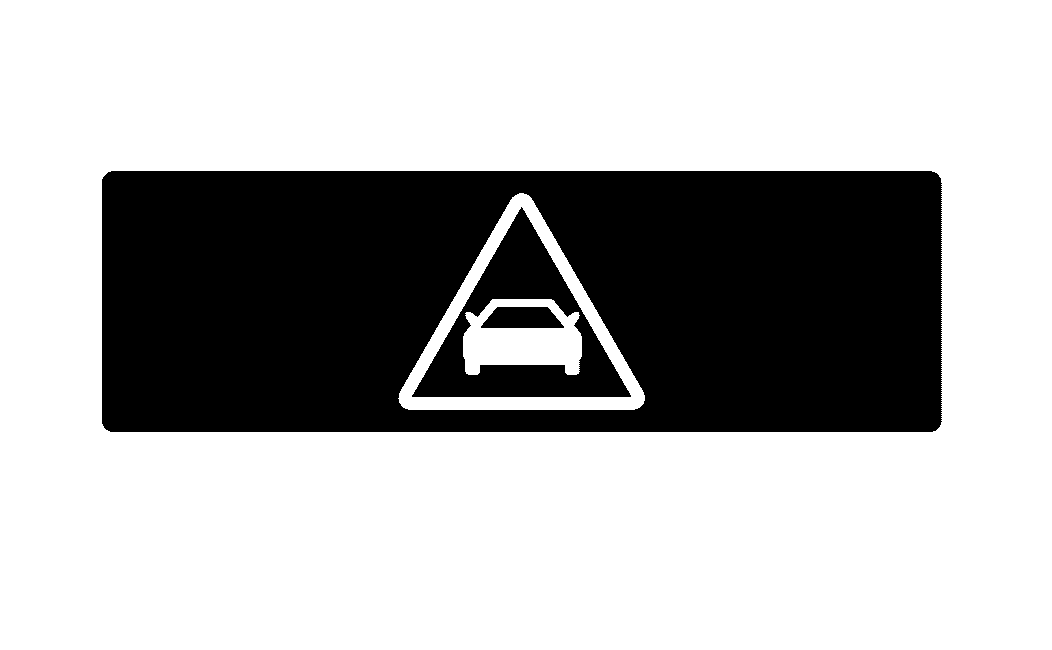

FEB/PFCW system malfunction	The FEB/PFCW system is automatically canceled. NOTE: The system operates if the ignition switch is turned OFF=>ON after the condition improves	Courtesy of NISSAN NORTH AMERICA, INC.	ON	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.
		Malfunction See Owner's Manual

Warning Operation

Condition	Action	Display on combination meter	FEB warning lamp	Chime

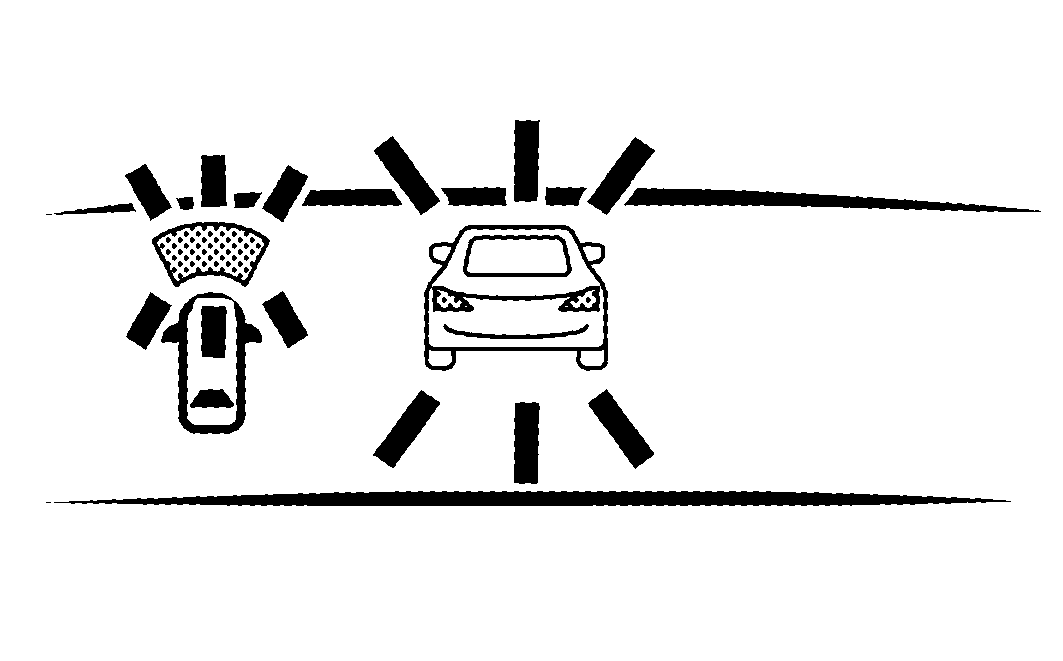

There is a possibility of a collision with the vehicle ahead	Accelerator pedal actuation Operates brake (Partial)	Courtesy of NISSAN NORTH AMERICA, INC.	OFF	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.
An obstacle ahead is avoided due to the system applying braking.	Operates brake (Emergency)	Courtesy of NISSAN NORTH AMERICA, INC.	OFF	Continuous beeps
		Courtesy of NISSAN NORTH AMERICA, INC.

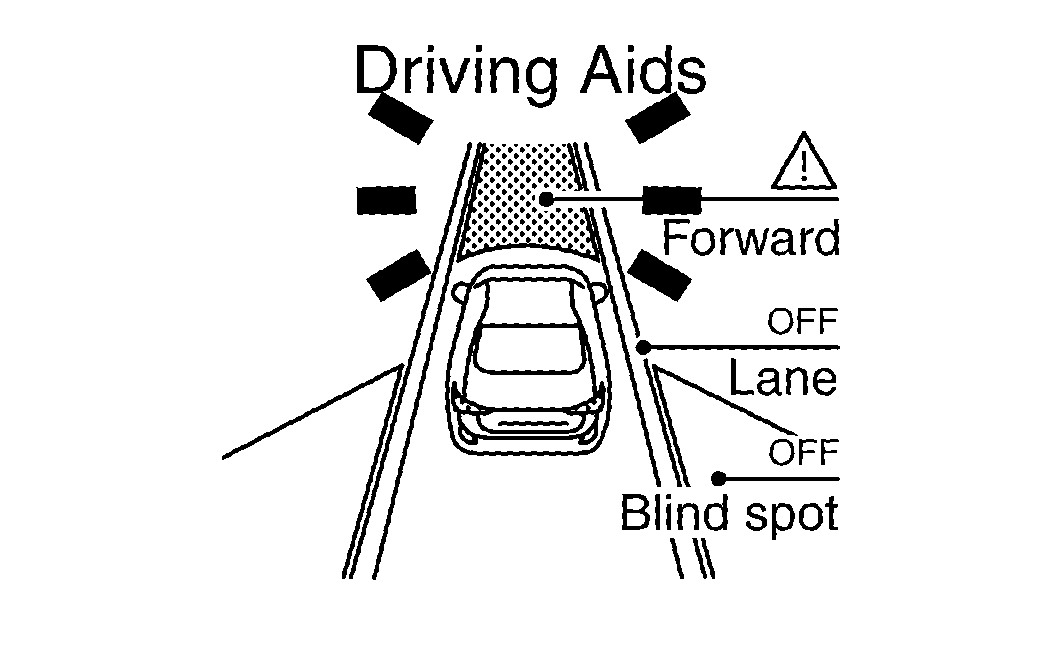

Dirt around the ICC sensor	The FEB system is automatically canceled. NOTE: The system operates if the ignition switch is turned OFF=>ON after the condition improves	Courtesy of NISSAN NORTH AMERICA, INC.	ON	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.
		Unavailable Front Radar Obstruction
Accelerator pedal high temperature	The FEB system is automatically canceled. NOTE: The system operates if the ignition switch is turned OFF=>ON after the condition improves	Courtesy of NISSAN NORTH AMERICA, INC.	ON	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.
		Unavailable High Accelerator Temperature
