VR30DDTT engine

1. Turn ignition switch OFF.
2. Remove cooling fan relay.

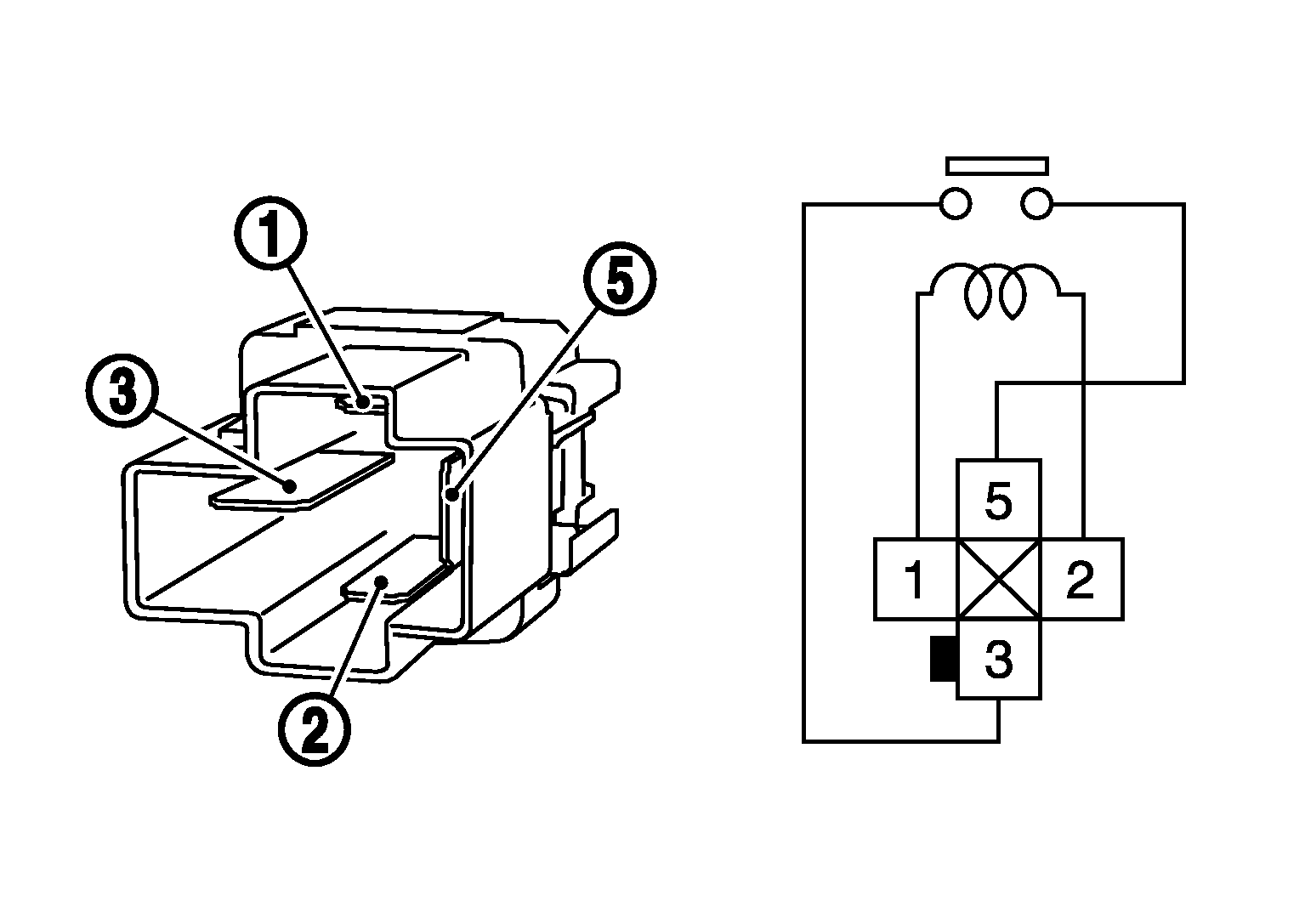

3. Check the continuity between cooling fan relay terminals under the following conditions.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Terminals	Conditions	Continuity
   and	12 V direct current supply between terminals and	Existed
   	No current supply	Not existed

Is the inspection result normal?

YES

INSPECTION END

NO

Replace malfunctioning cooling fan relay.
