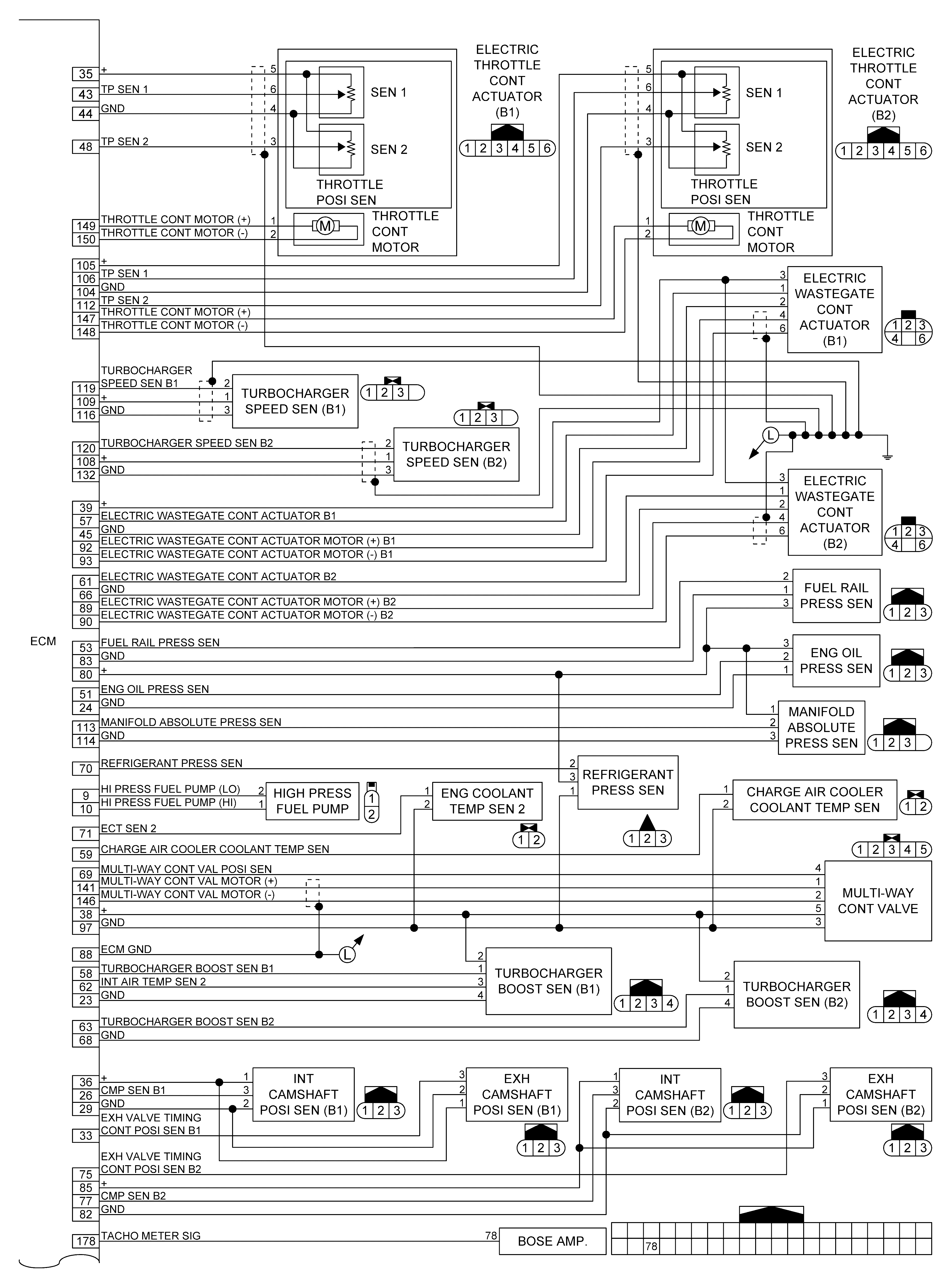

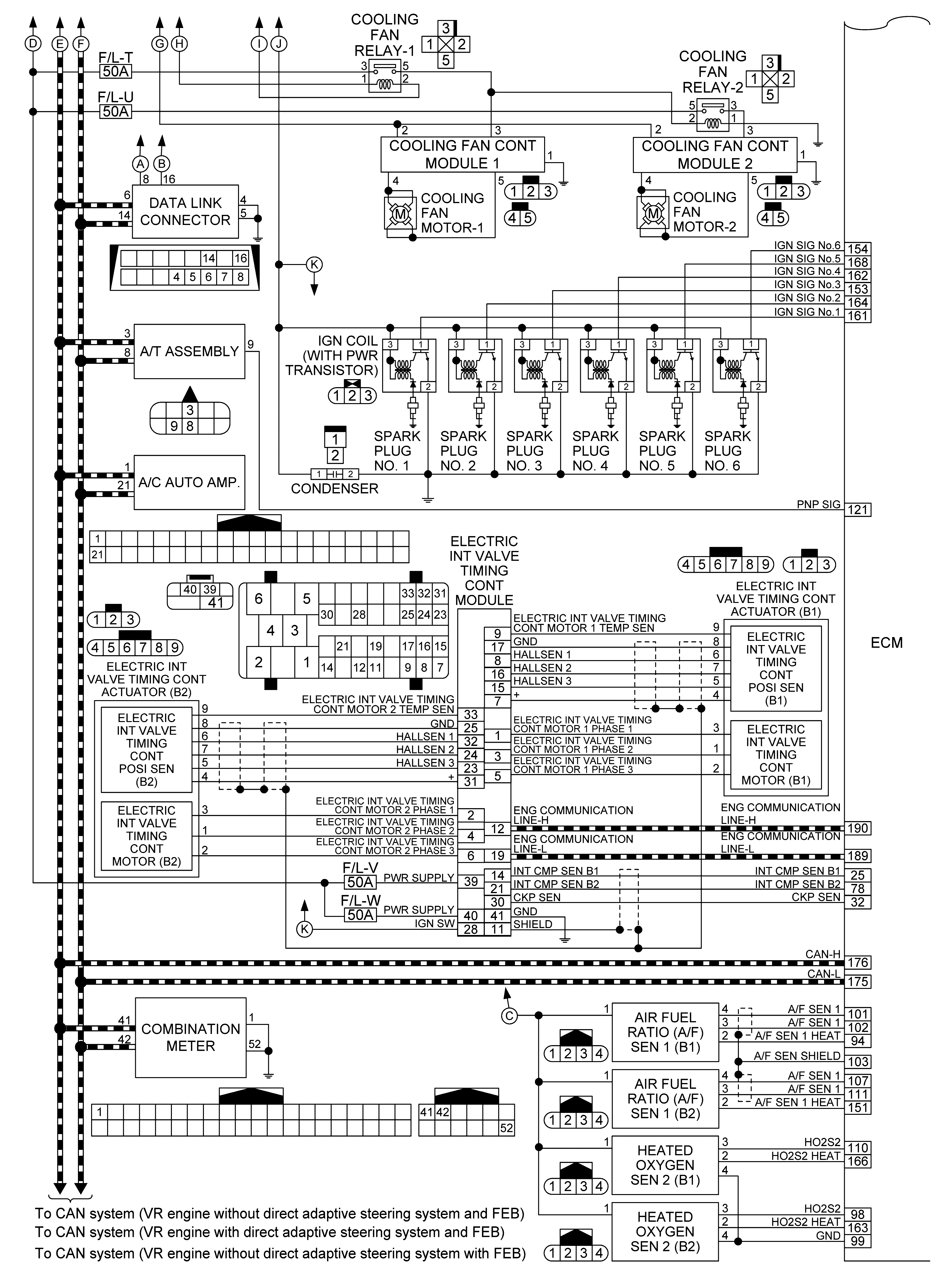

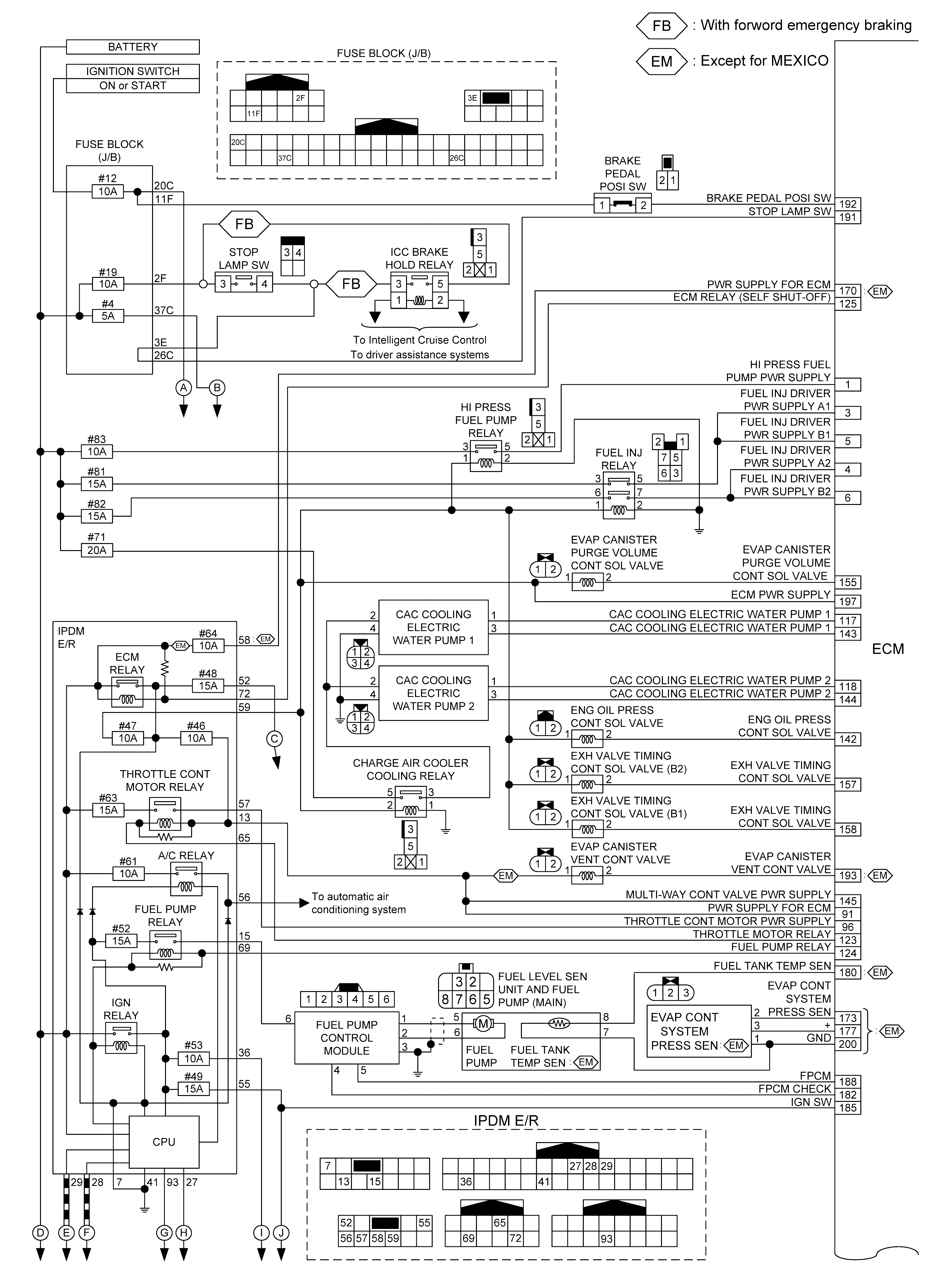

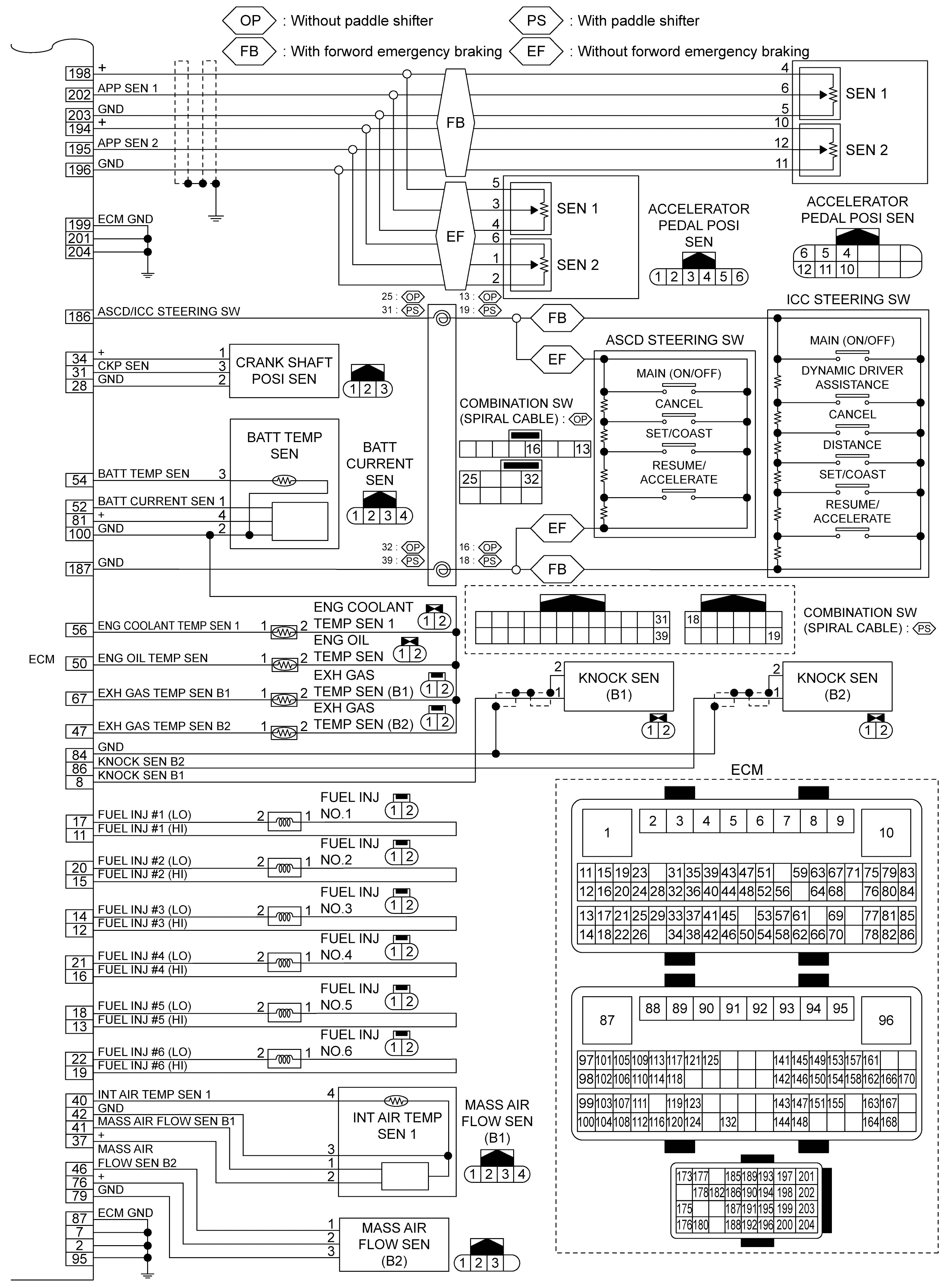

Turbo high pressure models

GNSILL0273394-394Courtesy of NISSAN NORTH AMERICA, INC.
GNSJSBIB0184GB-184Courtesy of NISSAN NORTH AMERICA, INC.
GNSJSBIB1396GB-396Courtesy of NISSAN NORTH AMERICA, INC.
GNSILL0129442-442Courtesy of NISSAN NORTH AMERICA, INC.

*: Exhaust gas temperature sensor is not applicable.
