Special Service Tools

The actual shapes of TechMate tools may differ from those of special service tools illustrated here.

Tool number

(TechMate No.)

Tool name

Description

ST25051001

(J-25695-1)

Oil pressure gauge

Courtesy of NISSAN NORTH AMERICA, INC.

Measuring oil pressure

Maximum measuring range: 2, 452 kPa (25 kg/cm ² , 356 psi)

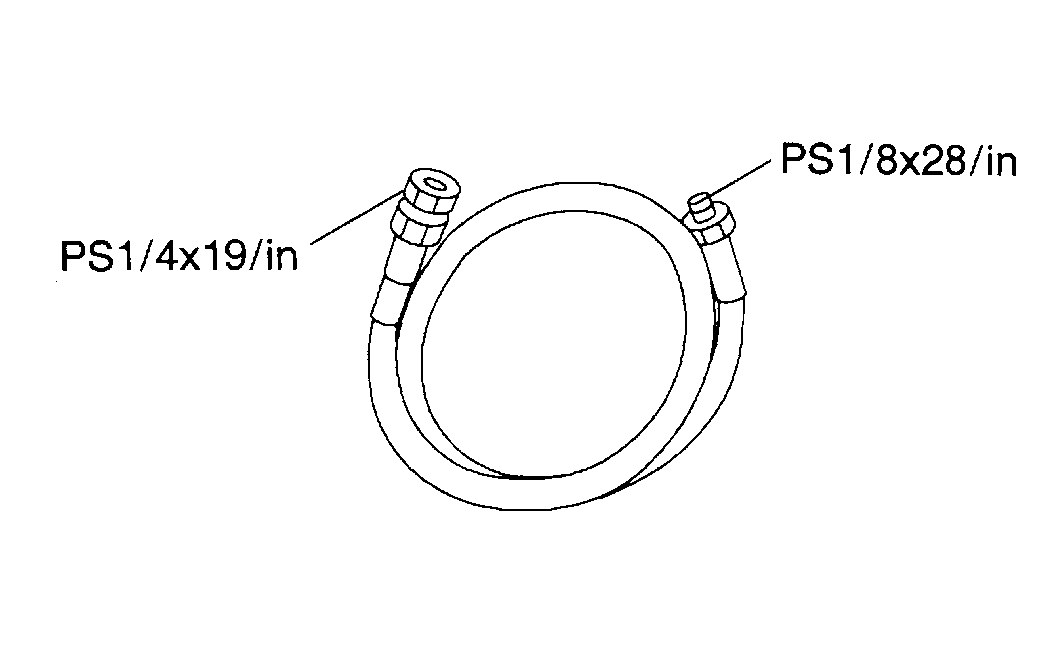

ST25052000

(J-25695-2)

Hose

Courtesy of NISSAN NORTH AMERICA, INC.

Adapting oil pressure gauge to oil pan (upper)

KV10115801

(J-38956)

Oil filter wrench

Courtesy of NISSAN NORTH AMERICA, INC.

Removing and installing oil filter

a: 64.3 mm (2.531 in)
