System Diagram

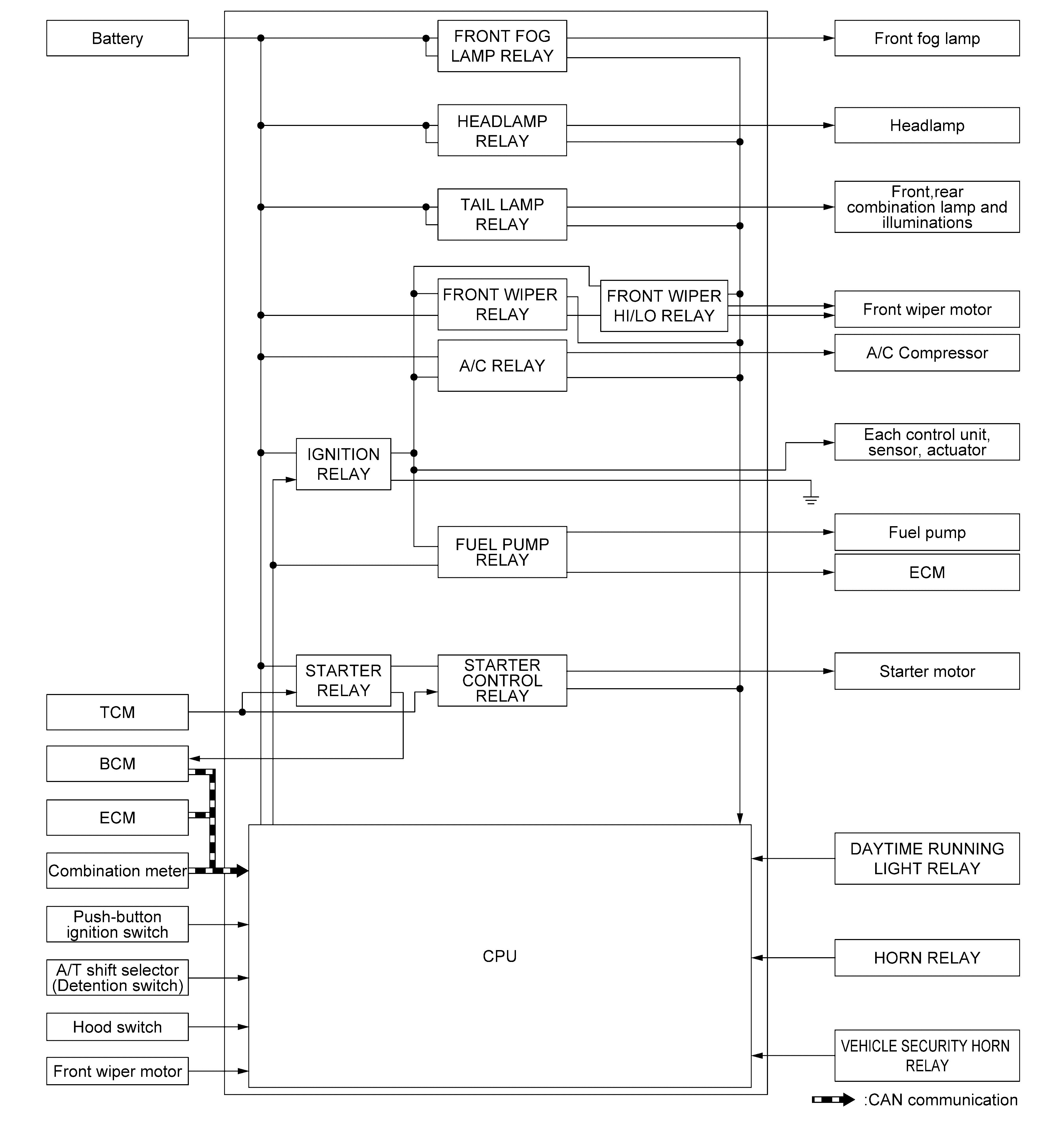

VR30DDTT Engine Models

GNSILL0113761-761

Courtesy of NISSAN NORTH AMERICA, INC.

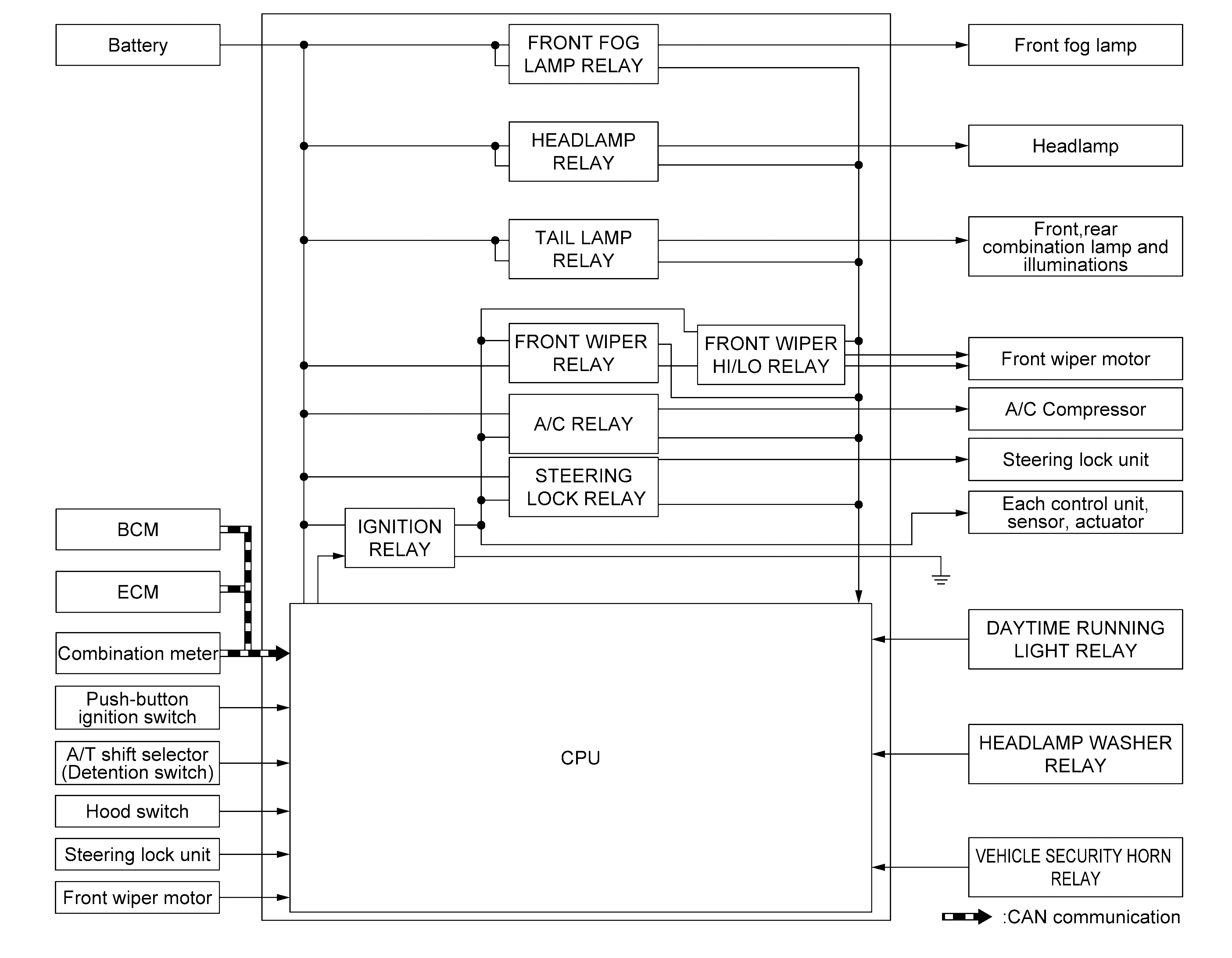

2.0L Turbo Gasoline Engine Models

GNSILL0113762-762

Courtesy of NISSAN NORTH AMERICA, INC.
