IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E14)

Connector Types:  NS12FBR-CS

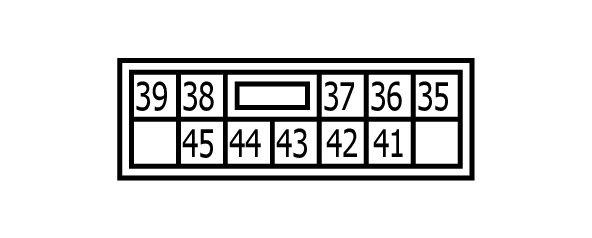

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
35	W	-
36	V	-
37	L	-
38	Y	-
39	L/B	-
41	L/G	-
42	L	-
43	LG	-
44	L/W	-
45	Y/R	-
