Driver Air Bag Module Connector End View (M301)

Connector Types:  ACA02FY-2V

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

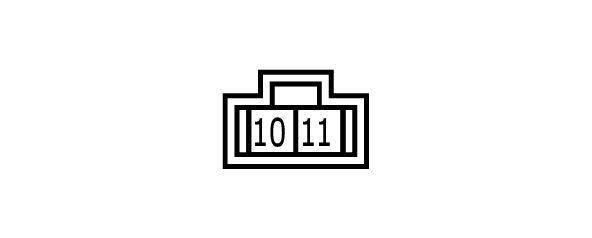

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
10	-	-
11	-	-
