Display Control Unit Connector End View (M415)

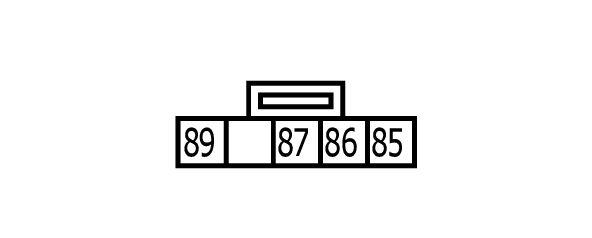

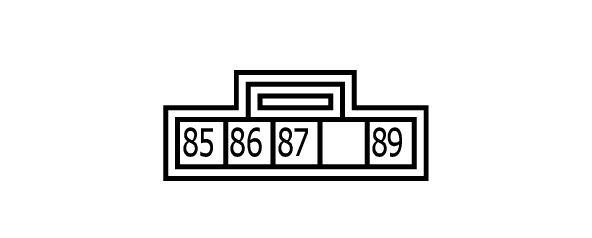

Connector Types:
TK05FW
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 85 |
- |
USB V BUS SIGNAL |
| 86 |
- |
USB D- SIGNAL |
| 87 |
- |
USB D+ SIGNAL |
| 89 |
- |
SHIELD |
