Battery Current Sensor Connector End View (E63)

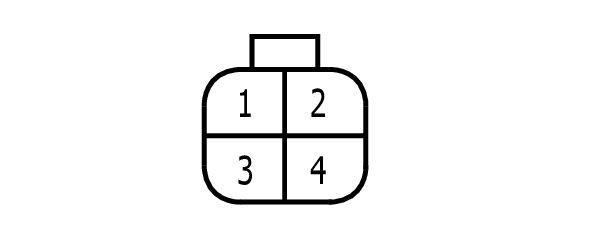

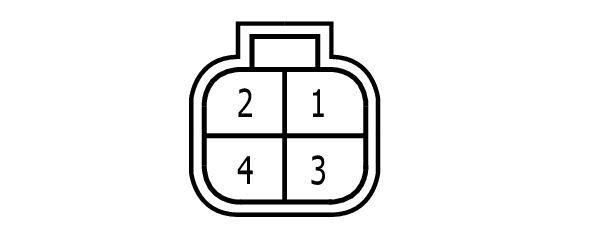

Connector Types:
SAZ04FGY
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
G |
BATTERY TEMPERATURE SENSOR |
| 2 |
SB |
SENSOR POWER SUPPLY |
| 3 |
V |
BATTERY CURRENT SENSOR |
| 4 |
R |
SENSOR GROUND |
