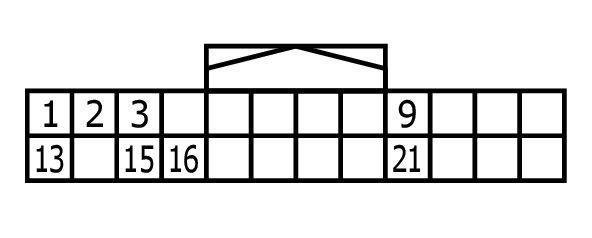

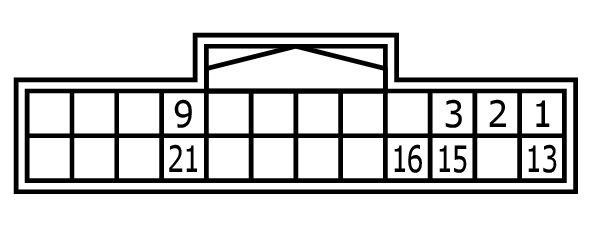

ADAS Control Unit 2 Connector End View (B54)
Connector Types:
TH24FB-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
BR |
SPEAKER OUT (+) |
| 2 |
B |
GROUND |
| 3 |
Y |
CHASSIS COMMUNICATION-L |
| 9 |
L/O |
ITS COMMUNICATION-H |
| 13 |
P |
SPEAKER OUT (-) |
| 15 |
L |
CHASSIS COMMUNICATION-H |
| 16 |
W/G |
IGNITION |
| 21 |
Y/R |
ITS COMMUNICATION-L |
