Indicator And Warning Lamp

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

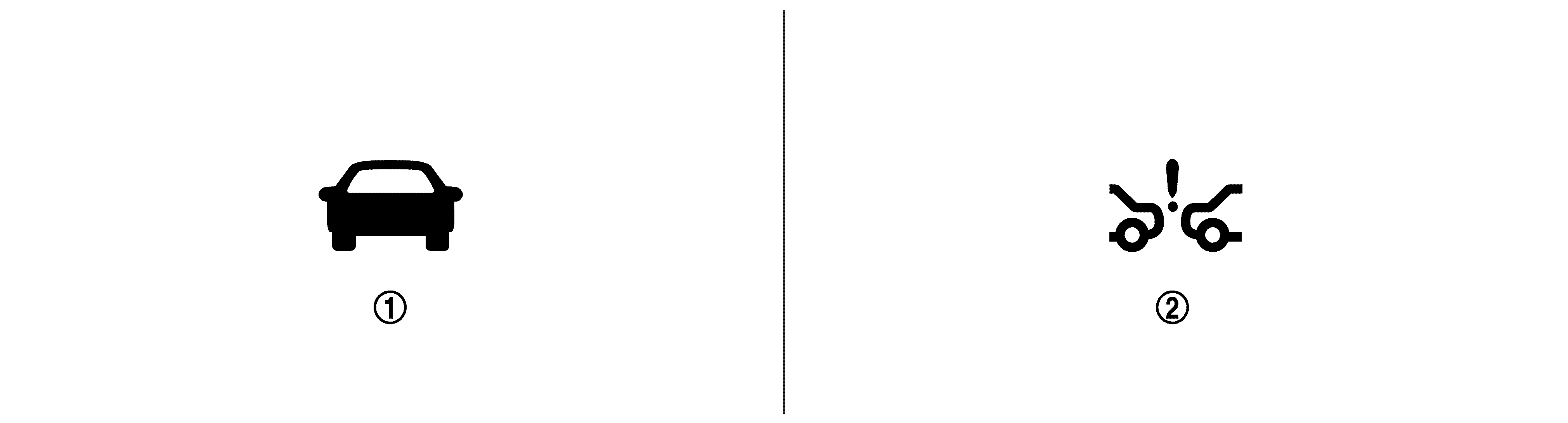

No.	Switch name	Description
	Vehicle ahead detection indicator	Vehicle ahead detection indicator blinks when the Intelligent Forward Collision Warning system is activated.
	Automatic Emergency Braking warning lamp	Automatic Emergency Braking warning lamp turns ON when: Intelligent Forward Collision Warning system has a malfunction When the ICC sensor area is covered with dirt or is obstructed Automatic Emergency Braking warning lamp blinks when 4WD shift switch is set in a position other than AUTO NOTE: Shared with Automatic Emergency Braking system
