Exploded View

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

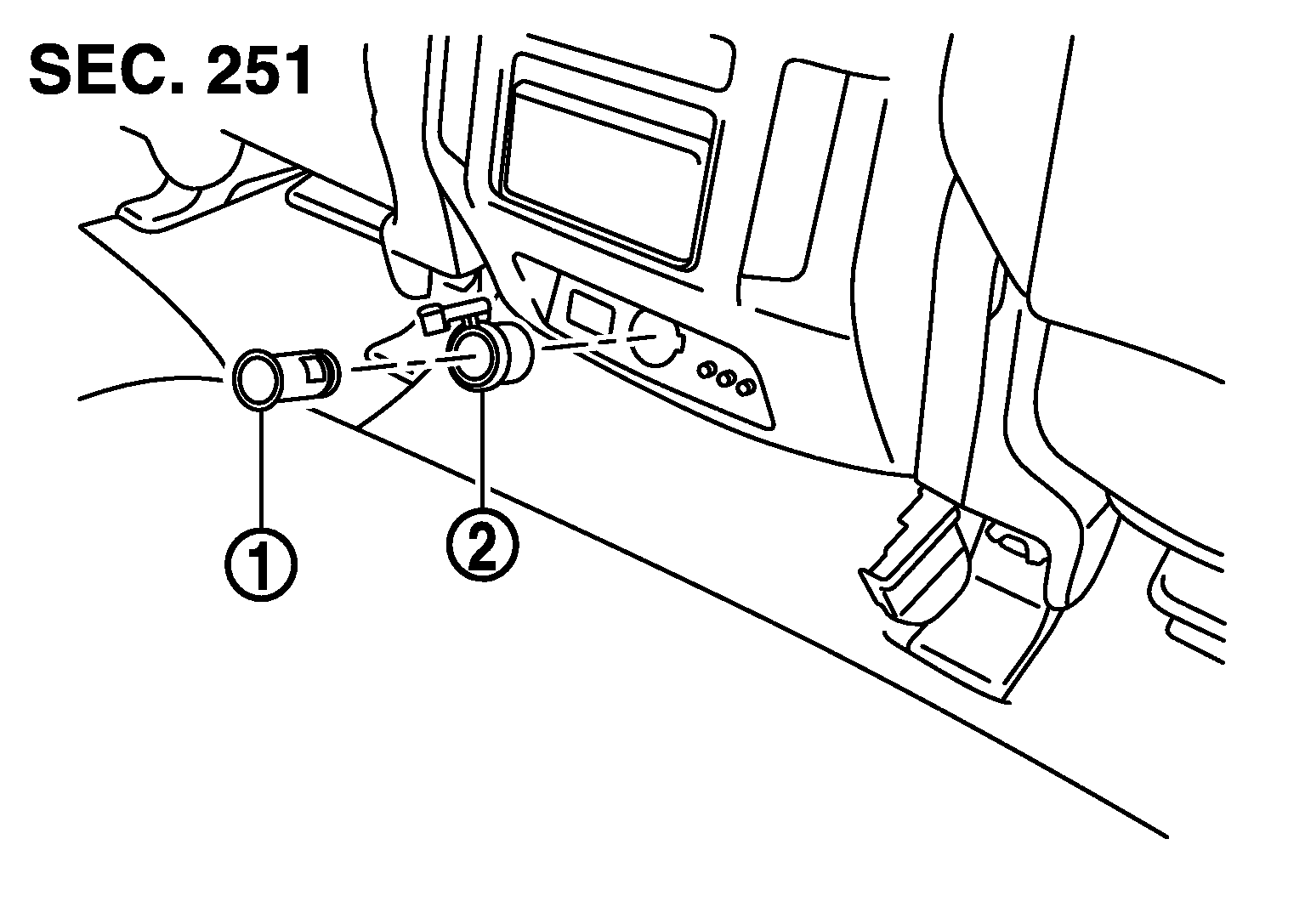

GNSJSMIA0263Z-263Courtesy of NISSAN NORTH AMERICA, INC.

1

: Inner socket

2

: Ring
