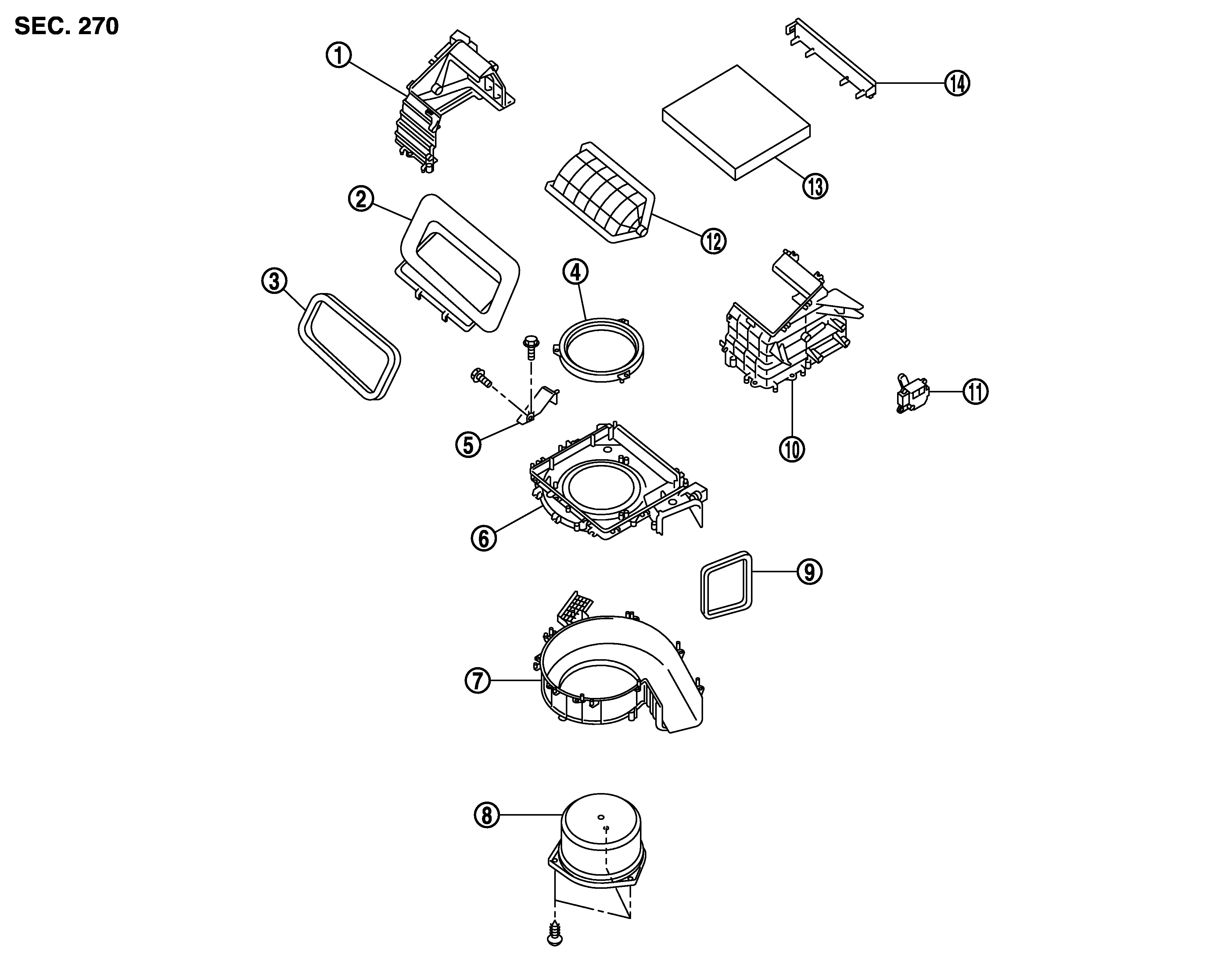

Exploded View: Disassembly
WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Shutter box case RH
|
2.
|
Shutter box upper case
|
3.
|
Packing
|
|
4.
|
Bellmouth ring
|
5.
|
Blower unit bracket
|
6.
|
Intake upper case
|
|
7.
|
Intake lower case
|
8.
|
Blower motor assembly
|
9.
|
Packing
|
|
10.
|
Shutter box case LH
|
11.
|
Intake door motor
|
12.
|
Intake door
|
|
13.
|
Air conditioner filter
|
14.
|
Filter cover
|
