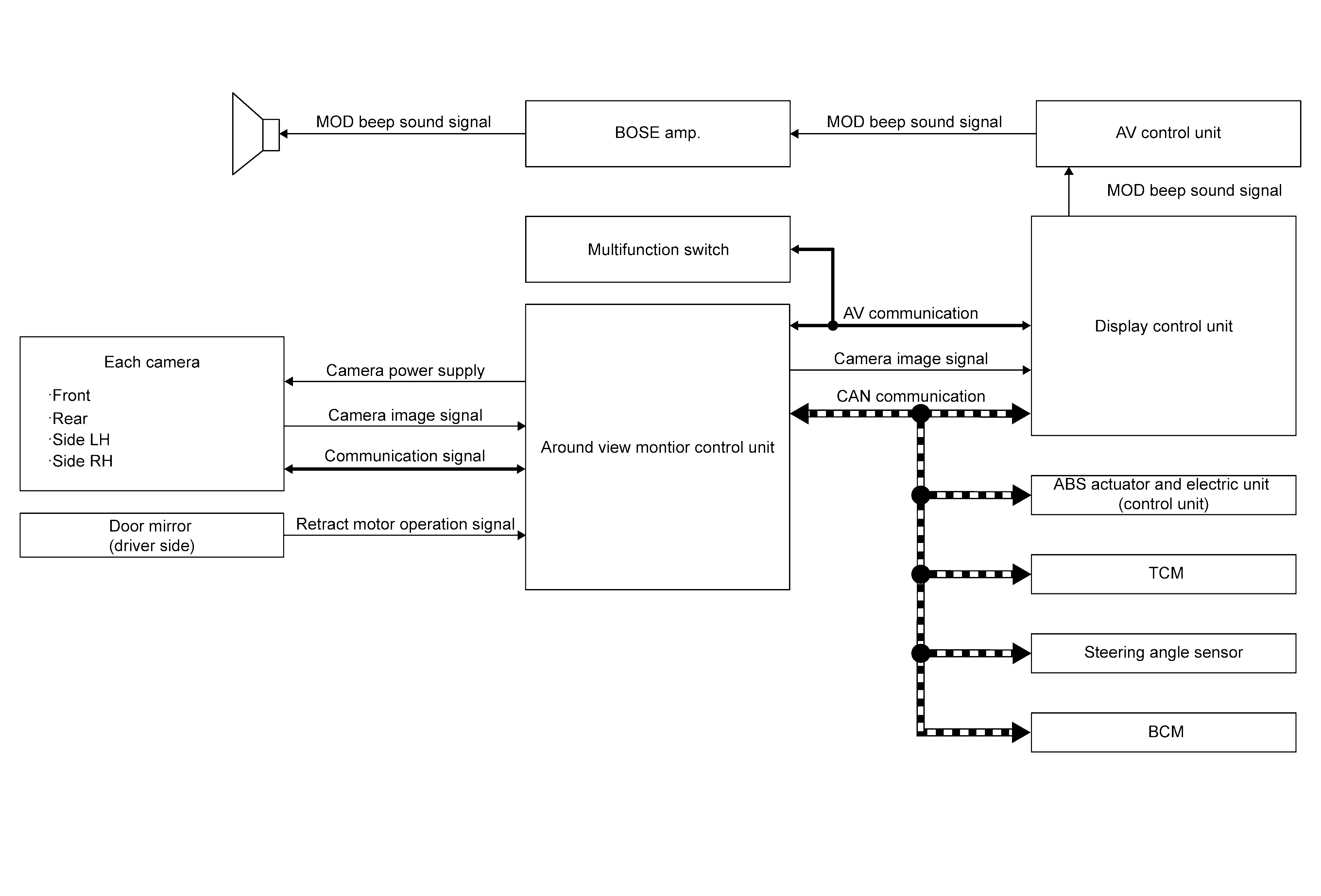

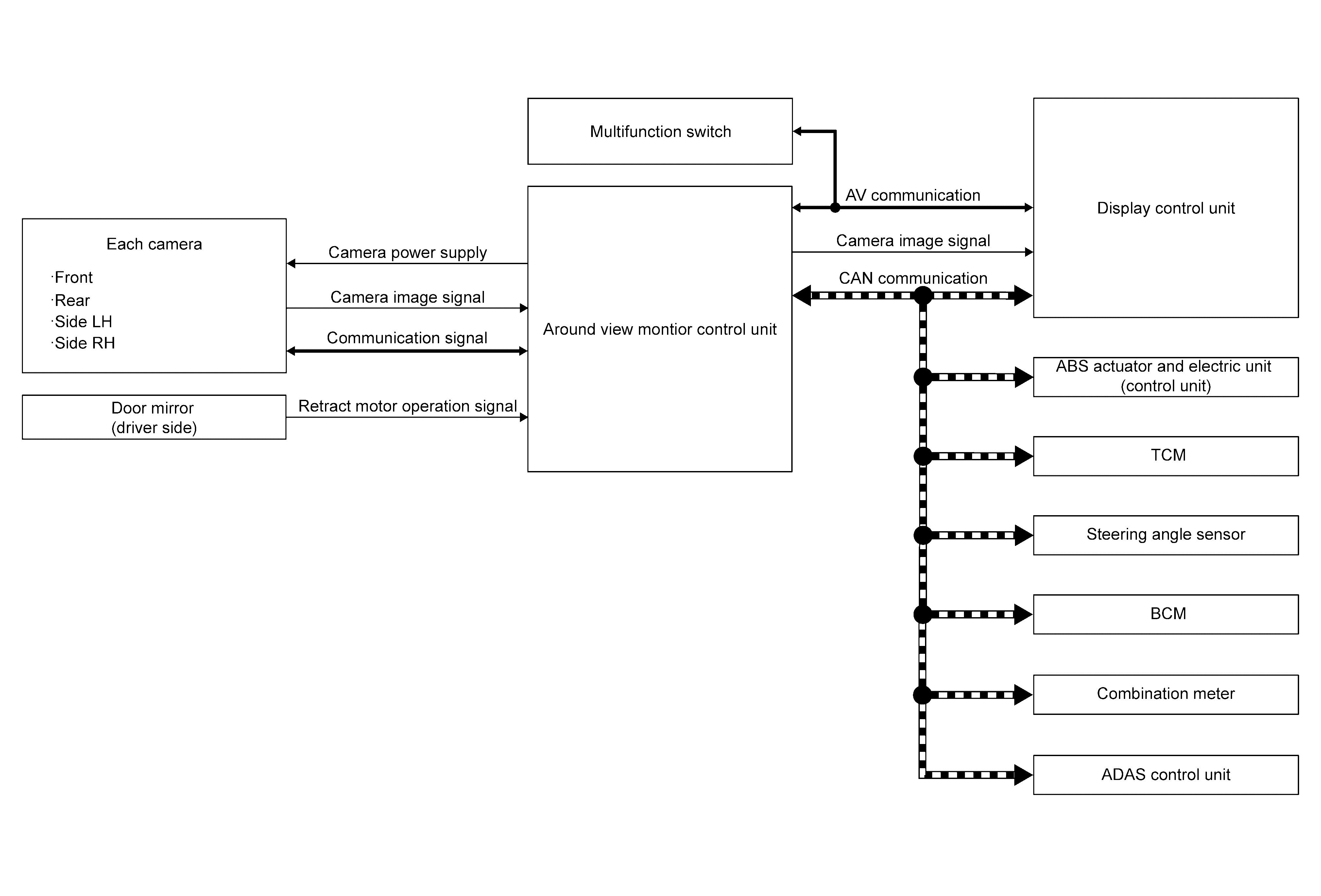

System Diagram
WARNING: This page is about a different car, the 2020 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
Around View Monitor Control Unit Input Signal (CAN Communication)
|
Transmit unit |
Signal name |
|
Steering angle sensor |
Steering angle sensor signal |
|
TCM |
Shift position signal |
|
ABS actuator and electric unit (control unit) |
Vehicle speed signal |
|
Rear LH wheel speed signal |
|
|
Rear RH wheel speed signal |
|
|
BCM |
Door switch signal |
Around View Monitor Control Unit Output Signal (CAN Communication)
WITH ICC
|
Transmit unit |
Signal name |
|
Combination meter (Via ADAS control unit) |
MOD beep sound output request signal |
Without ICC
|
Transmit unit |
Signal name |
|
Display control unit (Via sonar control unit) |
MOD beep sound output request signal |
