Components Location

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

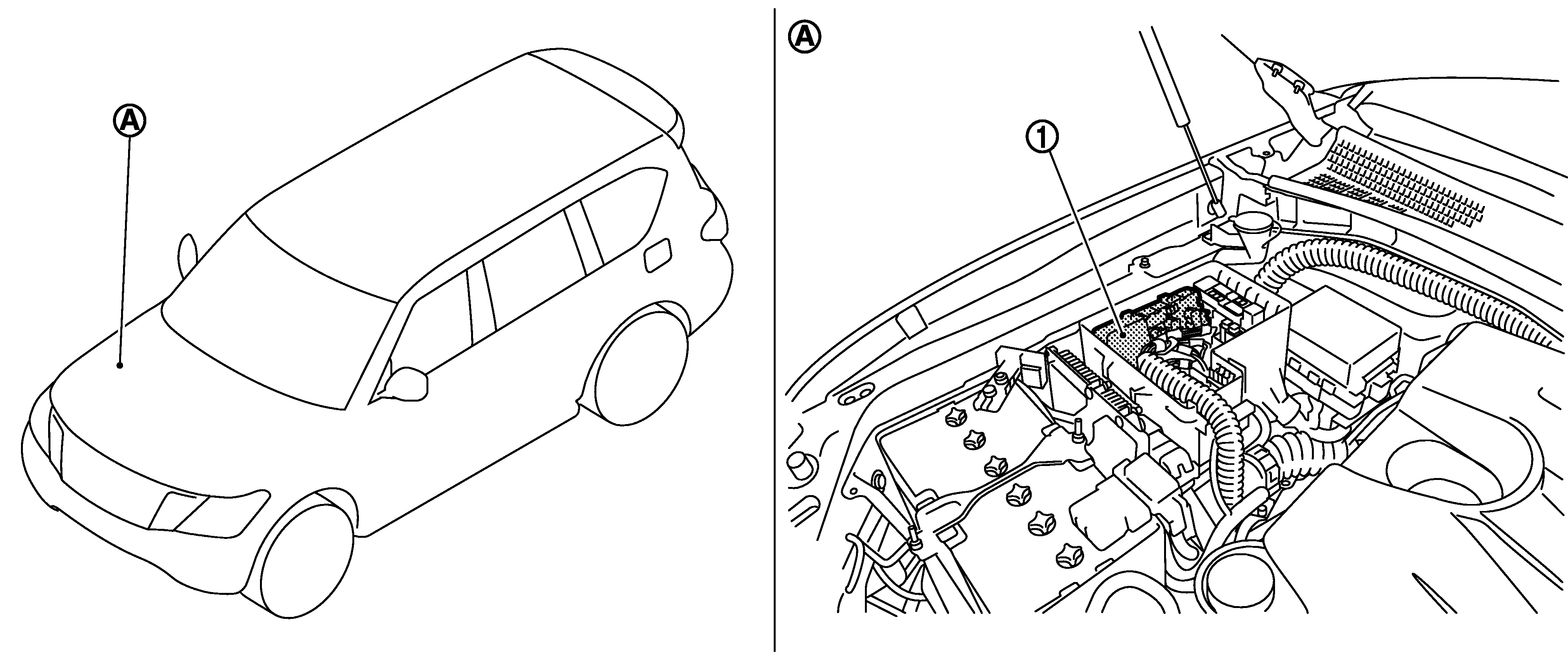

GNSJMMIA0330Z-330Courtesy of NISSAN NORTH AMERICA, INC.

1.

IPDM E/R

A.

Engine room (RH)
