Exploded View

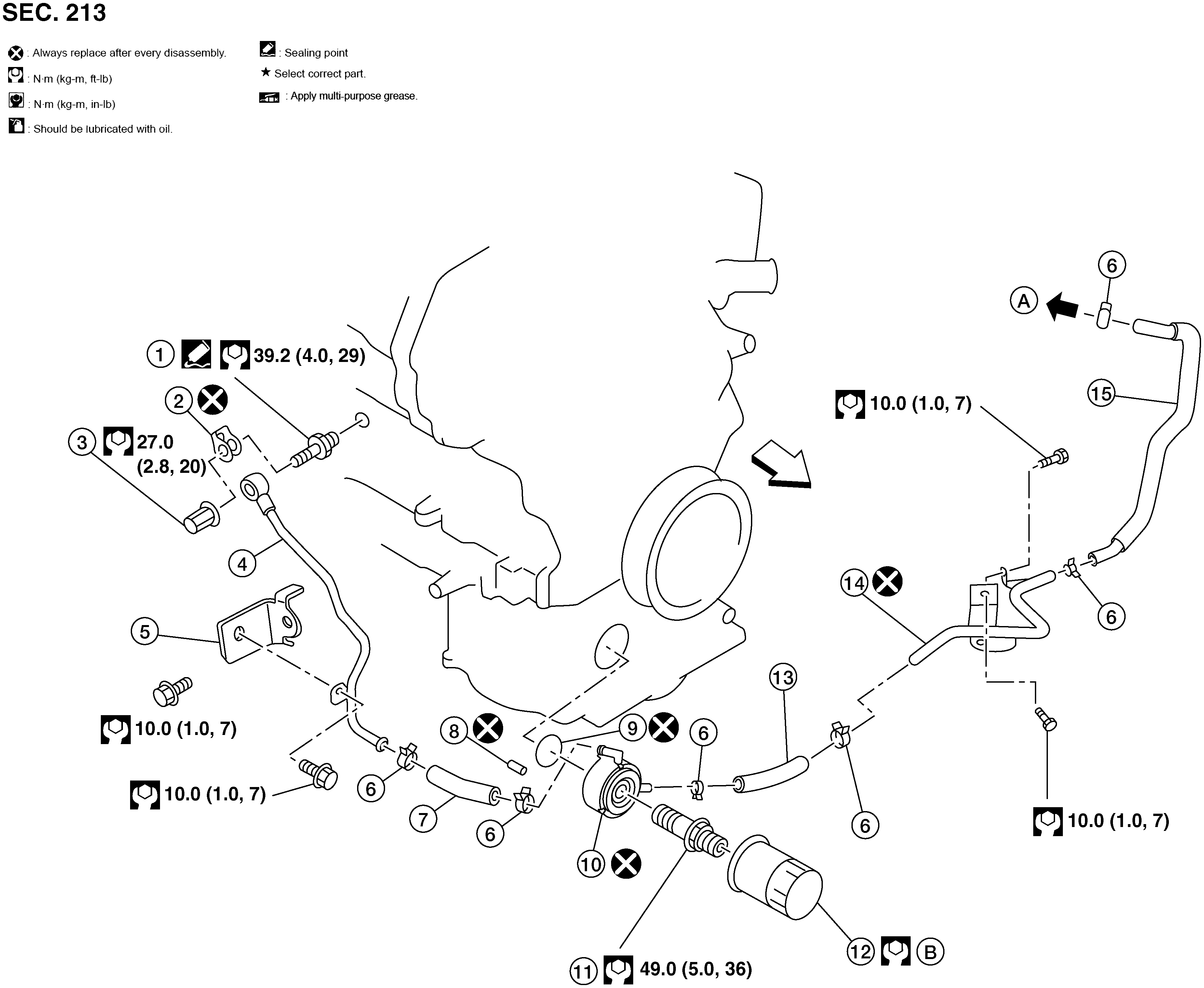

Fig 1: Oil Cooler Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Connector bolt	2.	Copper gasket	3.	Water drain plug
4.	Water pipe	5.	Bracket	6.	Clamp
7.	Water hose	8.	Relief valve	9.	Oil cooler O-Ring
10.	Oil cooler	11.	Connector bolt	12.	Oil filter
13.	Water hose	14.	Water pipe	15.	Water hose
A.	To water connector. Refer to Exploded View .	B.	Refer to Removal and Installation		Engine front
	Sealing point
