Exploded View

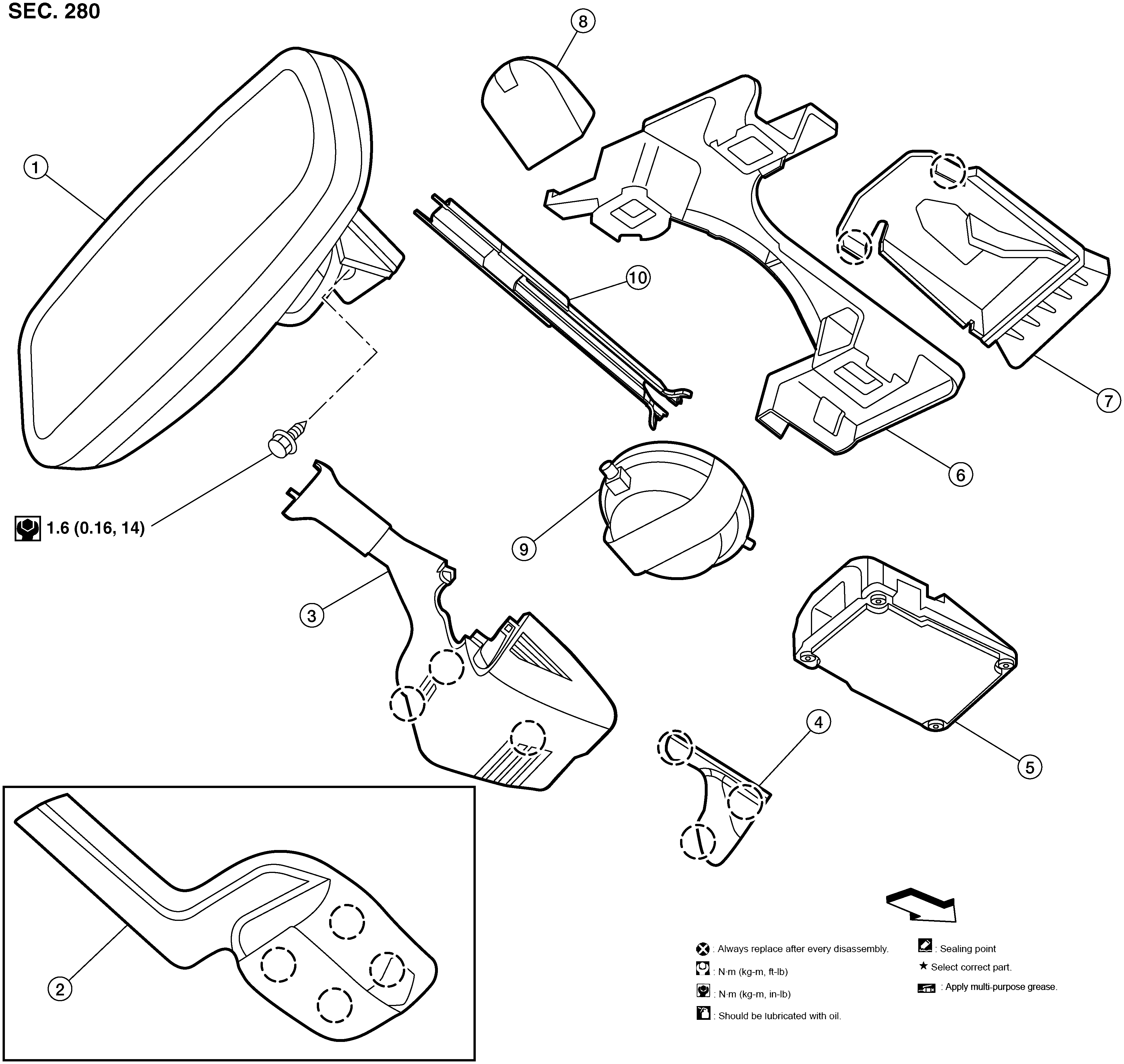

Fig 1: Inside Mirror Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Inside mirror	2.	Rain sensor cover (without lane departure warning)	3.	Lane camera cover [RH (with lane departure warning)]
4.	Lane camera cover [LH (with lane departure warning)]	5.	Lane camera (if equipped)	6.	Lane camera cover bracket (if equipped)
7.	Lane camera bracket (if equipped)	8.	Mirror base	9.	Rain sensor (if equipped)
10.	Inside mirror finisher (if equipped)		Pawl		Front
