Component Parts Location

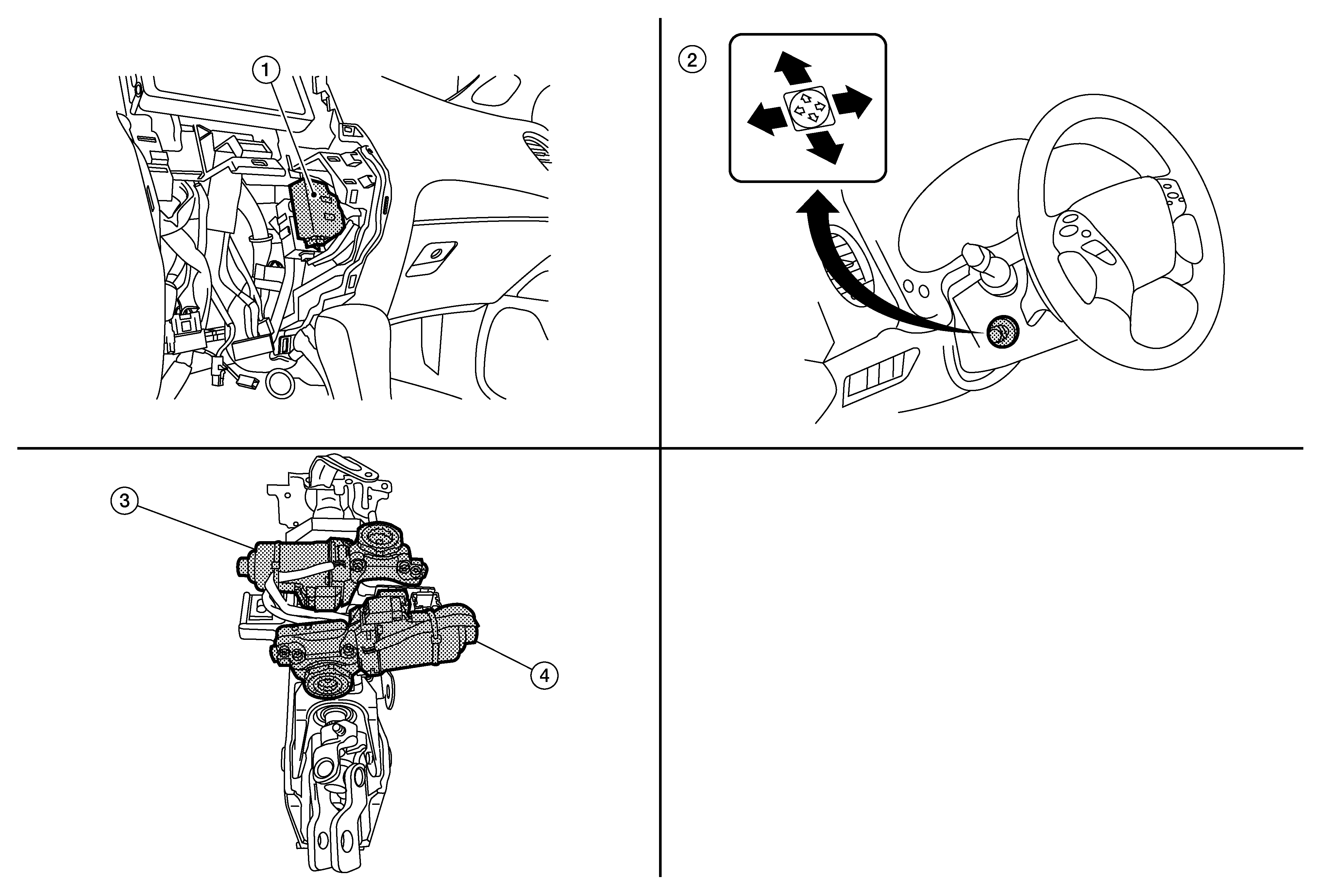

GNSAWGIA0030Z-030Courtesy of NISSAN NORTH AMERICA, INC.

1.

Automatic drive positioner control unit

(view with cluster lid C removed)

2.

ADP steering switch

3.

Tilt motor

(view with steering column assembly removed)

4.

Telescopic motor

(view with steering column assembly removed)
