Transfer Cover: Disassembly

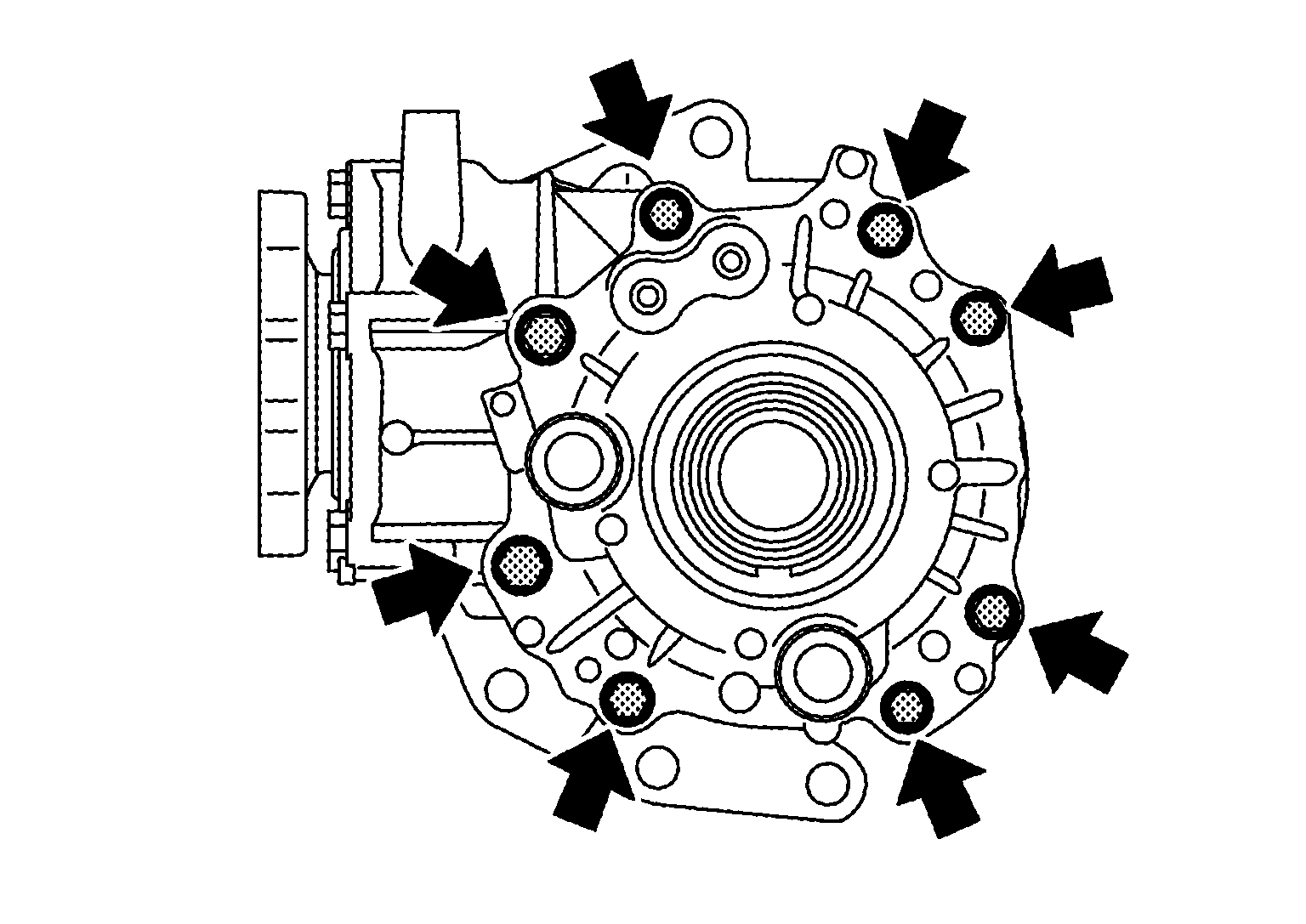

  1. Remove transfer cover bolts (SYMBOL ).
    GNSILL0188978-978Courtesy of NISSAN NORTH AMERICA, INC.

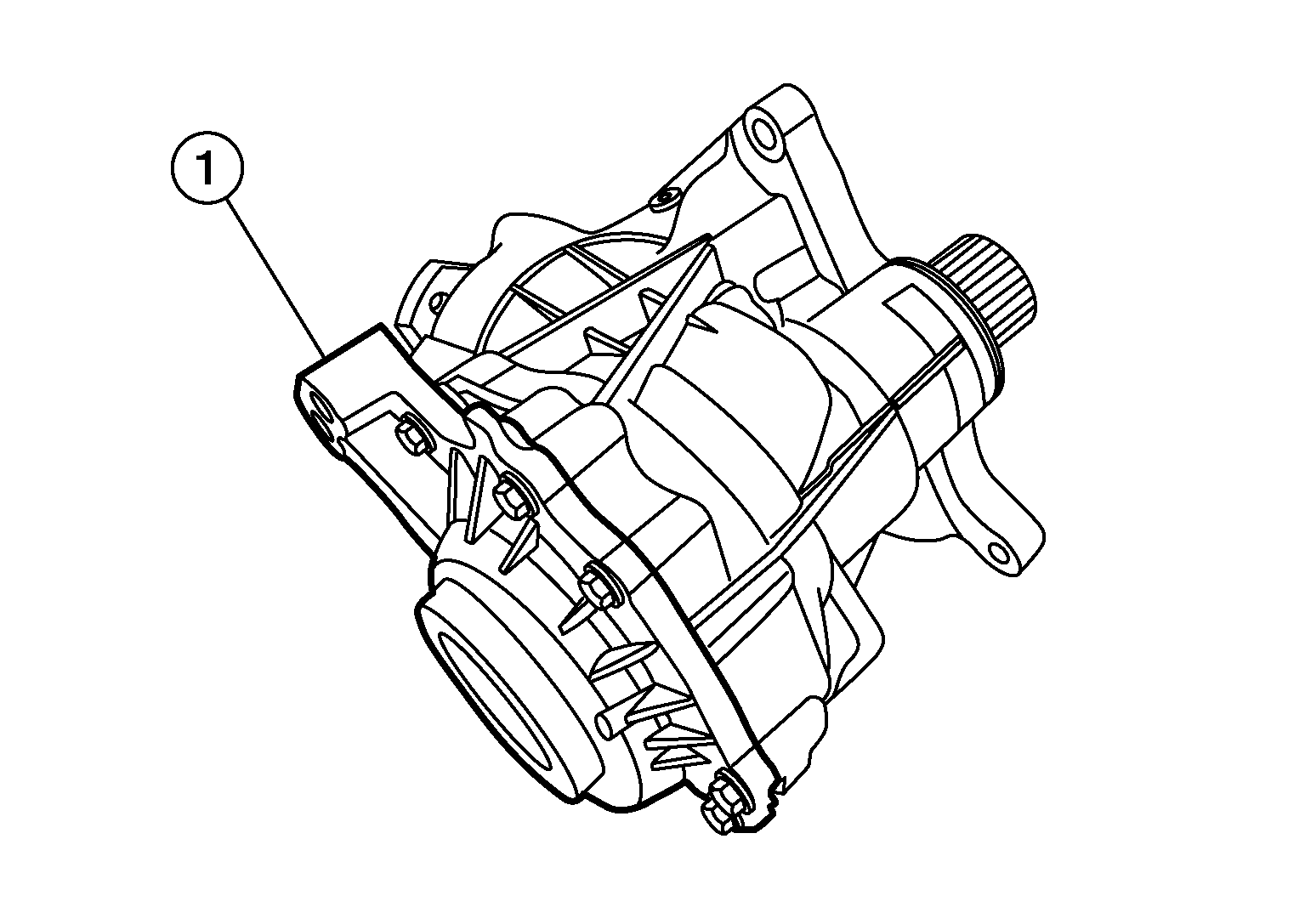

  2. Lightly tap transfer cover (1) with a suitable tool to remove transfer cover.
    GNSALDIA0446Z-446Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove O-ring from transfer cover.
    CAUTION:
    • Do not use a tool.
    • Do not damage transfer cover.

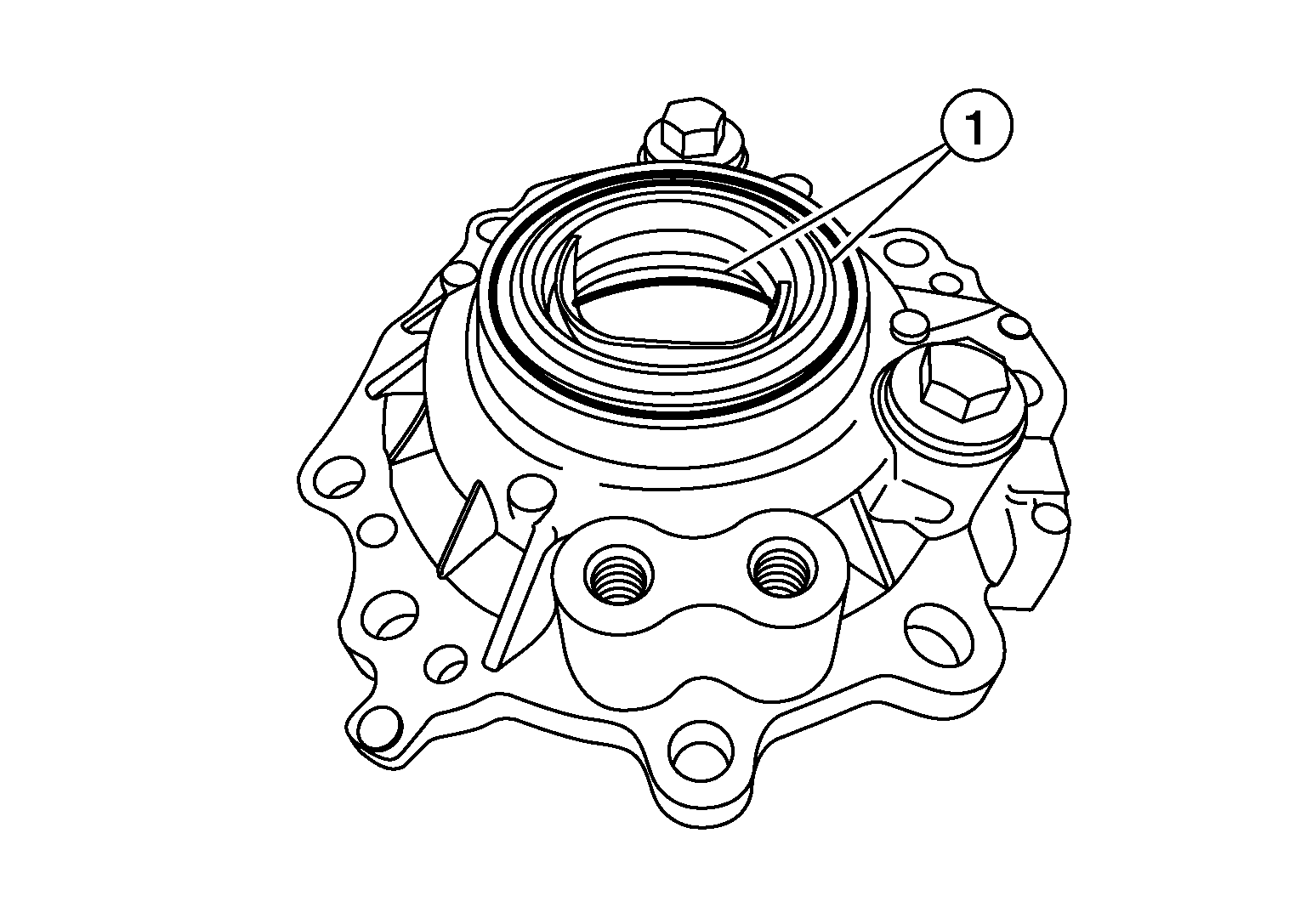

  4. Lightly tap the metal part of transfer cover oil seals (1) with punch from back side of transfer cover to remove transfer cover oil seals.
    GNSDB113488Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not damage the transfer cover.

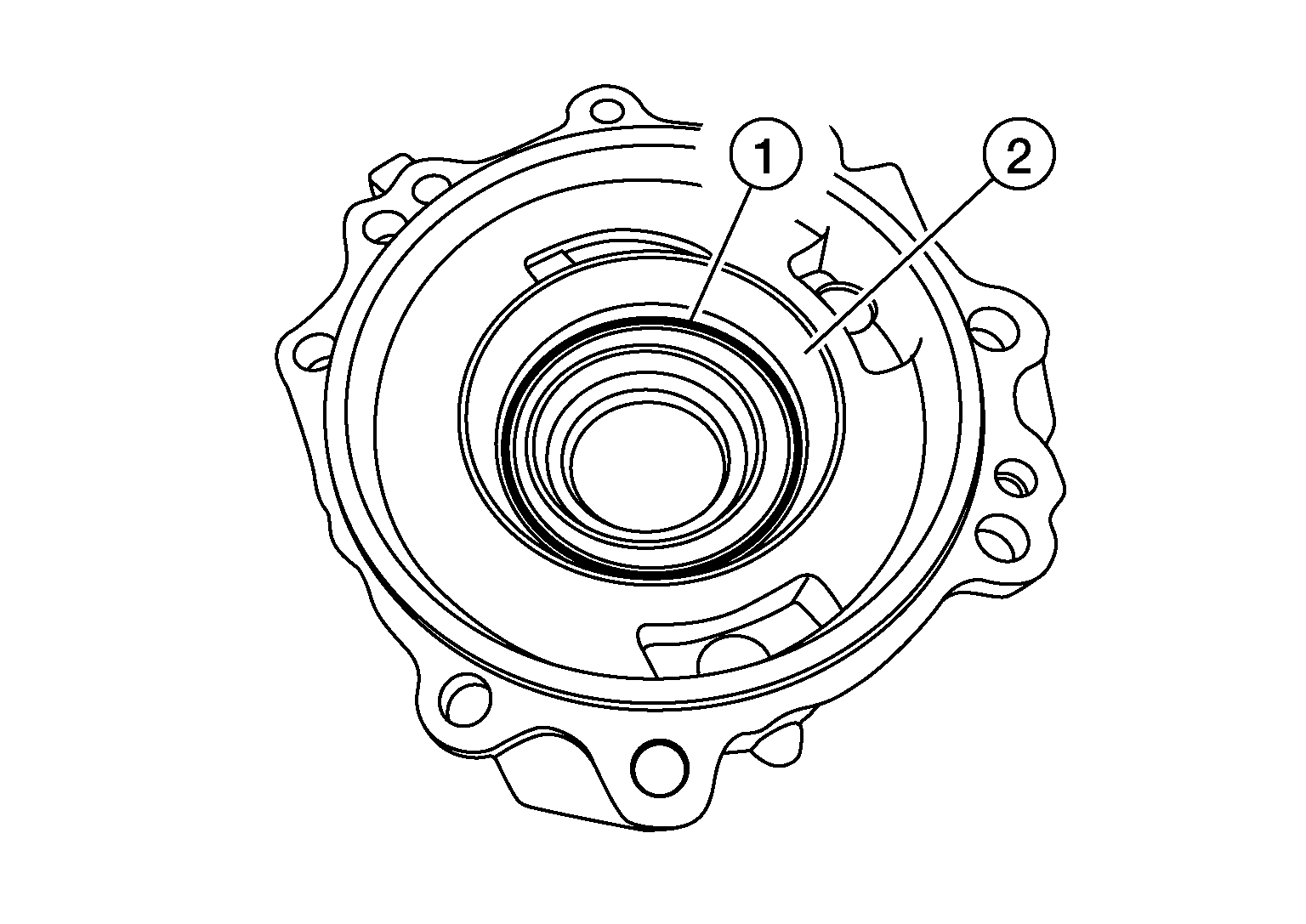

  5. Remove the ring gear bearing adjusting shim (transfer cover side) (1) and ring gear bearing race (transfer cover side) (2) using drift (commercial service tool).
    GNSDB111743Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove drain plug and gasket.
  7. Remove filler plug and gasket.
  8. Perform inspection after disassembly. Refer to Inspection .
