Component Location

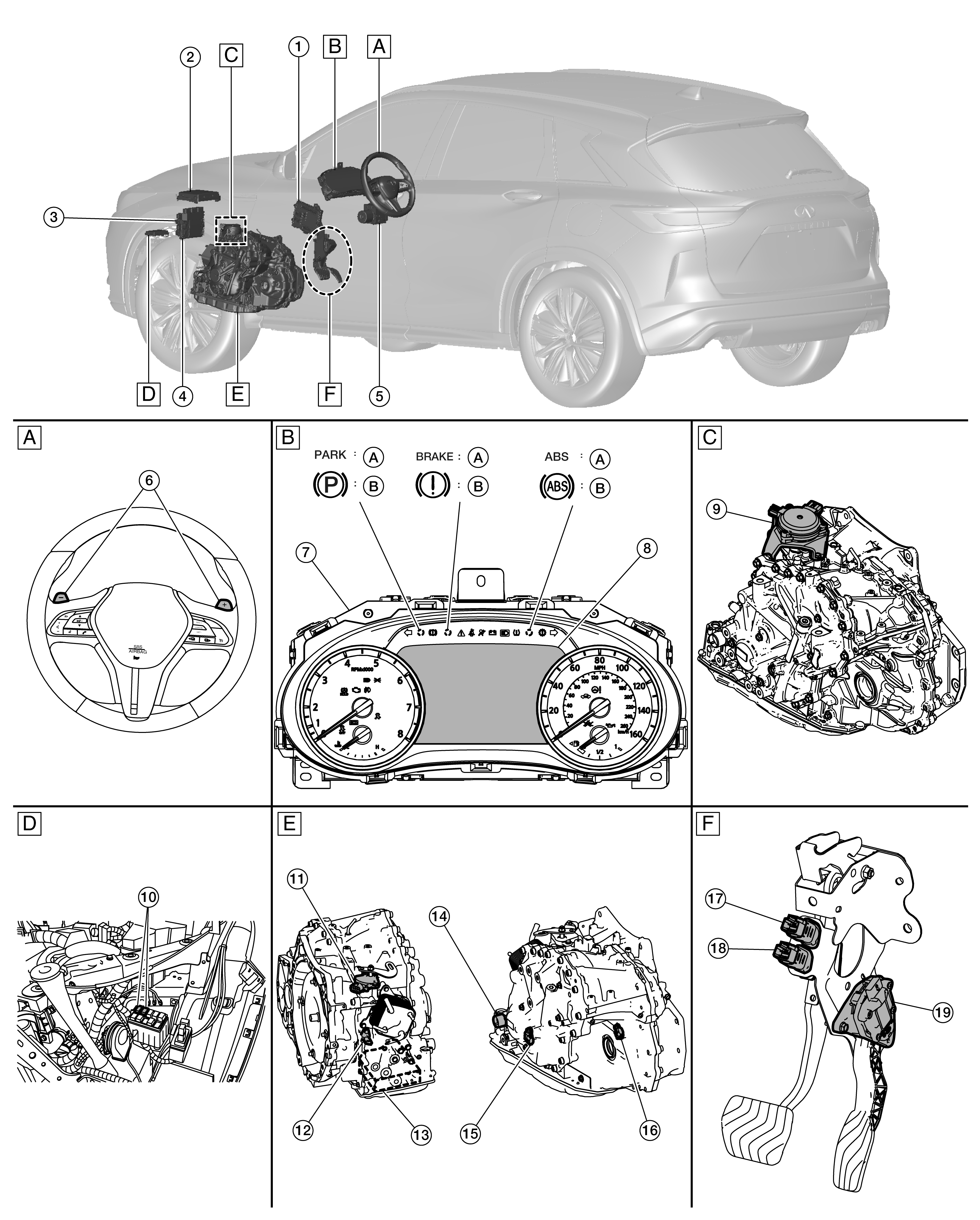

Fig 1: VEHICLE SIDE

GNSALDIA0087Z-087

Courtesy of NISSAN NORTH AMERICA, INC.

	Refer to Component Location .		Refer to Removal and Installation .		TCM
	Refer to Component Location .		ABS actuator and electronic unit (control unit) Refer to Component Location .		Paddle shifter
	Refer to Removal and Installation .		Shift position indicator		Electric shift actuator
	Shift actuator relays (A and B)		Transmission range switch		Input speed sensor
	Control valve		CVT unit connector		Primary speed sensor
	Output speed sensor		Brake pedal position switch		Stop lamp switch
	Accelerator pedal position switch
	Steering wheel		Instrument panel LH		Top of transaxle assembly
	Left front of vehicle		Side of transaxle assembly		Brake pedal periphery

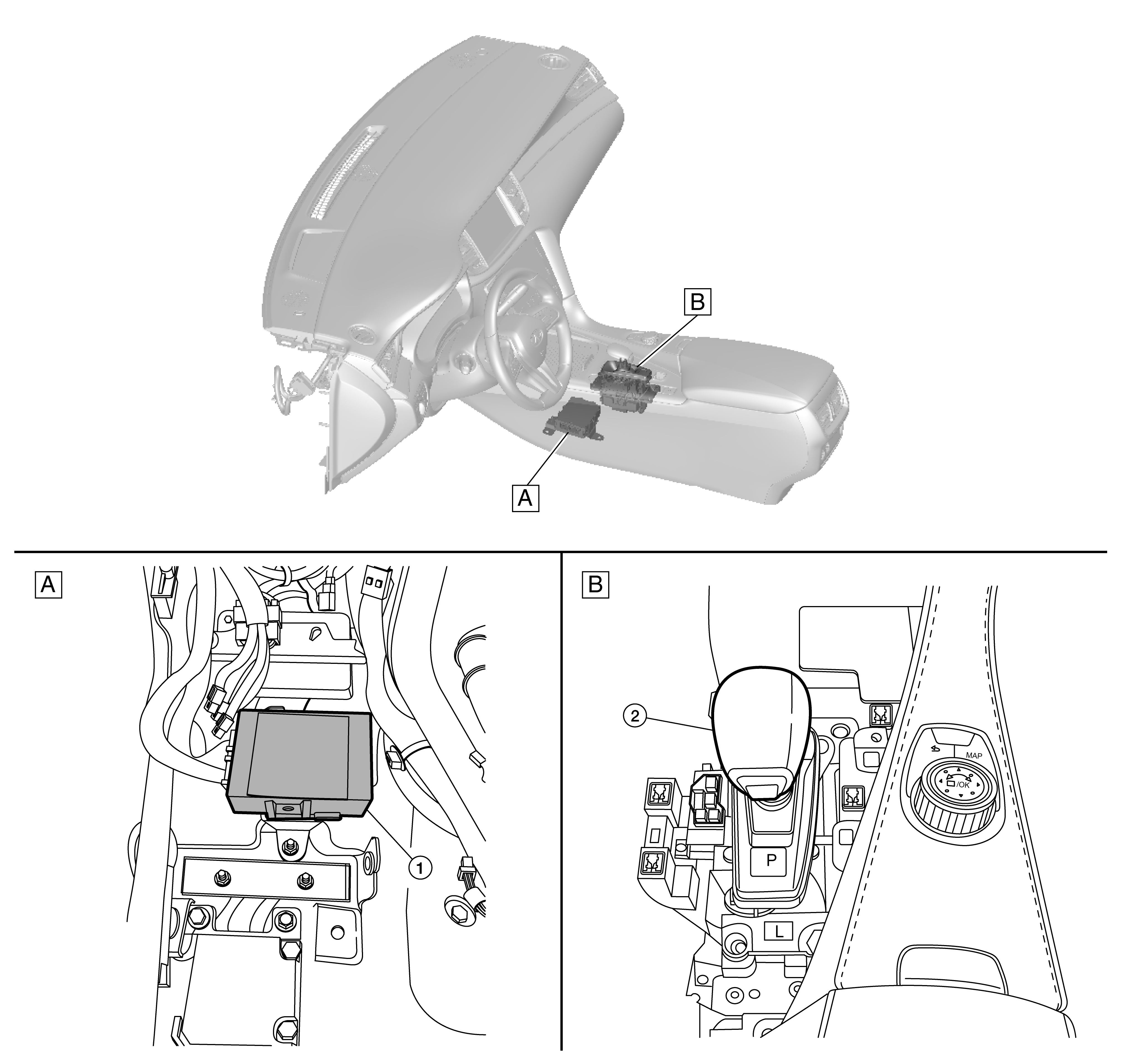

Fig 2: INTERIOR SIDE

GNSALDIA0088Z-088

Courtesy of NISSAN NORTH AMERICA, INC.

	Electric shift control module		Electric shift selector
	Center console floor area		Shift selector area
