Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

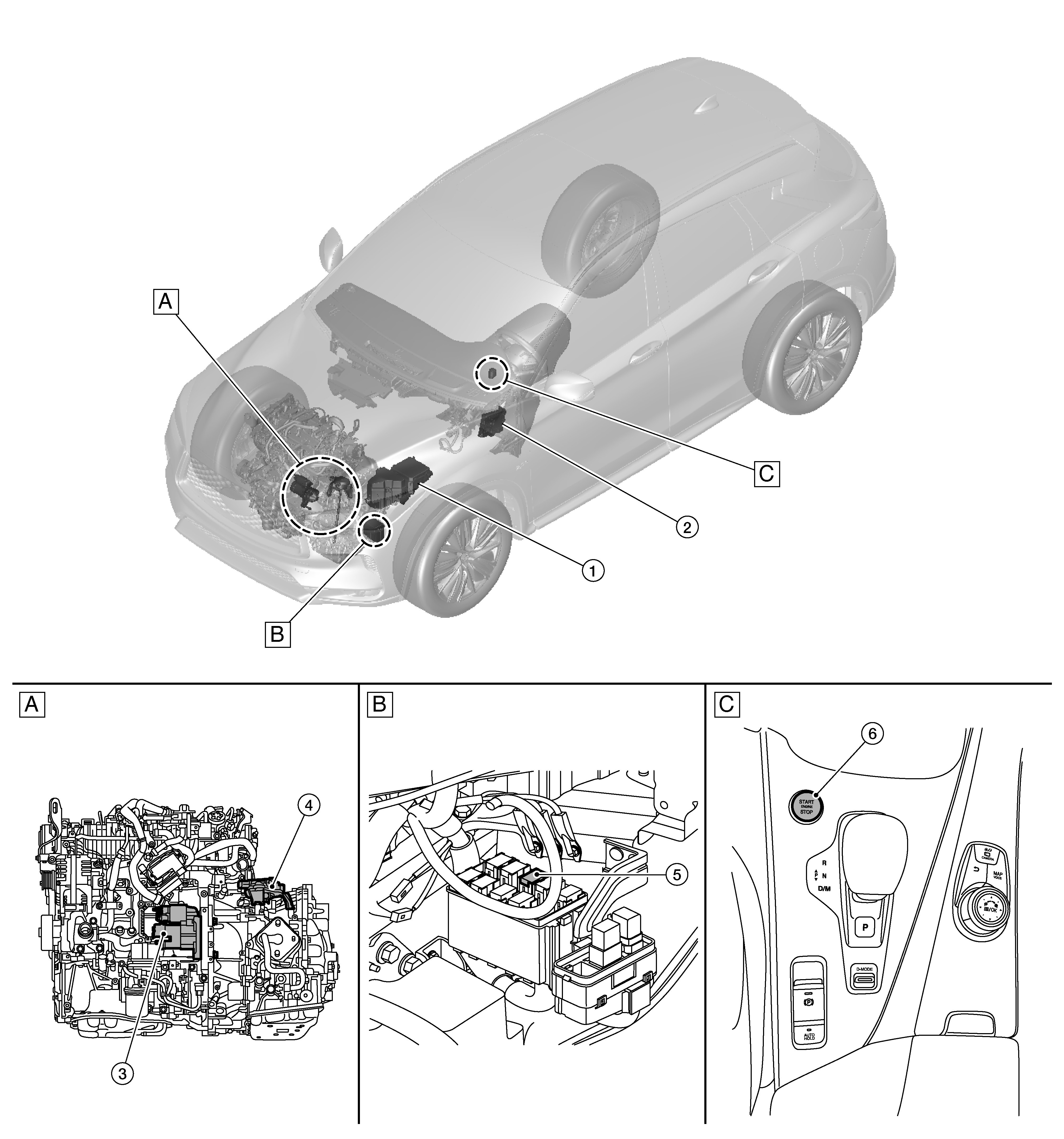

A	View with engine removed	B	Engine room left side
C	Center console

No.	Component	Function
1	IPDM E/R	CPU inside IPDM E/R controls starter relay. Refer to System Description .
2	BCM	BCM controls starter cut relay. Refer to System Description .
3	Starter motor	Refer to Starter Motor .
4	Transmission range switch	Transmission range switch supplies power to the starter relay inside IPDM E/R when the lever is shifted to the "P" or "N" position. Refer to Transmission Range Switch .
5	Starter cut relay	Power is supplied to the starter cut relay with BCM control.
6	Push button Ignition switch	Supplies ignition switch status to the IPDM E/R.
