Component Location

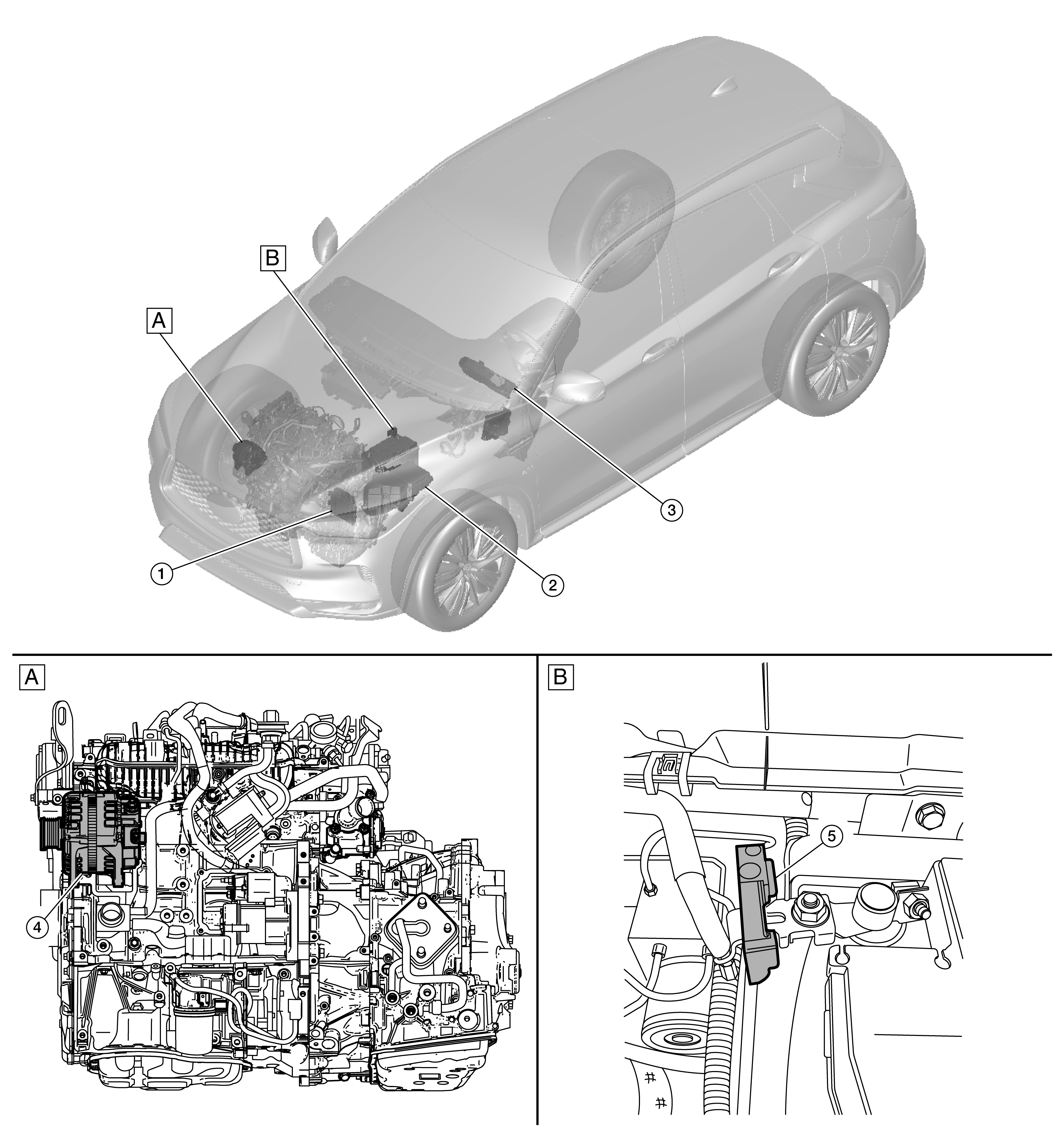

GNSALMIA0092Z-092Courtesy of NISSAN NORTH AMERICA, INC.

A

View with engine removed

B

Engine room left side

No.

Component

Function

1.

ECM

ECM transmits the received generator voltage request signal to ECM via CAN LIN communication.

2.

IPDM E/R

IPDM E/R sends the generator voltage request signal to ECM via CAN communication.

3.

Combination meter

The Combination meter displays the charge warning lamp when specific conditions indicating normal charging state are not met. Refer to On Board Diagnosis Function .

4.

Generator

Refer to Component Description .

5.

Battery current sensor (with battery temperature sensor)

Refer to Component Description .
