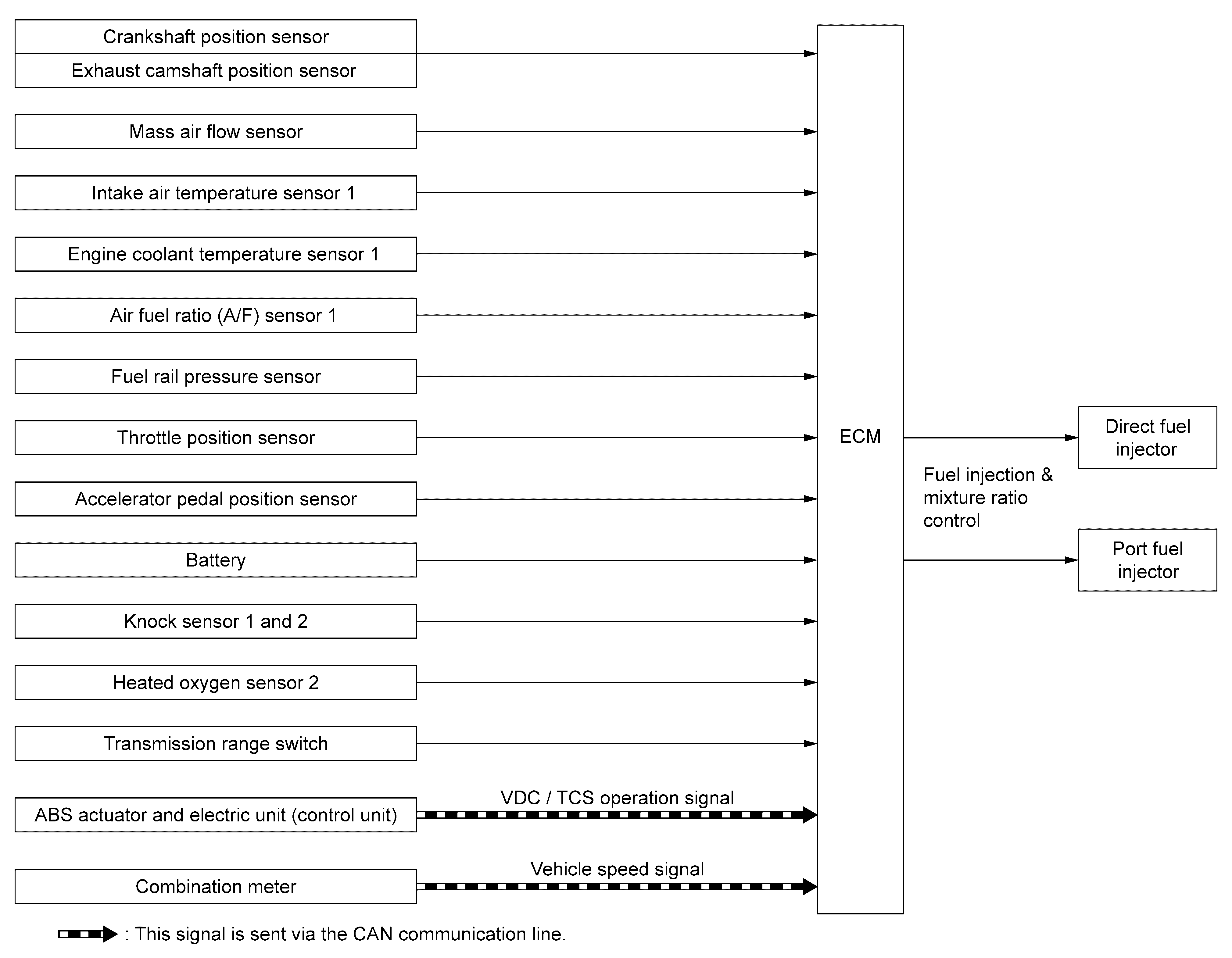

Home >> Infiniti >> 2019 >> QX50 Pure, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (2 Of 6) >> System >> Direct And Port Fuel Injection System >> System Description >> System Diagram
