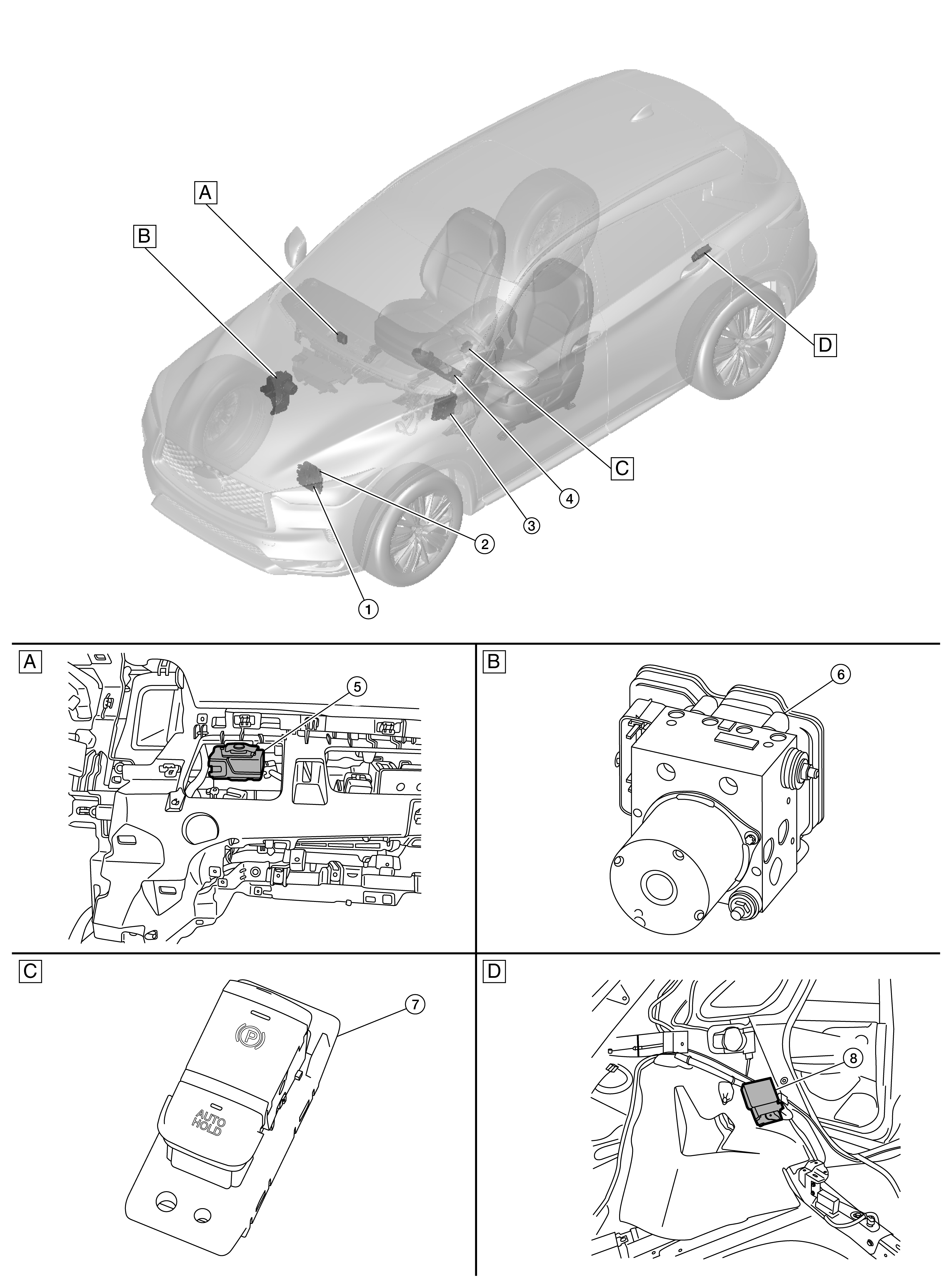

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

Right hand side of Instrument panel above glove box

view with instrument panel removed

Engine room (RH side)

(view with component removed from vehicle)

Center console

(view with component removed from vehicle)

Left rear of vehicle

(view with luggage side lower finisher (LH) removed)

No.	Component parts	Function
1.	TCM	Mainly transmits the following signals to chassis control module via CAN communication. Current gear position signal Shift position signal
2.	ECM	Mainly transmits the following signals to chassis control module via CAN communication. Accelerator pedal position signal
3.	BCM	Mainly transmits the following signals to chassis control module via CAN communication. Stop lamp switch signal
4.	Combination meter	Mainly transmits the following signals to chassis control module via CAN communication. Seat belt buckle switch (driver side) signal Mainly receives the following signals from chassis control module via CAN communication. Automatic brake hold indicator lamp signal Meter display signal
5.	Chassis control module	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication. Active trace control signal Active ride control signal Chassis control module malfunction signal Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication. hill start assist display request signal Mainly transmits the following signals to combination meter via CAN communication. hill start assist display request signal Refer to Component Location for detailed installation location.
6.	ABS actuator and electric unit (control unit)	Component Location
7.	Electric parking brake switch (automatic brake hold switch)
8.	Electric parking brake control module	Operates the parking brake based on the automatic brake hold operation status. Mainly transmits the following signals to chassis control module via CAN communication. Automatic brake hold malfunction signal Automatic brake hold prevents signal Brake system warning lamp signal Electric parking brake operation signal (switch) Electric parking brake status signal Refer to for detailed installation location.
