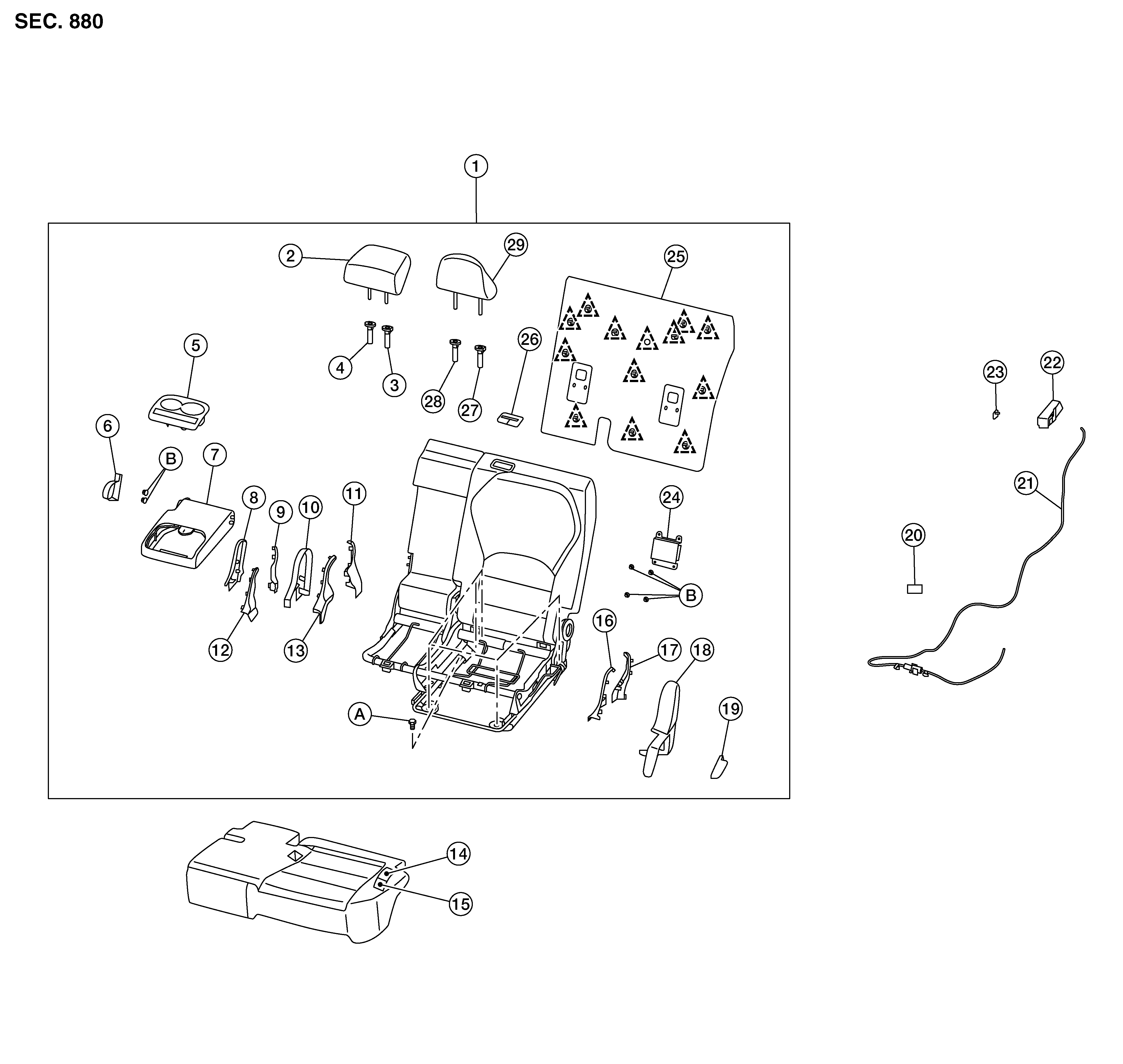

Exploded View
|
1. |
Seat assembly |
2. |
Headrest (center) |
3. |
Headrest holder [locked (center)] |
|
4. |
Headrest holder [free (center)] |
5. |
Armrest cup holder |
6. |
Armrest finisher |
|
7. |
Armrest |
8. |
Seat finisher outer (RH) |
9. |
Seat finisher inner [rear (RH)] |
|
10 |
Center finisher outer |
11. |
Center finisher [inner (rear)] |
12. |
Seat finisher inner [front (RH)] |
|
13. |
Center finisher [inner (front)] |
14. |
Seat cushion trim |
15. |
Seat cushion pad |
|
16. |
Seat finisher inner [front (LH)] |
17. |
Seat finisher inner [rear (LH)] |
18. |
Seat finisher outer (LH) |
|
19. |
Recline lever |
20. |
Tape |
21. |
Recline release cable |
|
22. |
Rear seatback release handle |
23. |
Screw cover |
24. |
Damper |
|
25. |
Seatback board |
26. |
Center seat belt finisher |
27. |
Headrest holder [locked (LH)]] |
|
28. |
Headrest holder [free (LH)] |
29. |
Headrest (LH) |
A. |
Refer to Removal and Installation . |
|
B. |
Nut |
|
Clip |
|

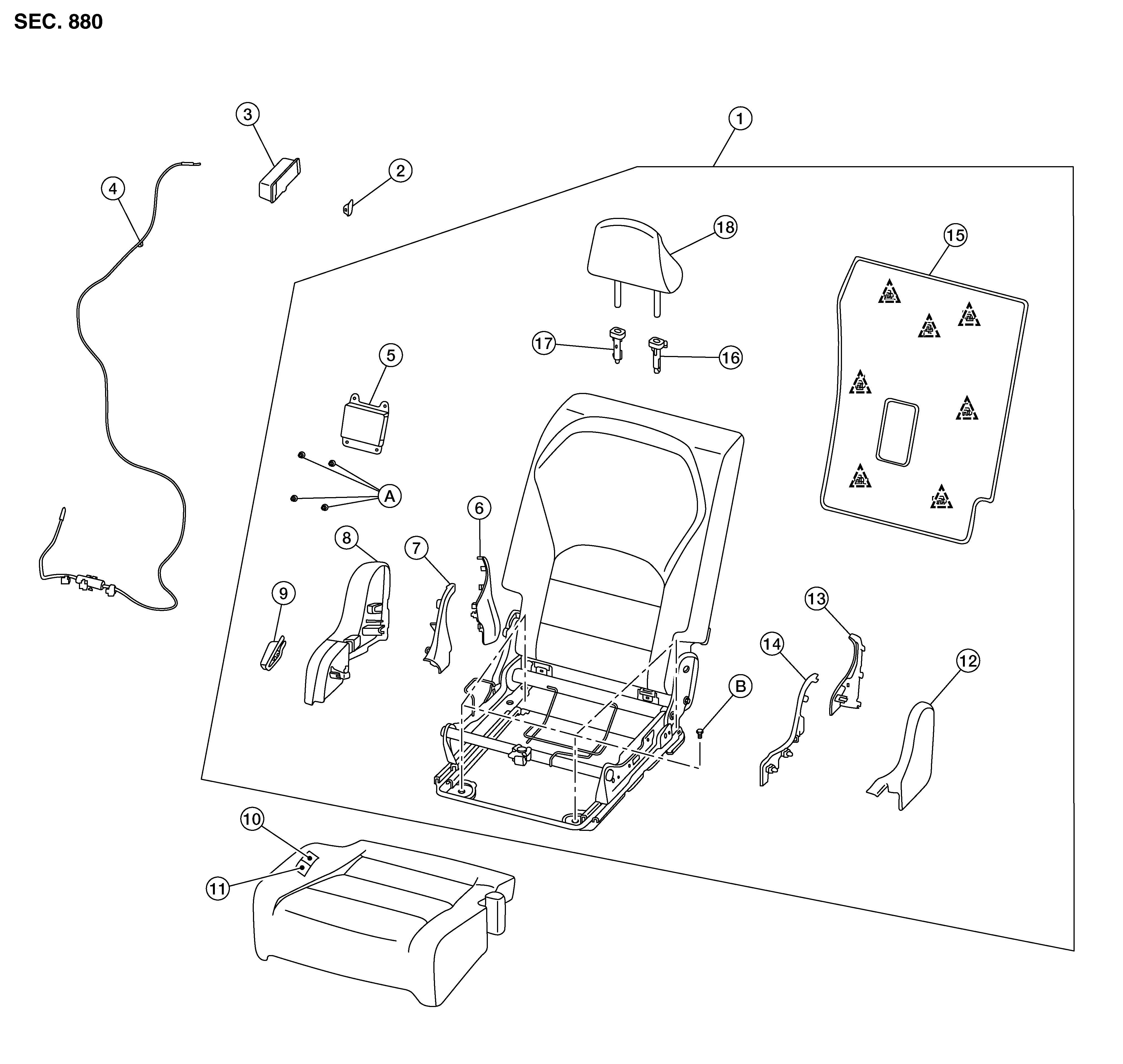

1. |
Seat assembly |
2. |
Screw cover |
3. |
Rear seatback release handle |
|
4. |
Rear seatback release cable |
5. |
Damper |
6. |
Seat cushion rear inner finisher (RH) |
|
7. |
Seat cushion front inner finisher (RH) |
8. |
Seat cushion outer finisher (RH) |
9. |
Seat recline lever |
|
10. |
Seat cushion trim |
11 |
Seat cushion pad |
12. |
Seat cushion outer finisher (LH) |
|
13. |
Seat cushion rear inner finisher (LH) |
14. |
Seat cushion front inner finisher (LH) |
15. |
Seatback board |
|
16. |
Headrest holder (locked) |
17. |
Headrest holder (free) |
18. |
Headrest |
|
A. |
Nut |
B. |
Refer to Removal and Installation . |
|
Clip |
