Exploded View

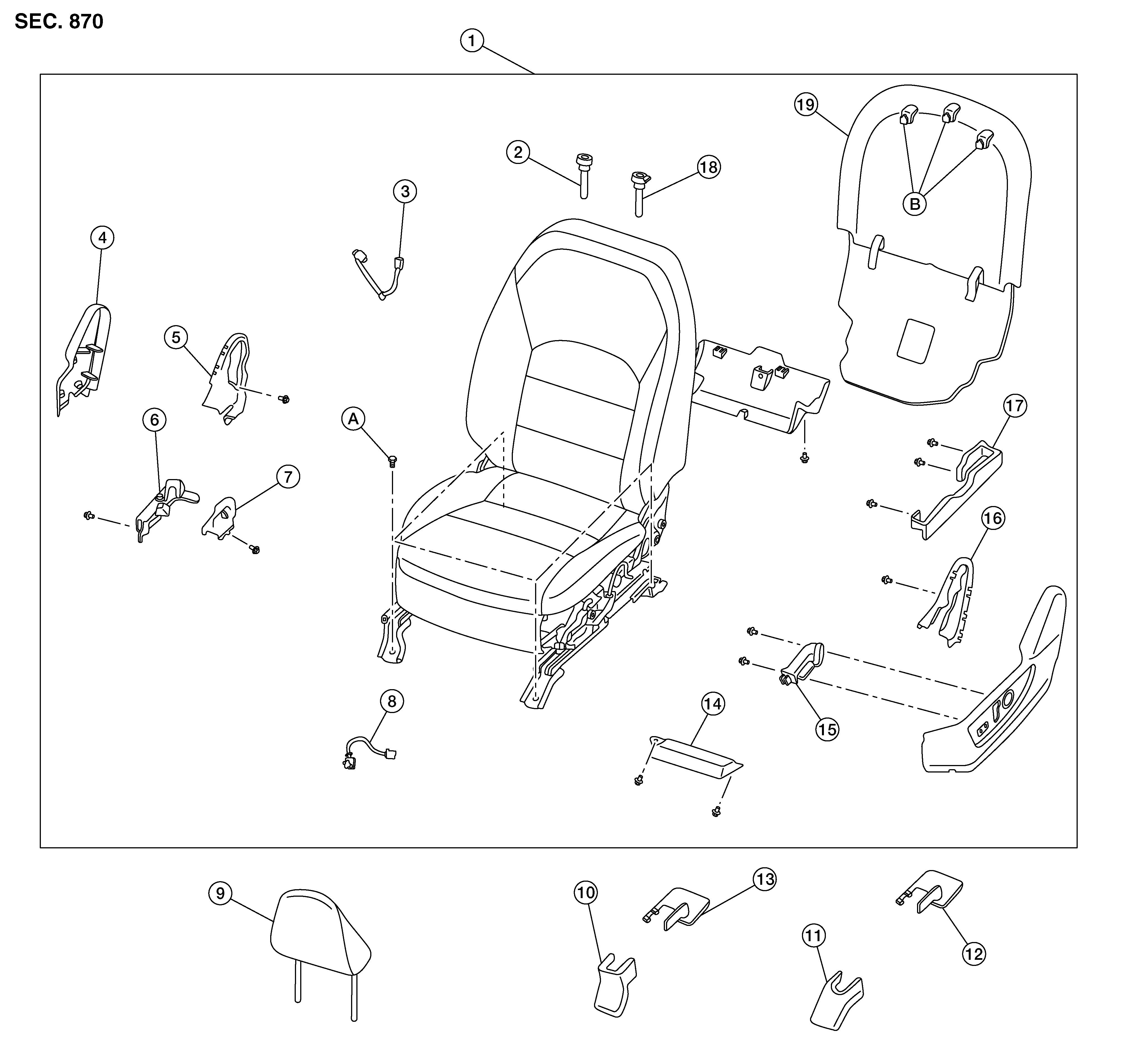

Fig 1: DRIVER SEAT WITH CLIMATE CONTROL

GNSAWJIA0189Z-189

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat assembly	2.	Headrest holder (free)	3.	Rear foot lamp
4.	Seat cushion outer finisher (RH)	5.	Seat cushion inner finisher (RH)	6.	Slide finisher [outer (RH)]
7.	Slide finisher [inner (RH)]	8.	Front foot lamp	9.	Headrest
10.	Front leg finisher (RH)	11.	Front leg finisher (LH)	12.	Rear leg finisher (LH)
13.	Rear leg finisher (RH)	14.	Driver seat control unit	15.	Power seat switch
16.	Seat cushion finisher [inner (LH)]	17.	Slide finisher (LH)	18.	Headrest holder (locked)
19.	Seatback board	A.	Refer to Removal and Installation .	B.	Clip

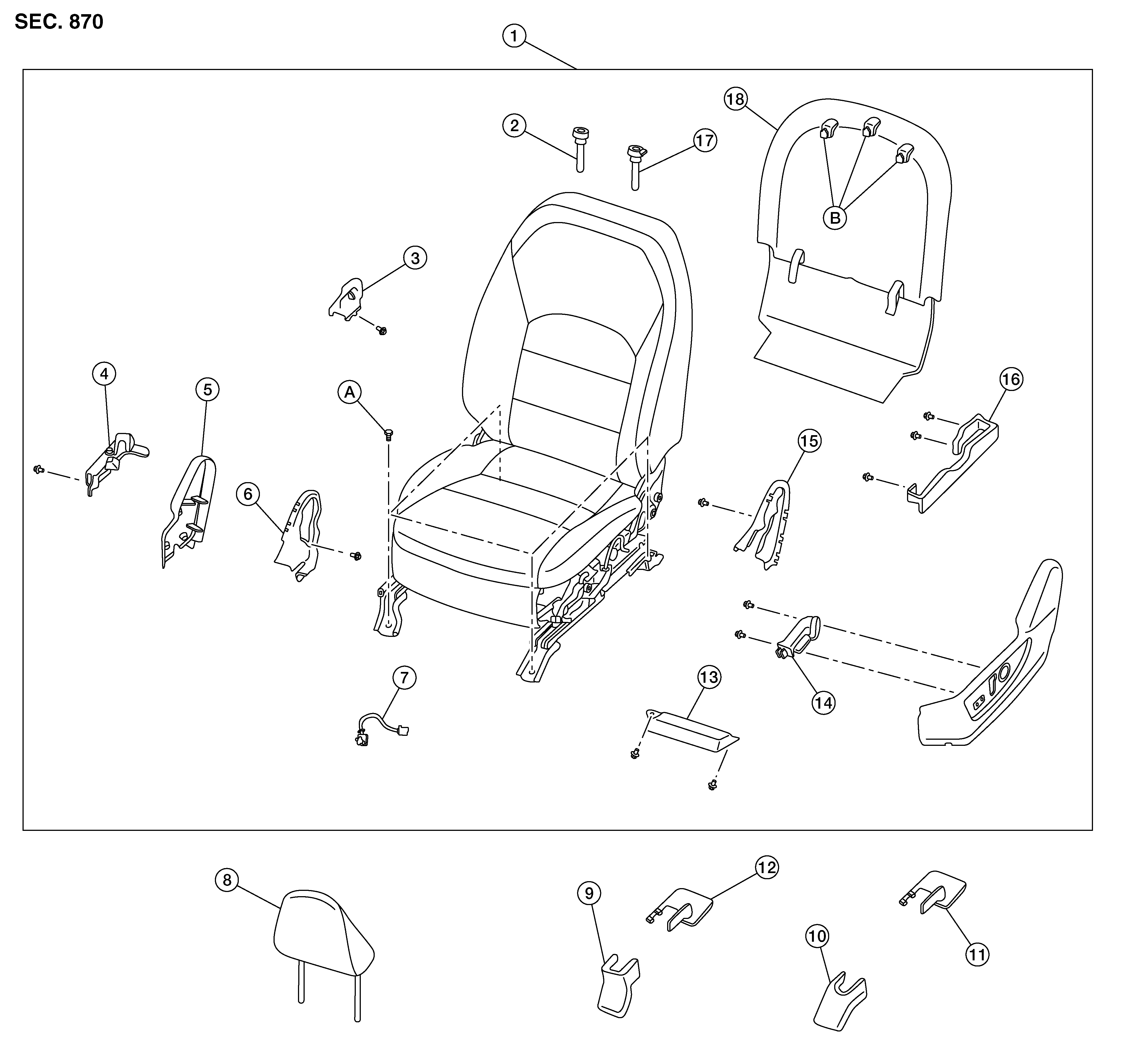

Fig 2: DRIVER SEAT WITHOUT CLIMATE CONTROL

GNSAWJIA0190Z-190

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat assembly	2.	Headrest holder (free)	3.	Slide finisher [inner (RH)]
4.	Slide finisher [outer (RH)]	5.	Seat cushion outer finisher (RH)	6.	Seat cushion inner finisher (RH))
7.	Front foot lamp	8.	Headrest	9.	Front leg finisher (RH)
10.	Front leg finisher (LH)	11.	Rear leg finisher (LH)	12.	Rear leg finisher (RH)
13.	Driver seat control unit	14.	Power seat switch	15.	Seat cushion inner finisher (LH)
16.	Slide finisher (LH)	17.	Seatback board)	18.	Headrest holder (locked)
A.	Refer to Removal and Installation .	B.	Clip

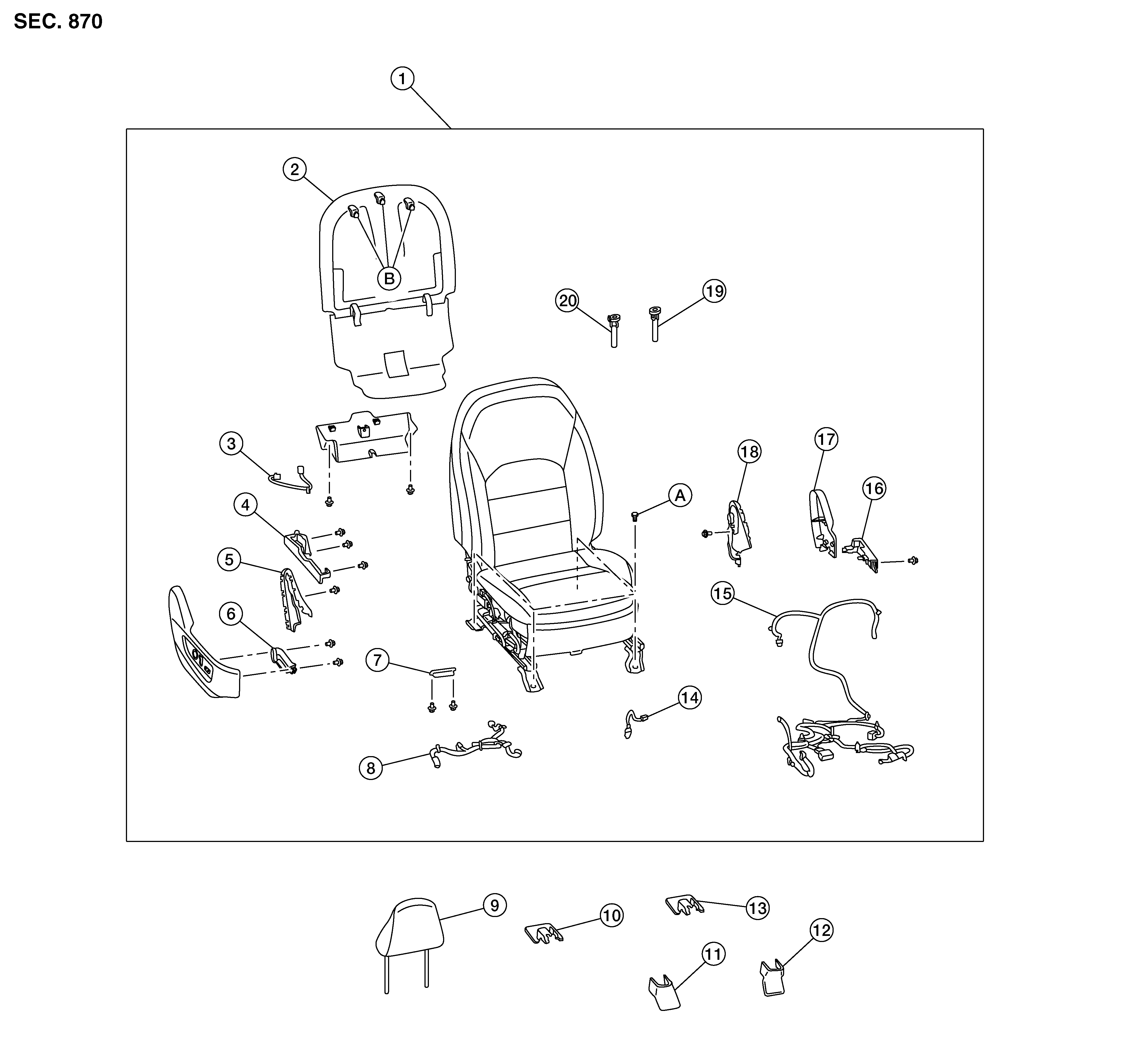

Fig 3: PASSENGER SEAT WITH CLIMATE CONTROL

GNSAWJIA0191Z-191

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat assembly	2.	Seatback board	3.	Rear foot lamp
4.	Slide finisher (LH)	5.	Seat cushion inner finisher (RH)	6.	Power seat switch
7.	Occupant classification system control unit	8.	Occupant classification system harness	9.	Headrest
10.	Rear leg finisher (RH)	11.	Front leg finisher (RH)	12.	Front leg finisher (LH)
13.	Rear leg finisher (LH)	14.	Front foot lamp	15.	Seat harness
16.	Seat belt buckle finisher	17.	Seat cushion outer finisher (LH)	18.	Seat cushion inner finisher (LH)
19.	Headrest holder (locked)	20.	Headrest holder (free)	A.	Refer to Removal and Installation .
B.	Clip

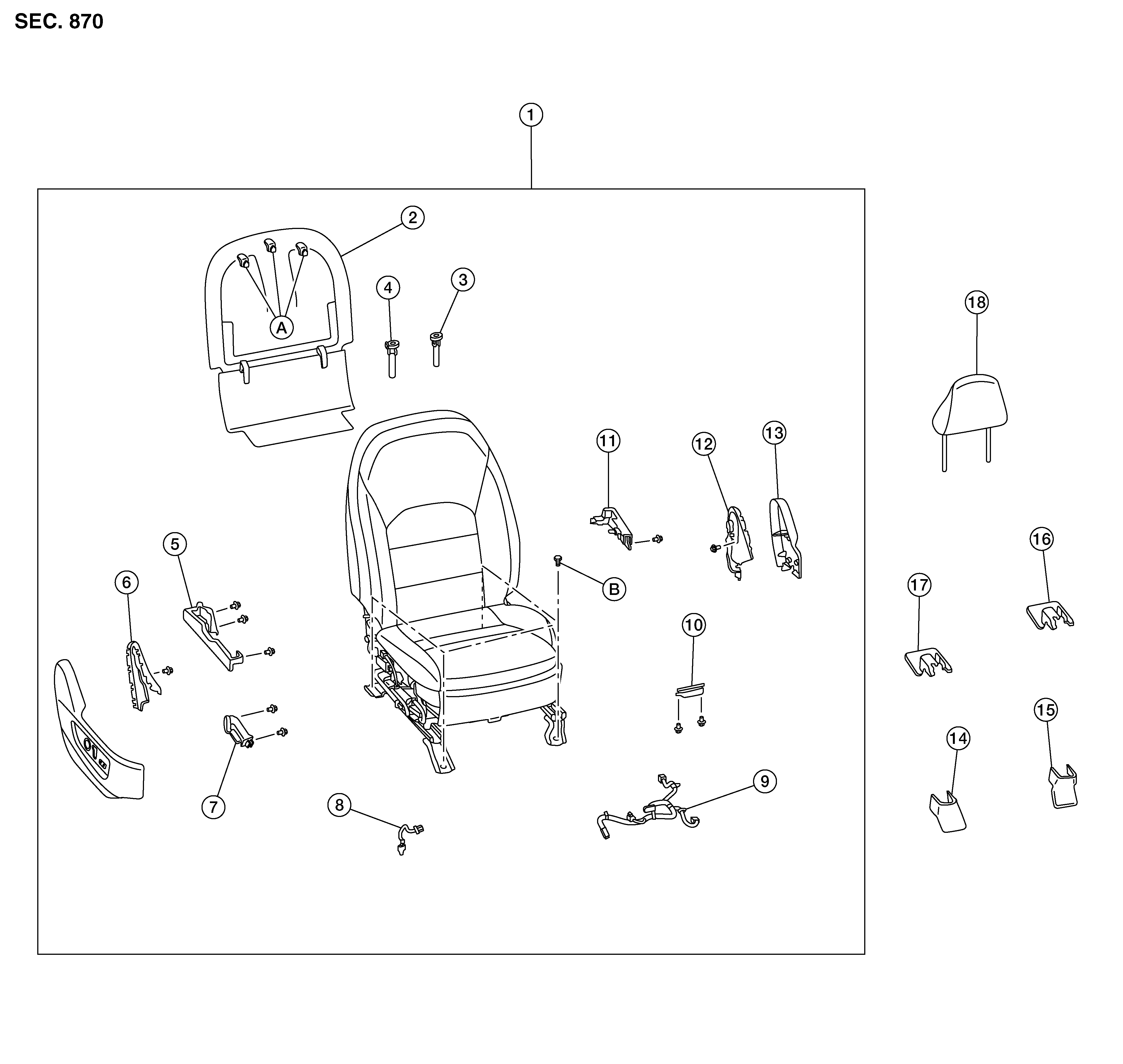

Fig 4: PASSENGER SEAT WITHOUT CLIMATE CONTROL

GNSAWJIA0192Z-192

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat assembly	2.	Seatback board	3.	Headrest holder (locked)
4.	Headrest holder (free)	5.	Slide finisher (RH)	6.	Seat inner finisher (RH)
7.	Power seat switch	8.	Front foot lamp	9.	Occupant classification system harness
10.	Occupant classification system control unit	11.	Seat belt buckle finisher	12.	Seat inner finisher (LH)
13.	Seat outer finisher (LH)	14.	Front leg cover (RH)	15.	Front leg cover (LH)
16.	Rear leg cover (LH)	17.	Rear leg cover (RH)	18.	Headrest
A.	Clip	B.	Refer to Removal and Installation .
