Removal and Installation: Installation

Note the followings and installation is in the reverse order of removal.

CAUTION:

Never reuse removed bolt or nut if it is self-locking. Refer to Precautions for Self-locking Nuts and Bolts .
Never reuse cover.
After installation dual clutch, perform inspection and adjustment. Refer to Inspection and Adjustment .

Install the fixing bolts of transaxle assembly and engine according to the following standards.

Courtesy of NISSAN NORTH AMERICA, INC.

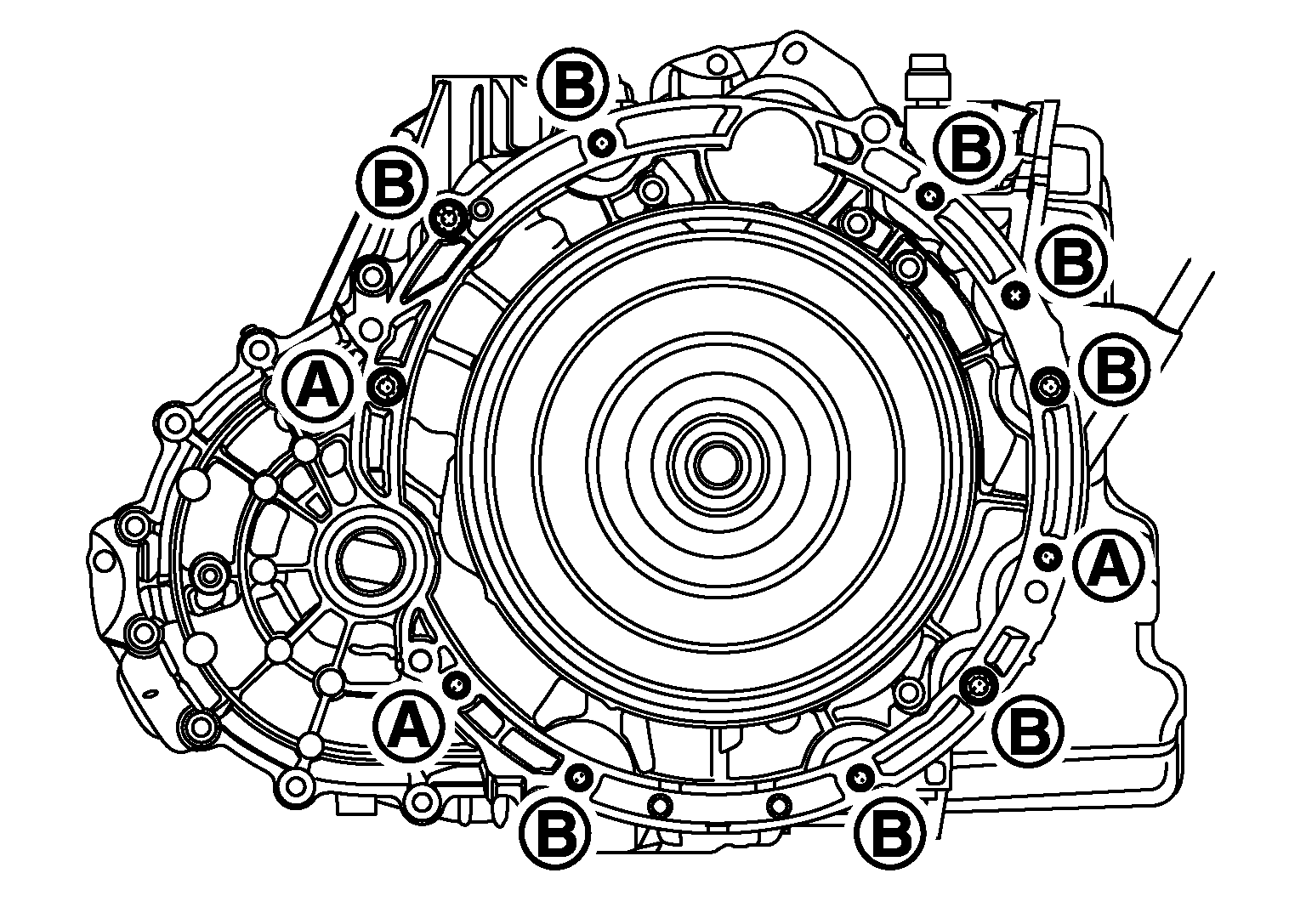

Bolt symbol
Quantity	3	8
Insertion direction	Engine to transaxle	Transaxle to engine
Tightening torque N.m (kg-m, ft-lb)	39 (4.0, 29)
