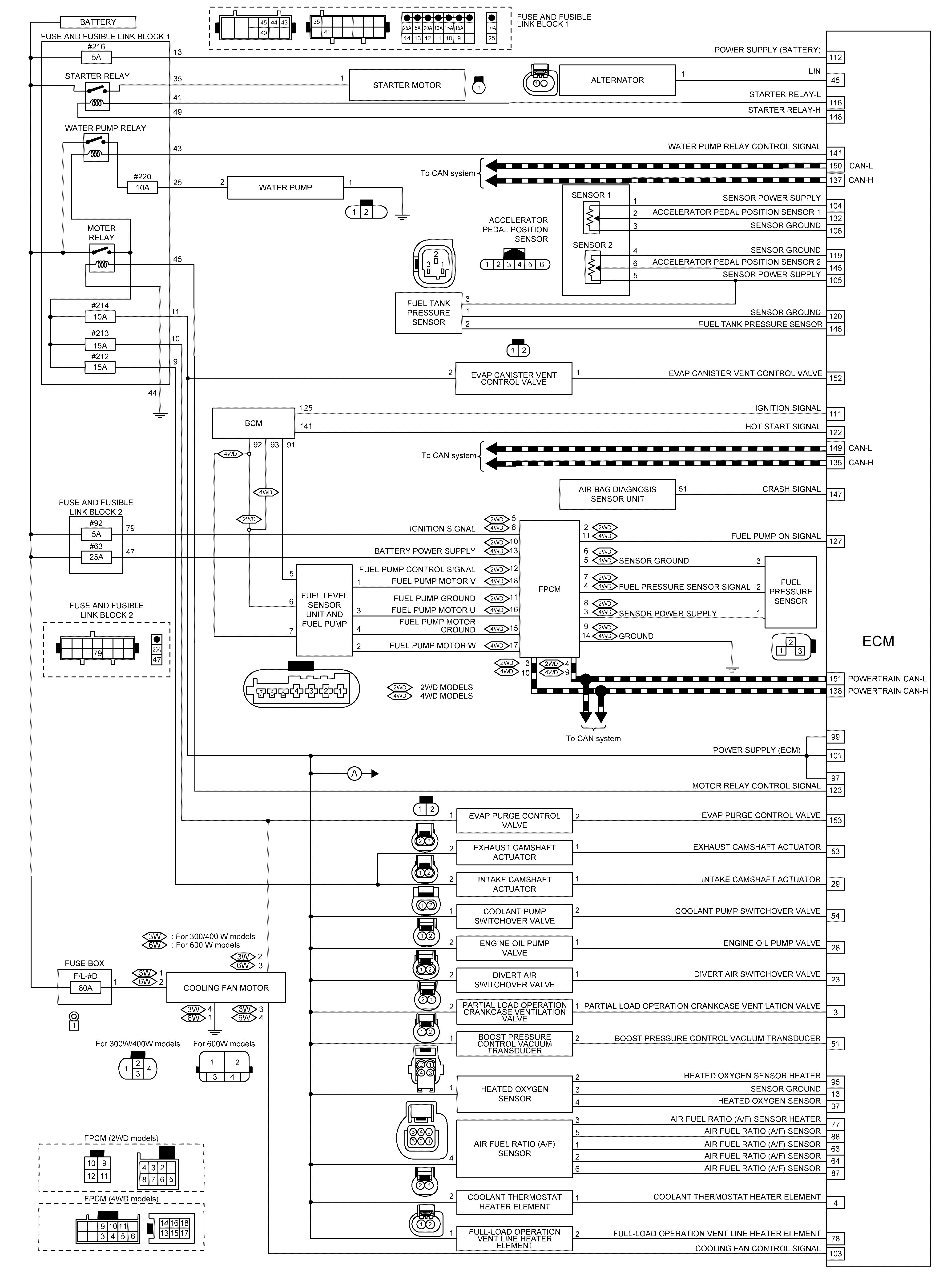

Circuit Diagram

GNSILL0227829-829

Courtesy of NISSAN NORTH AMERICA, INC.

*: Cooling fun motor of 600 W models is not applicable.

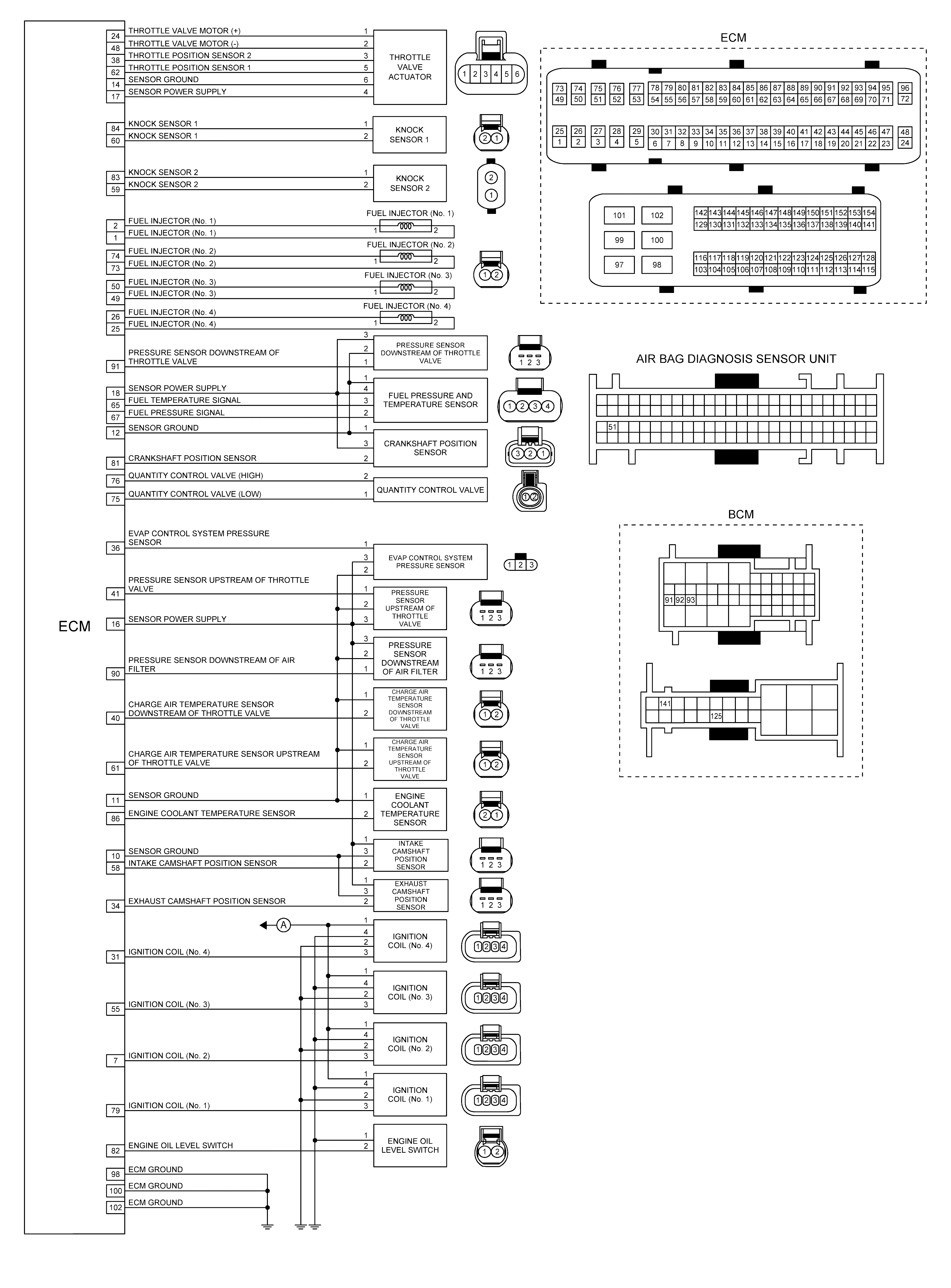

GNSILL0227830-830

Courtesy of NISSAN NORTH AMERICA, INC.
