Clutch Housing Side

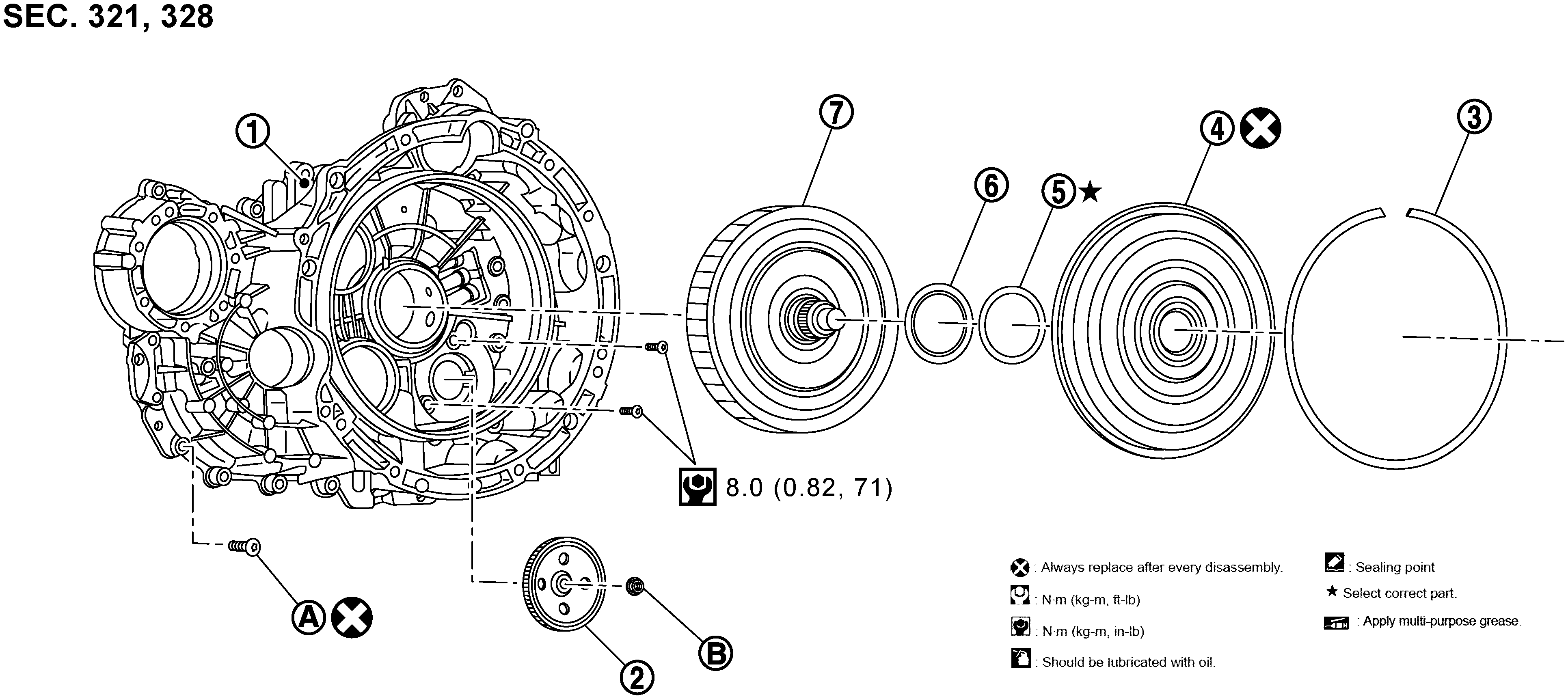

Fig 1: Clutch Housing Side With Torque Specification
GNSJSDIA8964GB-964Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Clutch housing

SYMBOL

Oil pump gear

SYMBOL

Snap ring

SYMBOL

Cover

SYMBOL

Shim

SYMBOL

Bearing

SYMBOL

Dual clutch

SYMBOL

: Always replace after every disassembly.

SYMBOL

: For the tightening torque, refer to Disassembly and Assembly .

SYMBOL

: For the tightening torque, refer to Disassembly and Assembly .

SYMBOL

: N.m (kg-m, in-lb)

SYMBOL

: Select with proper thickness.
