Exploded View

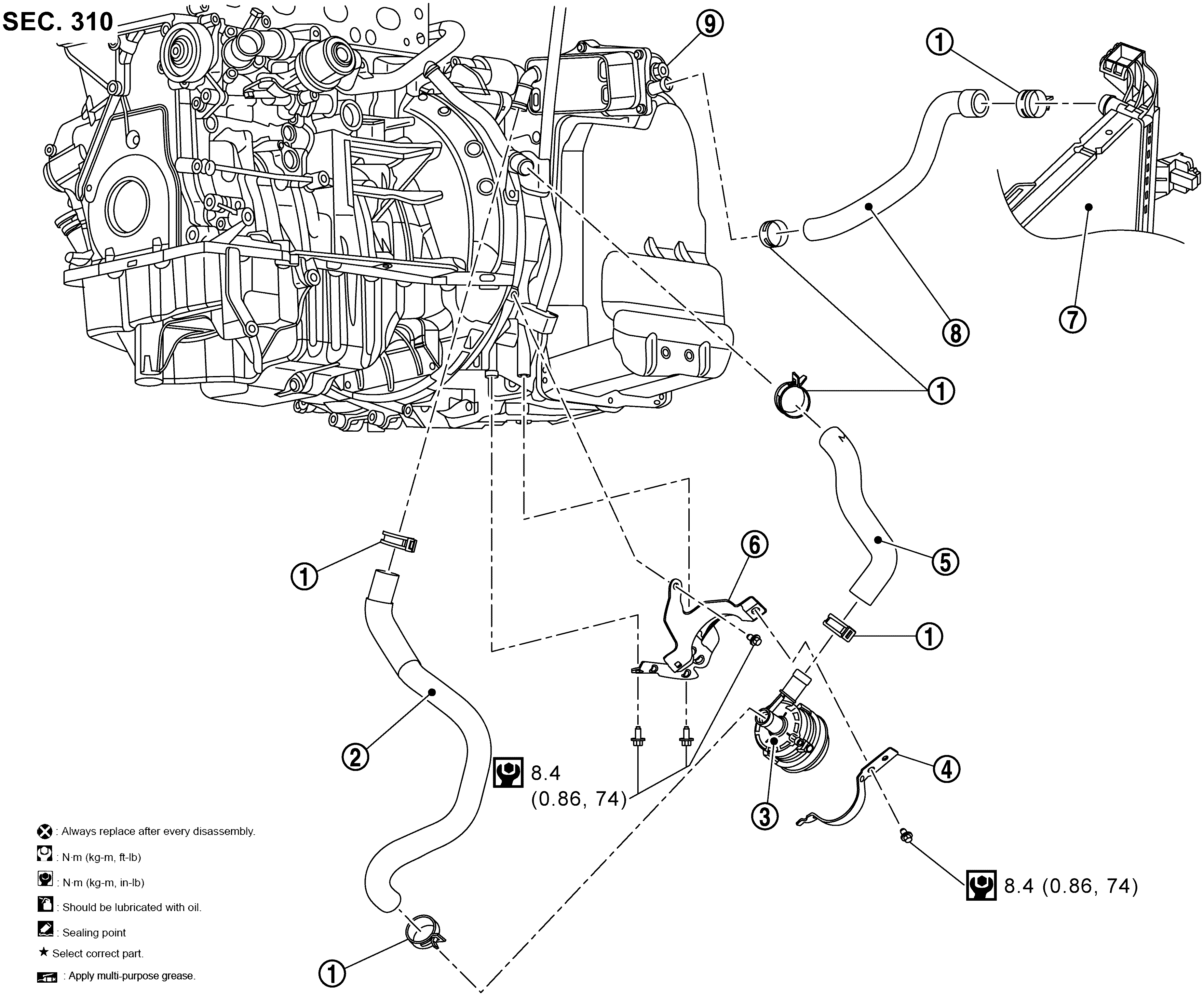

Fig 1: Transaxle Fluid Cooler System With Torque Specification
GNSJSDIA8961GB-961Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Hose clamp

SYMBOL

Water hose A

SYMBOL

Water pump

SYMBOL

Bracket

SYMBOL

Water hose B

SYMBOL

Bracket

SYMBOL

Radiator

SYMBOL

Water hose C

SYMBOL

Transaxle assembly

SYMBOL

: N.m (kg-m, in-lb)
