Standard Seat

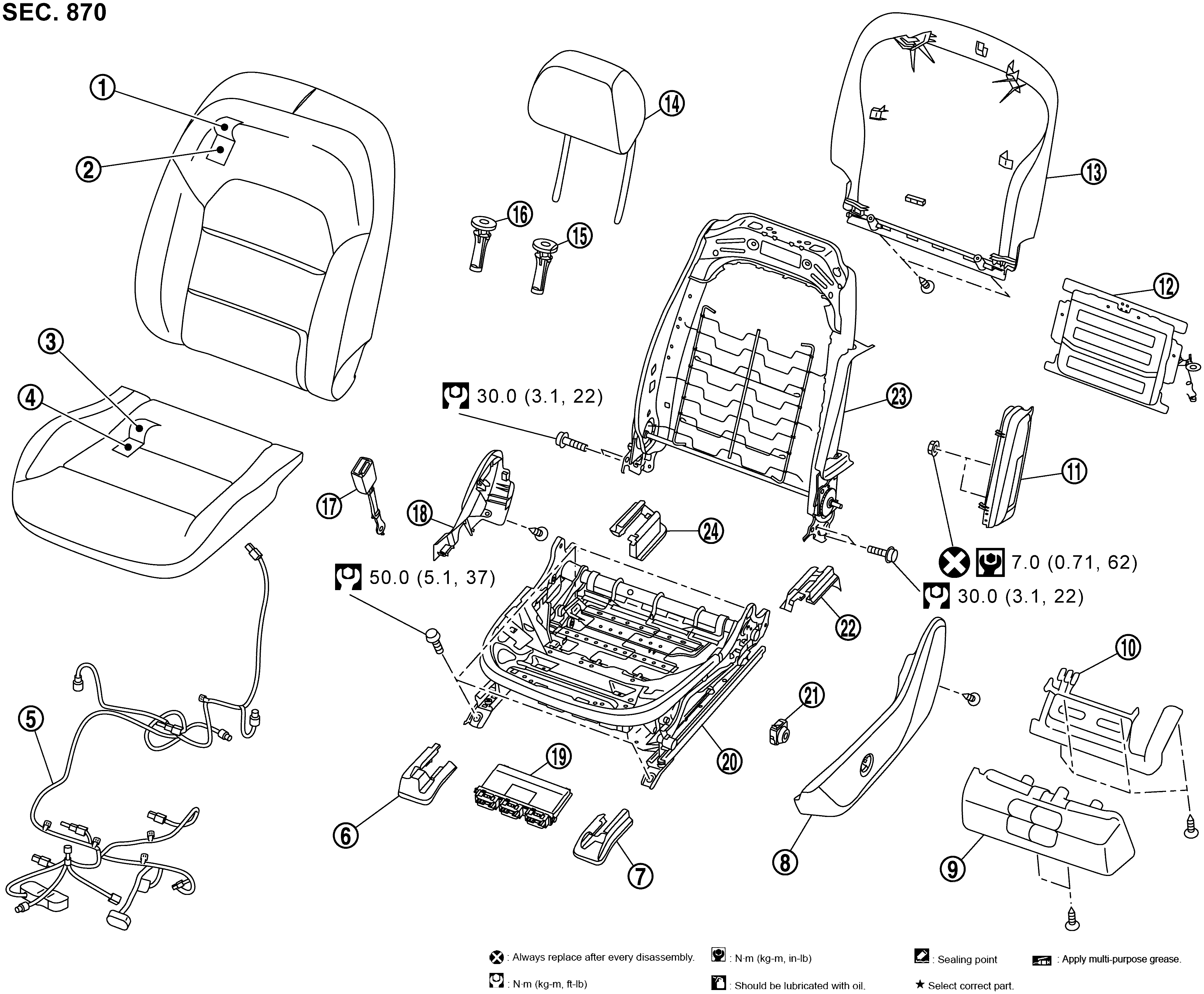

Fig 1: Front Seat With Torque Specification - Power Seat

Courtesy of NISSAN NORTH AMERICA, INC.

Seatback trim	Seatback pad^*1	Seat cushion trim
Seat cushion pad^*1	Seat harness	Front reg cover inner side
Front reg cover outer side	Seat cushion outside finisher	Under tray^*3
Drawer bracket^*3	Side air bag module	Lumbar support cushion
Seatback board	Headrest	Headrest holder (lock)
Headrest holder (free)	Seat belt buckle^*2	Seat cushion inside finisher
Seat control unit	Seat cushion frame	Lumbar support switch
Rear reg cover outer side	Seatback frame	Rear reg cover inner side
: Always replace after every disassembly.
: N.m (kg-m, in-lb)
: N.m (kg-m, ft-lb)

*¹ : Never disassemble with heater seat.

*² : Tighten together with seat belt buckle. Refer to Exploded View .

*³ : With under tray.

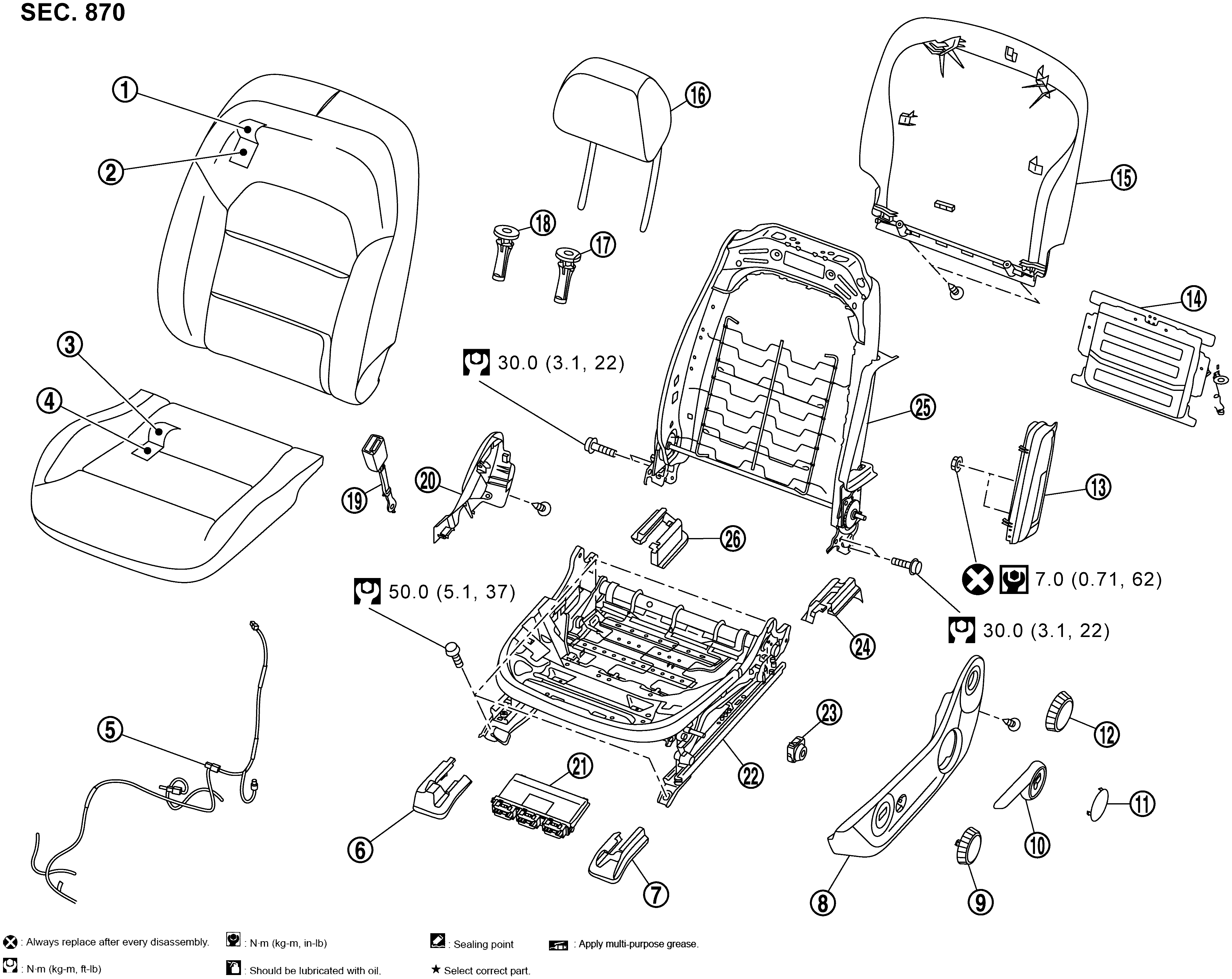

Fig 2: Front Seat With Torque Specification - Manual Seat

Courtesy of NISSAN NORTH AMERICA, INC.

Seatback trim	Seatback pad^*1	Seat cushion trim
Seat cushion pad^*1	Seat harness	Front reg cover inner side
Front reg cover outer side	Seat cushion outside finisher	Tilt dial
Lifter lever	Lifter lever cap	Reclining dial
Side air bag module	Lumbar support cushion	Seatback board
Headrest	Headrest holder (lock)	Headrest holder (free)
Seat belt buckle^*2	Seat cushion inside finisher	Seat control unit
Seat cushion frame	Lumber support switch	Rear reg cover outer side
Seatback frame	Rear reg cover inner side
: Always replace after every disassembly.
: N.m (kg-m, in-lb)
: N.m (kg-m, ft-lb)

*¹ : Never disassemble with heater seat.

*² : Tighten together with seat belt buckle. Refer to Exploded View .
