AWD Solenoid

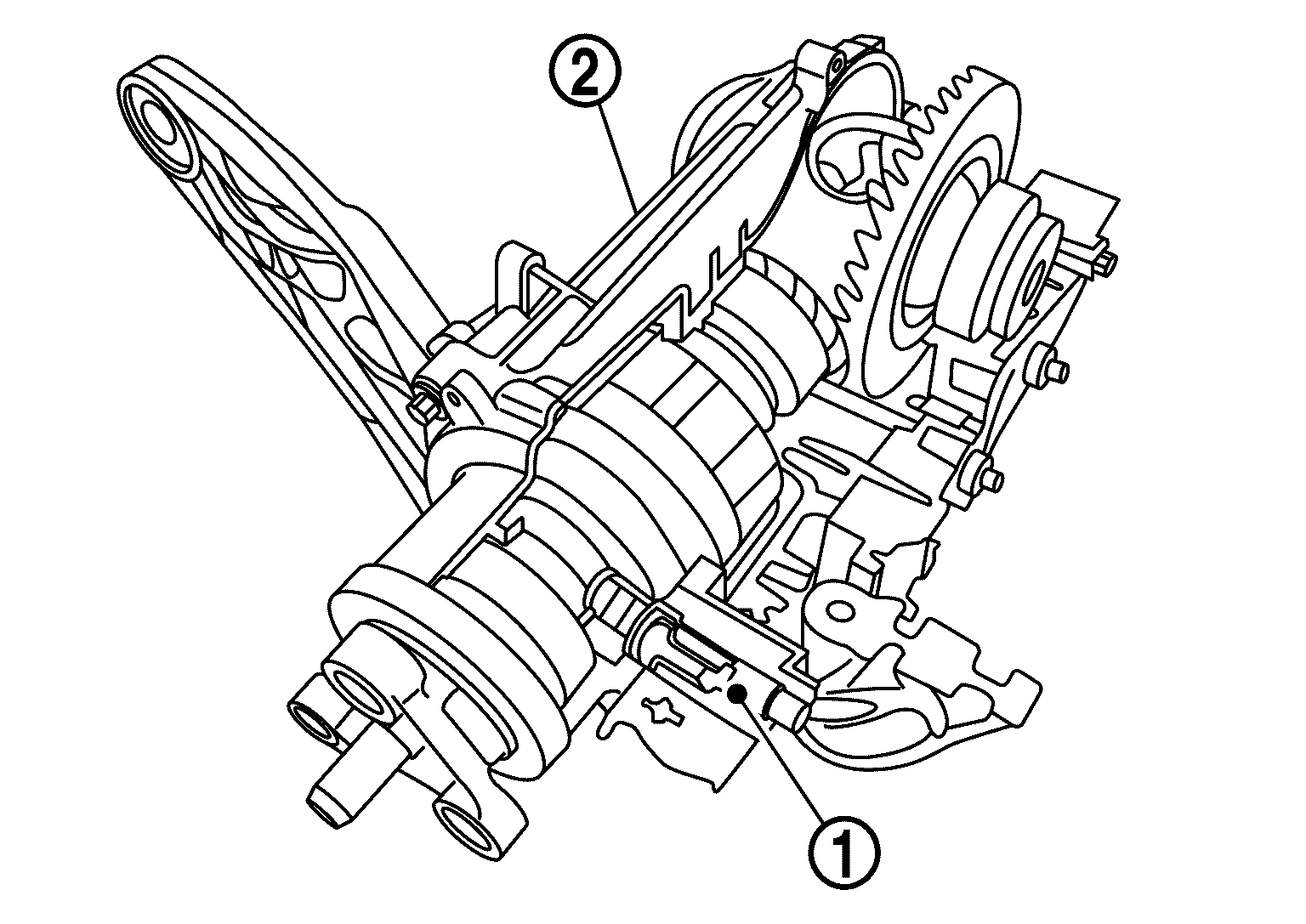

AWD solenoid
is mounted on housing of rear final drive assembly
.
Courtesy of NISSAN NORTH AMERICA, INC.
AWD solenoid regulates the level of the oil pressure that acts on the piston and actuates the multiple disk clutch.
AWD solenoid is operated by command current from AWD control unit.
Courtesy of NISSAN NORTH AMERICA, INC.
