Disassembly and Assembly: Assembly

  1. Install pipes SYMBOL .

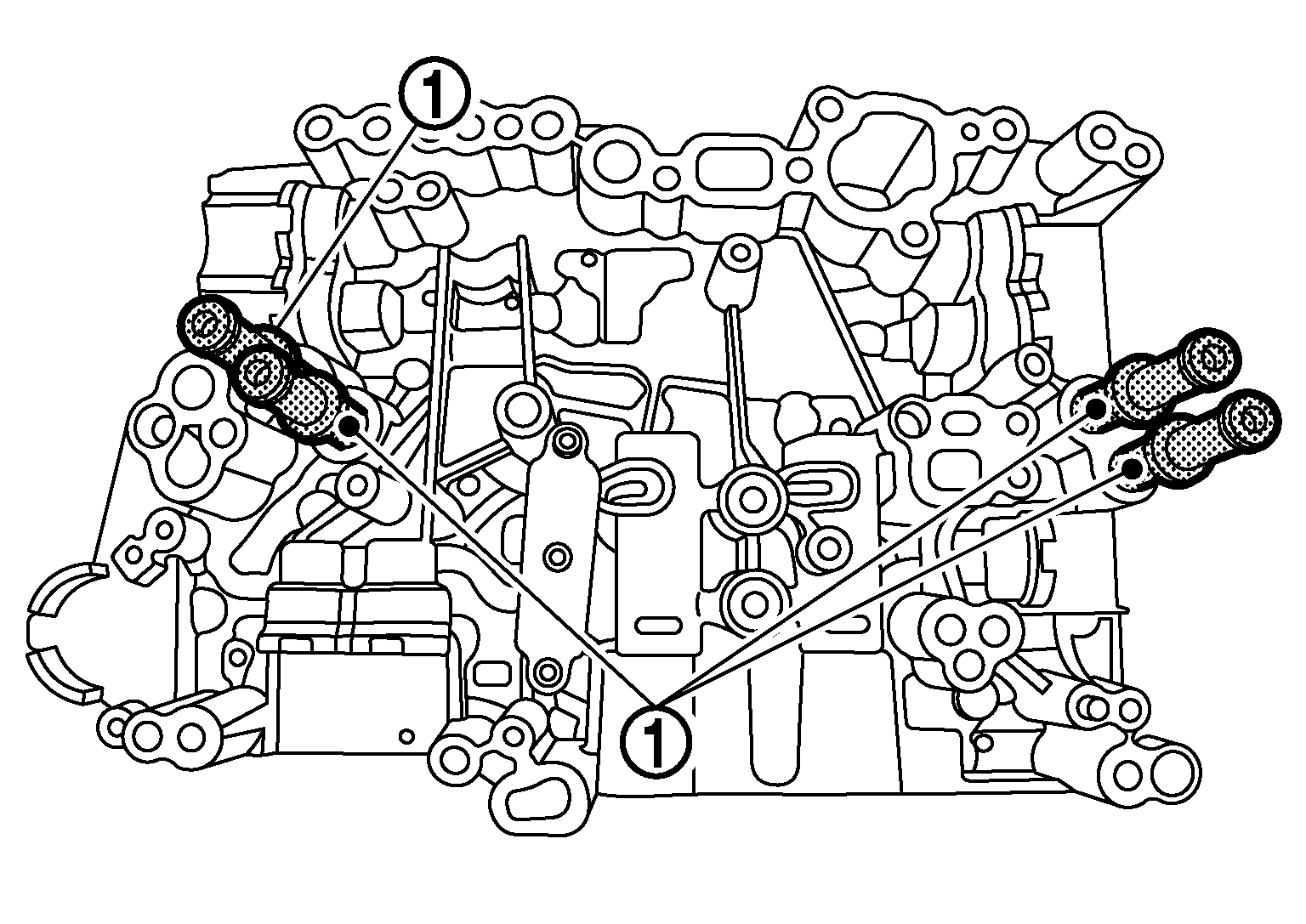

    GNSJSDIA9040Z-040Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never reuse pipes.
  2. Install O-rings SYMBOL .

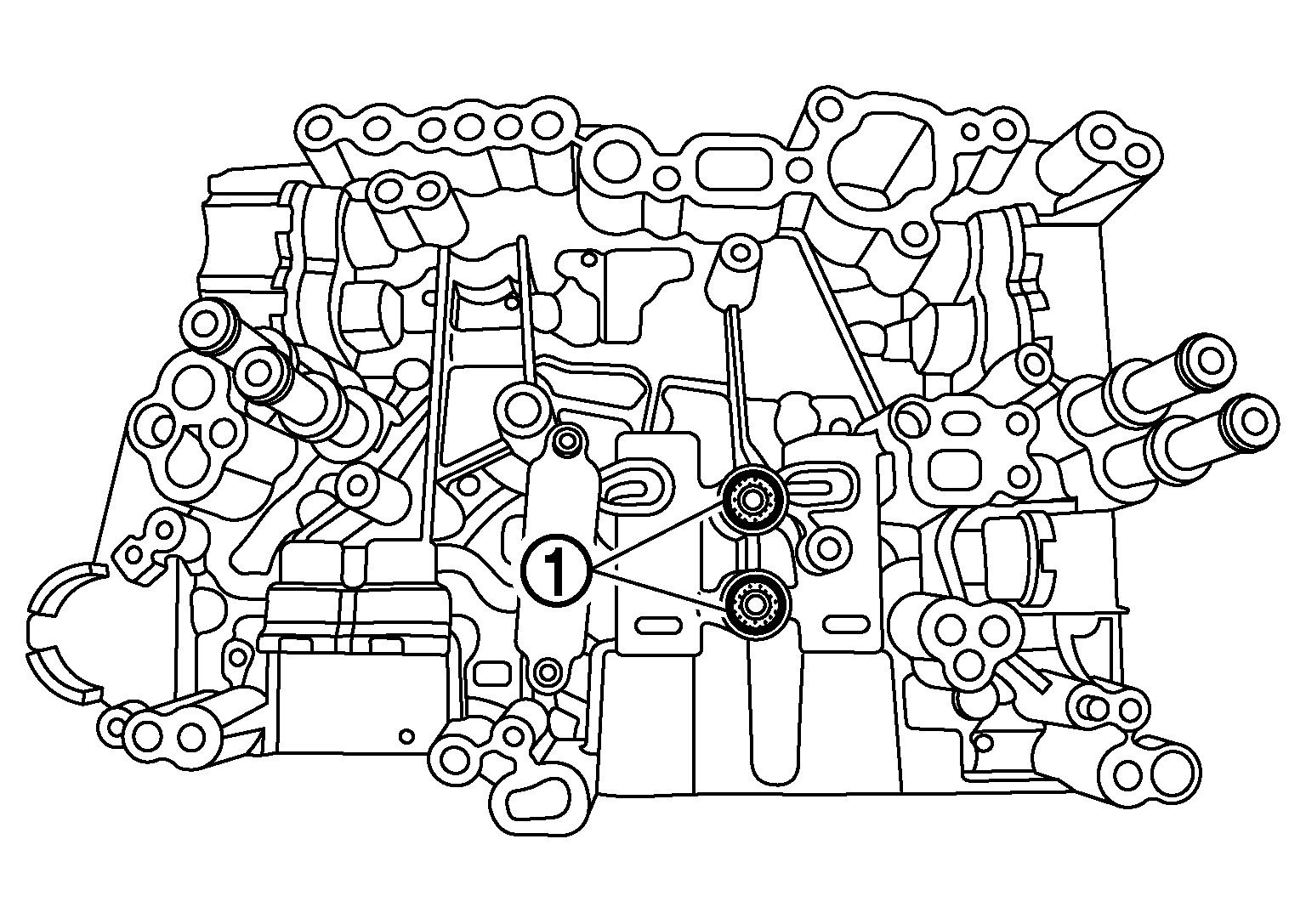

    GNSJSDIA9039Z-039Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never reuse O-rings.
  3. Install TCM.

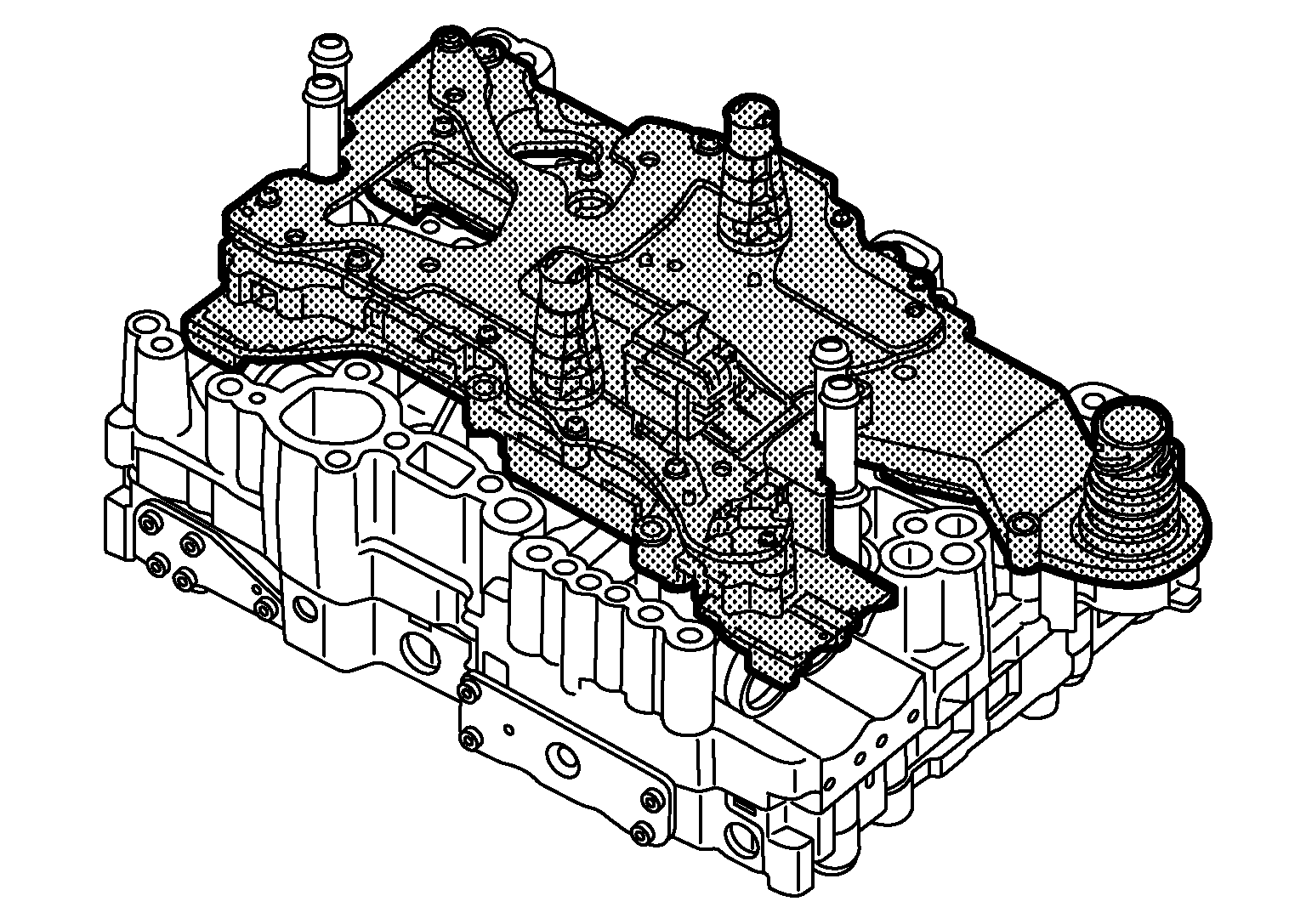

    GNSJSDIA9050Z-050Courtesy of NISSAN NORTH AMERICA, INC.
  4. Install TCM mounting bolts.

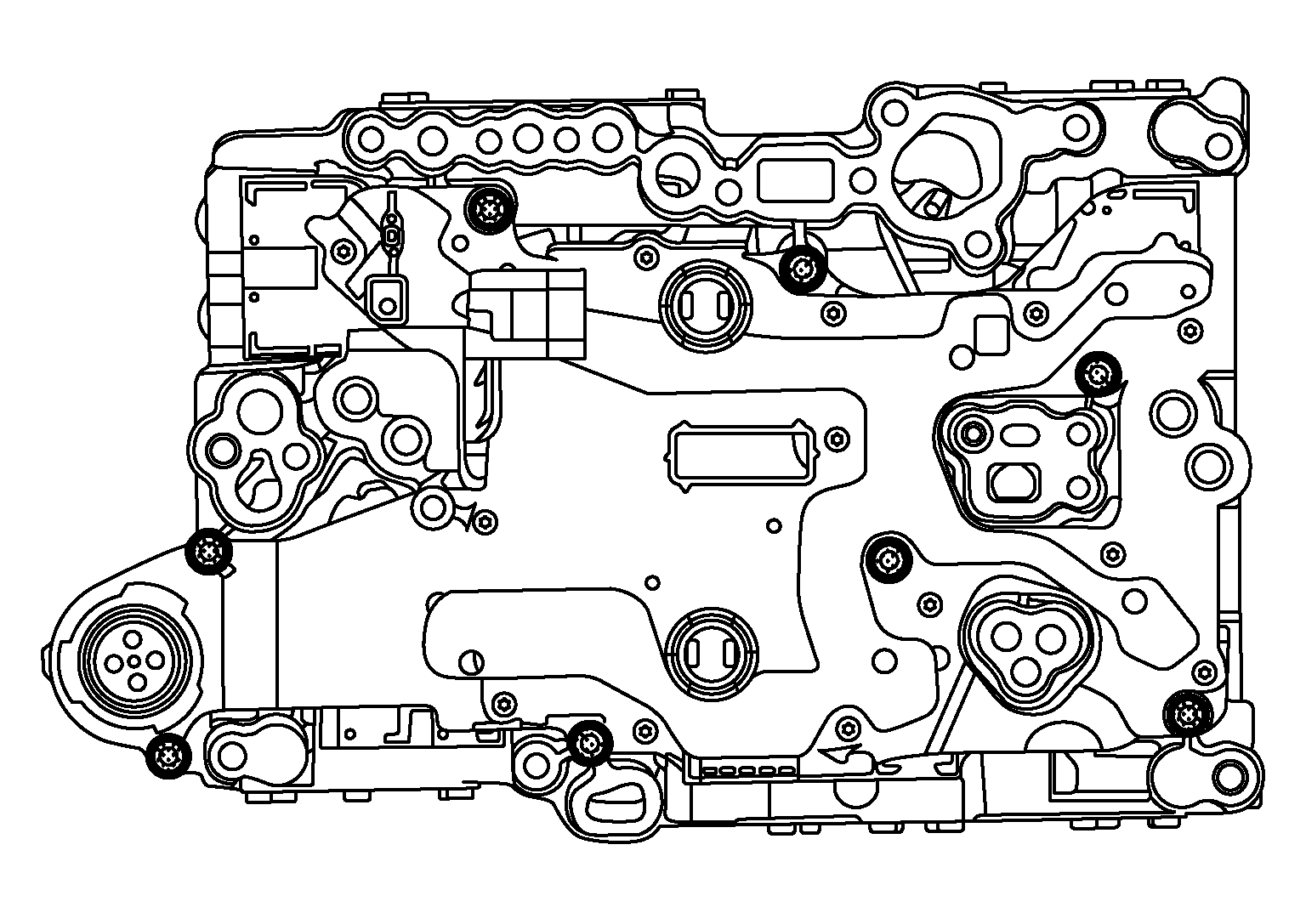

    GNSJSDIA9048Z-048Courtesy of NISSAN NORTH AMERICA, INC.
  5. Install electric oil pump.
  6. Install connector SYMBOL and install electric oil pump bolts.

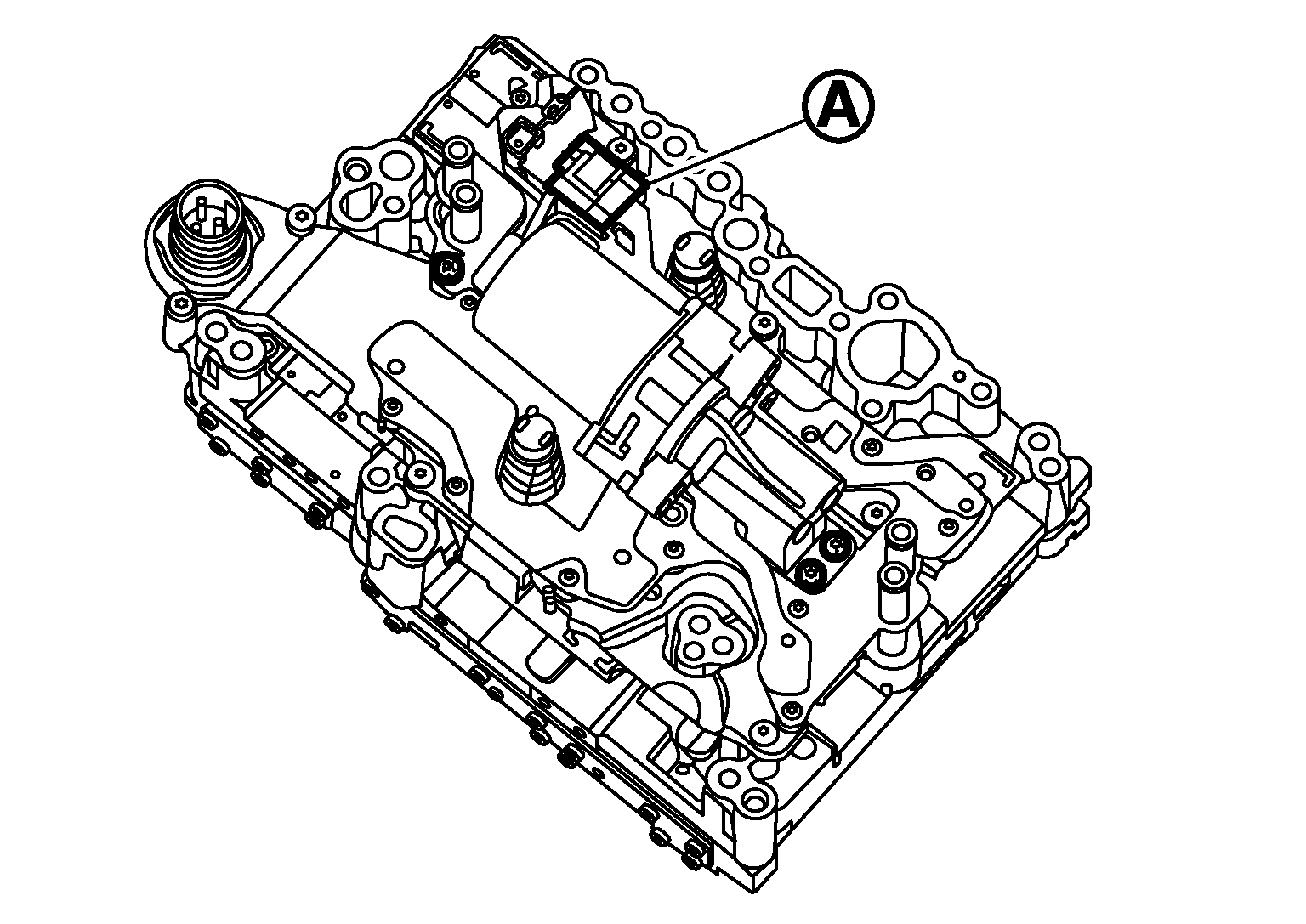

    GNSJSDIA9047Z-047Courtesy of NISSAN NORTH AMERICA, INC.
  7. Install electric oil pump mounting bolt with the following procedure.

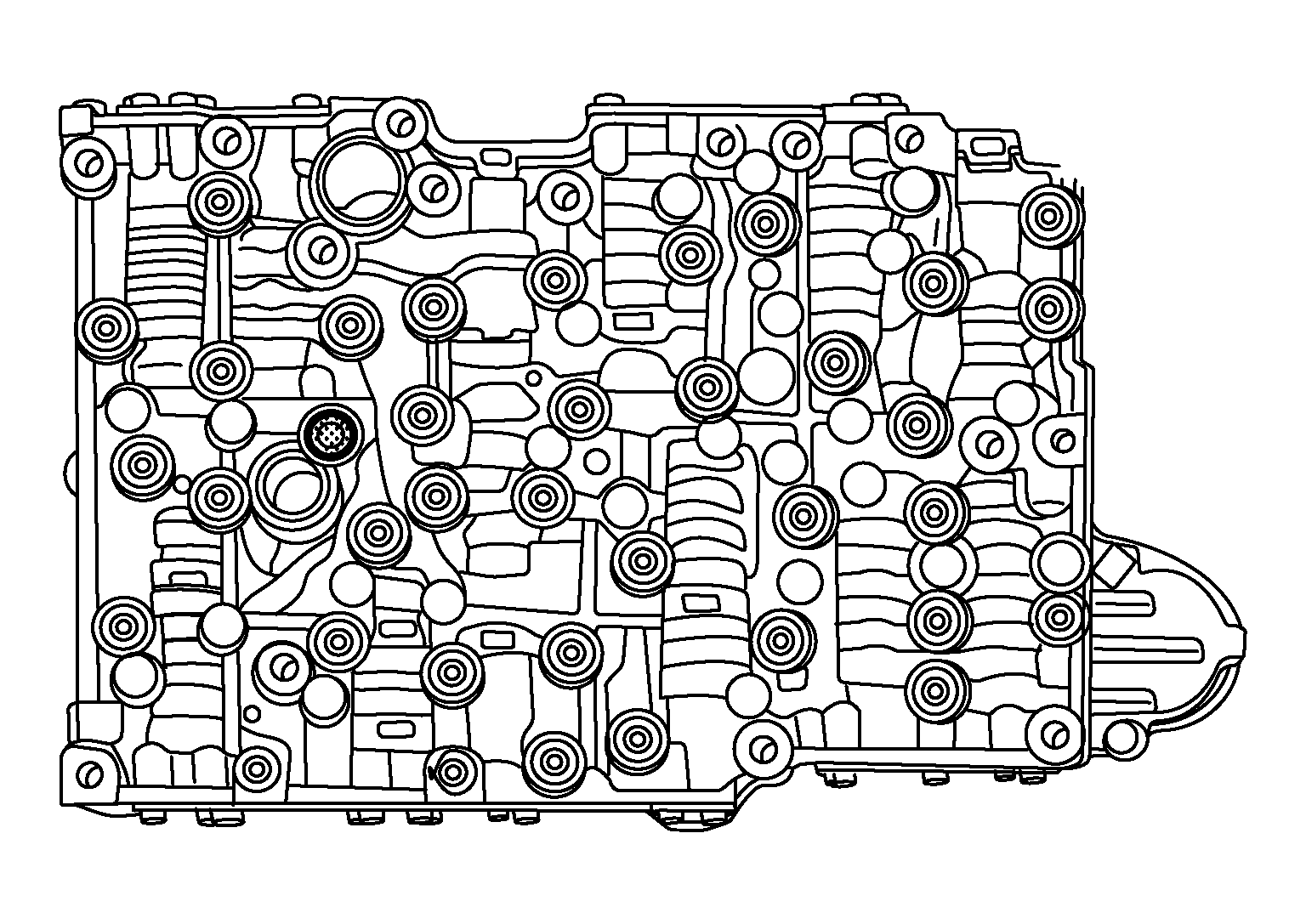

    GNSJSDIA9049Z-049Courtesy of NISSAN NORTH AMERICA, INC.
    1. Tighten electric oil pump mounting bolt.

      Tightening torque N.m (kg-m, in-lb)

      : 4 (0.41, 35)
    2. Tighten electric oil pump mounting bolt.

      Angle tightening

      : 180 deg.
  8. Perform inspection of valves. Refer to Inspection and Adjustment .
  9. Install following parts.

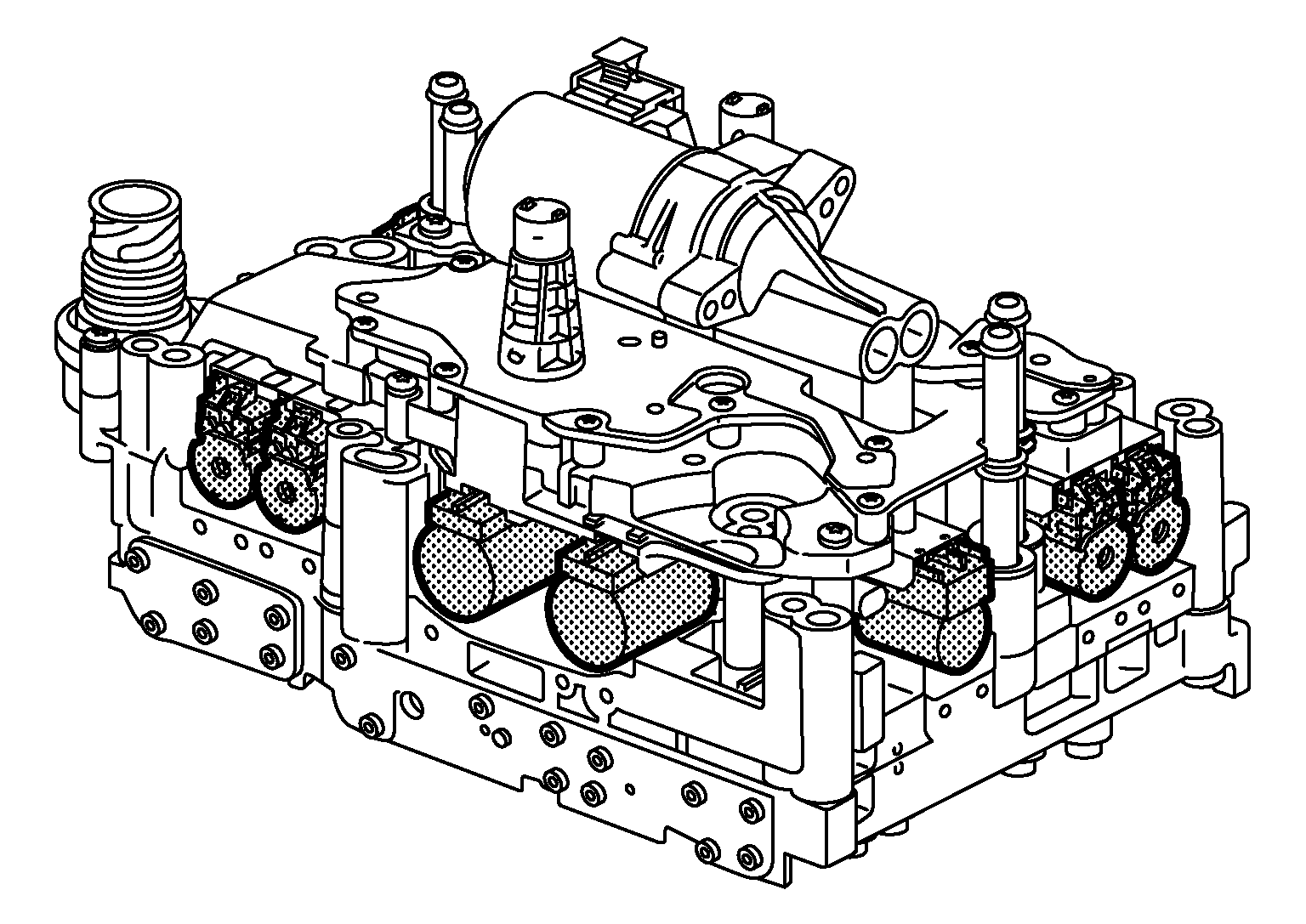

    GNSJSDIA9046Z-046Courtesy of NISSAN NORTH AMERICA, INC.
    • Shift rod control valve C
    • Shift rod control valve B
    • Shift rod control valve D
    • K1 clutch regulation valve
    • K2 clutch regulation valve
    • Park pawl switchover valve
    • Gear cylinder pressure valve
  10. Install end panels.

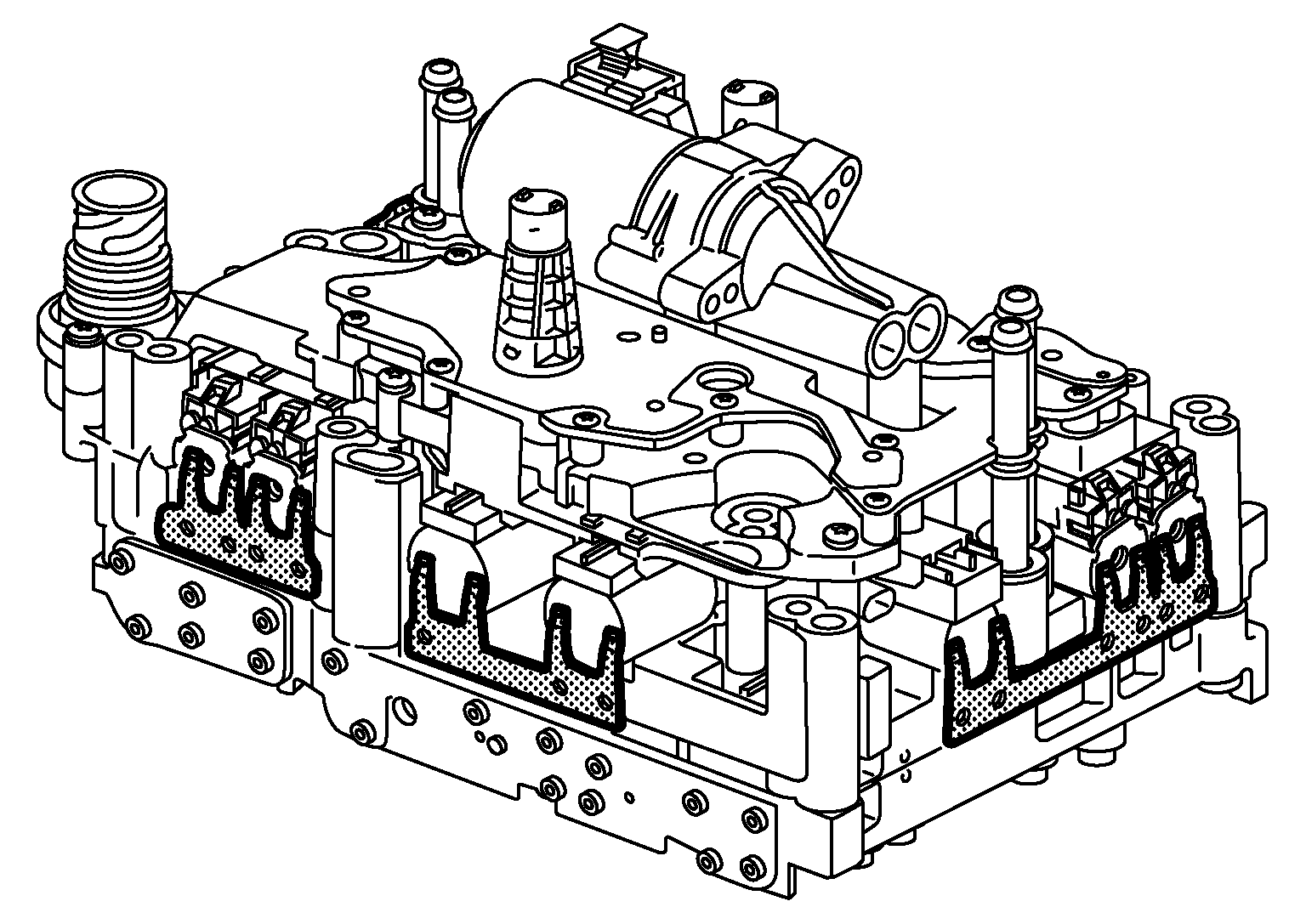

    GNSJSDIA9045Z-045Courtesy of NISSAN NORTH AMERICA, INC.
  11. Install bolts.

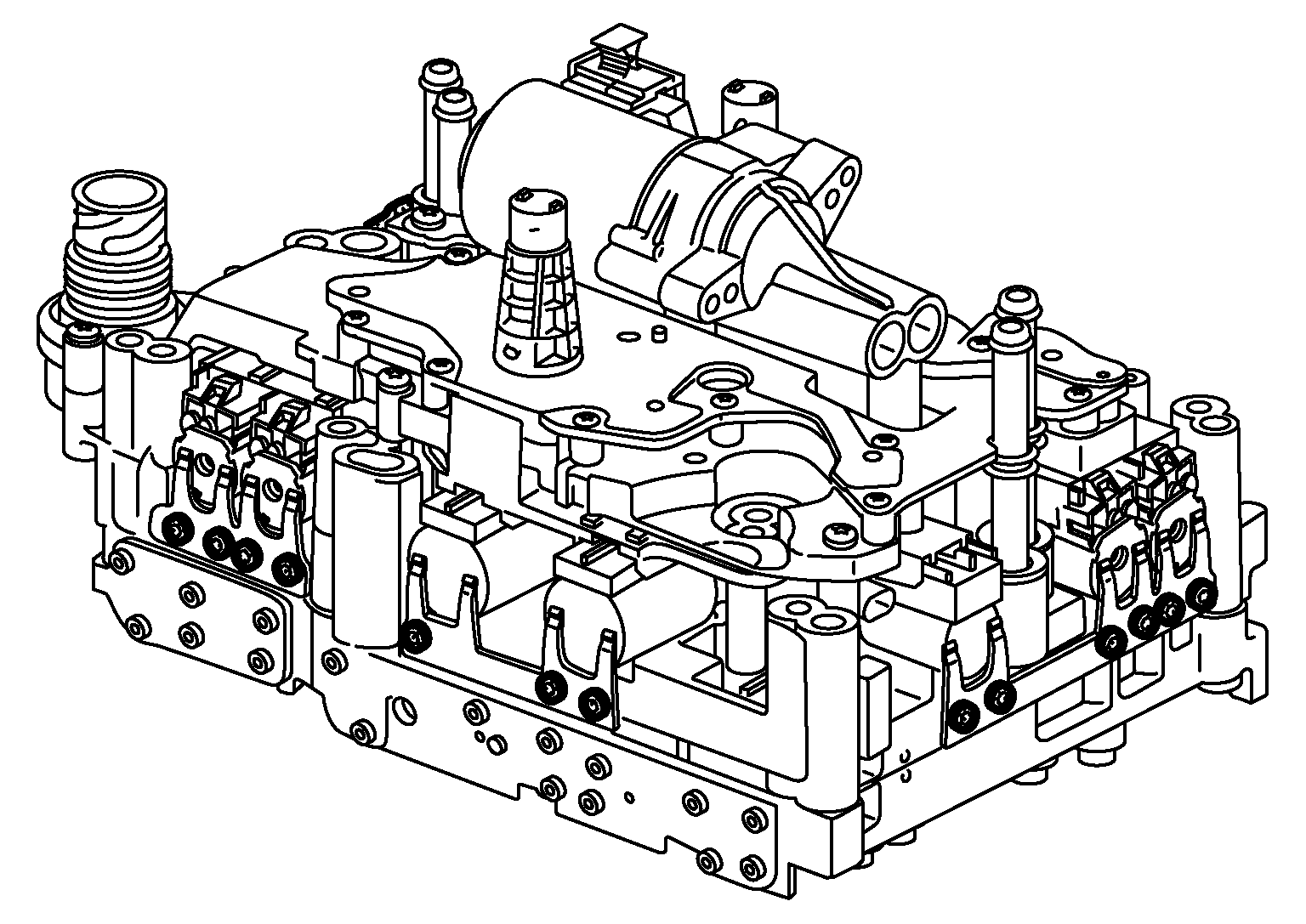

    GNSJSDIA9044Z-044Courtesy of NISSAN NORTH AMERICA, INC.
  12. Install system pressure control valve and shift rod control valve A.

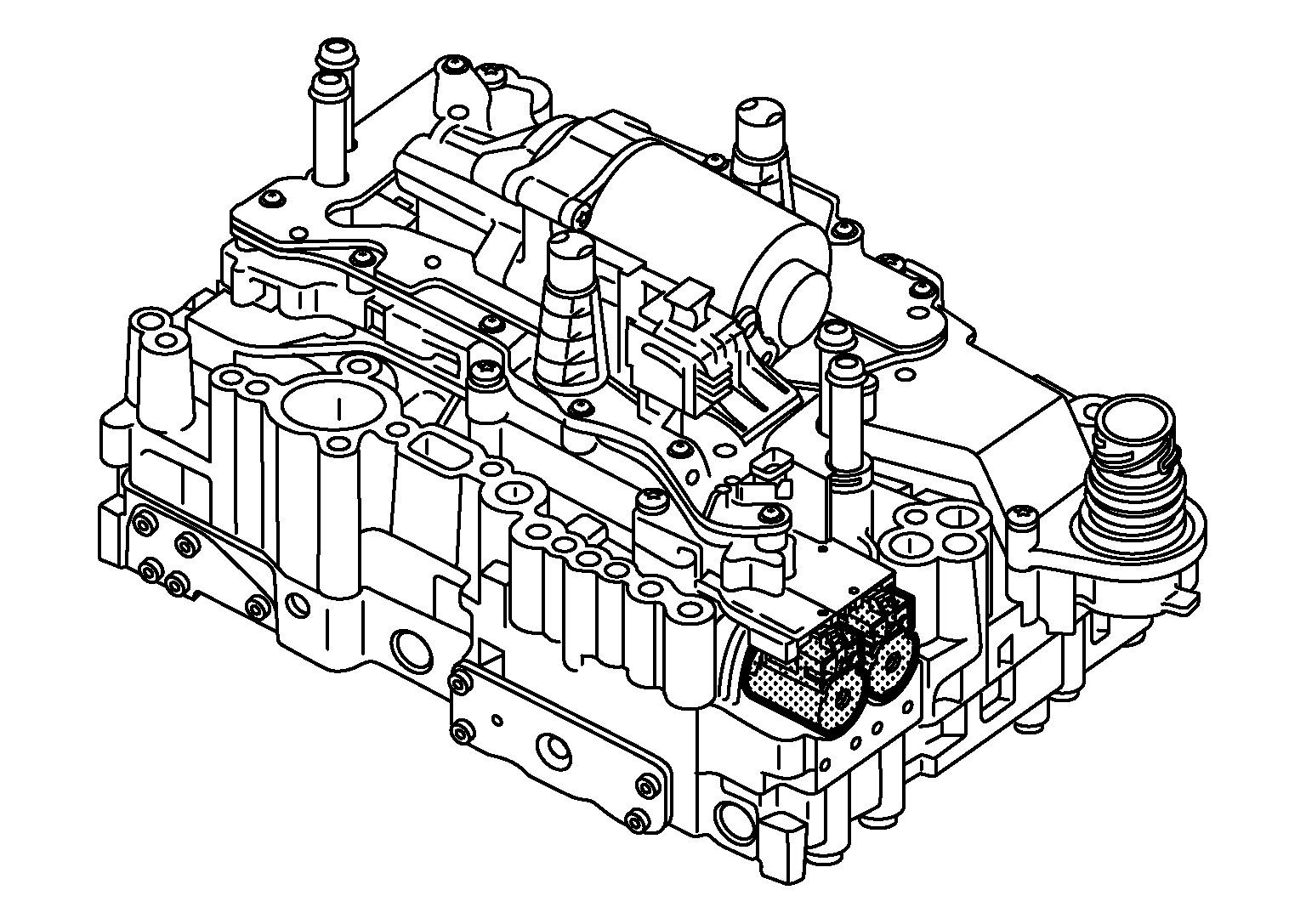

    GNSJSDIA9043Z-043Courtesy of NISSAN NORTH AMERICA, INC.
  13. Install end panels.

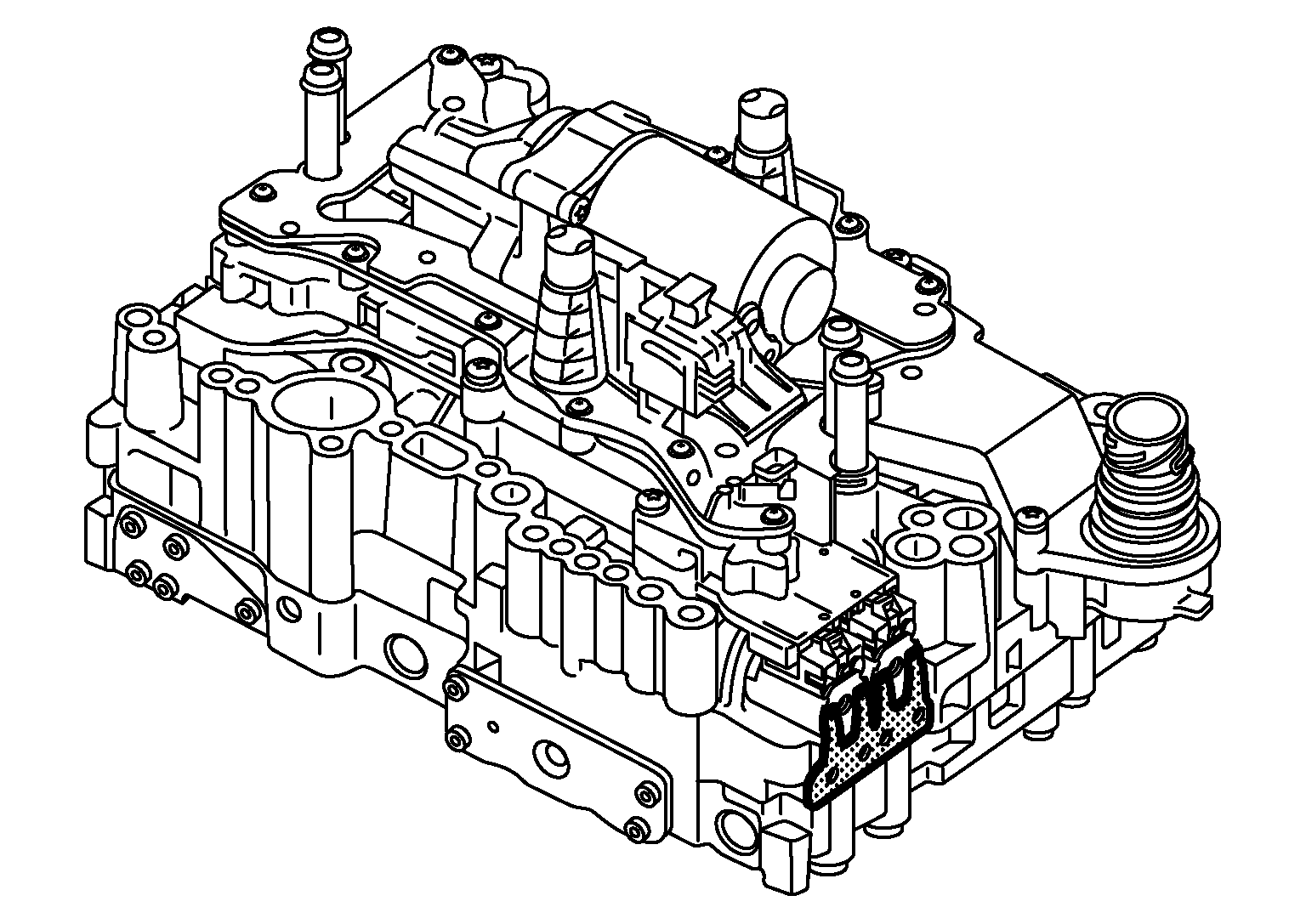

    GNSJSDIA9042Z-042Courtesy of NISSAN NORTH AMERICA, INC.
  14. Install bolts.

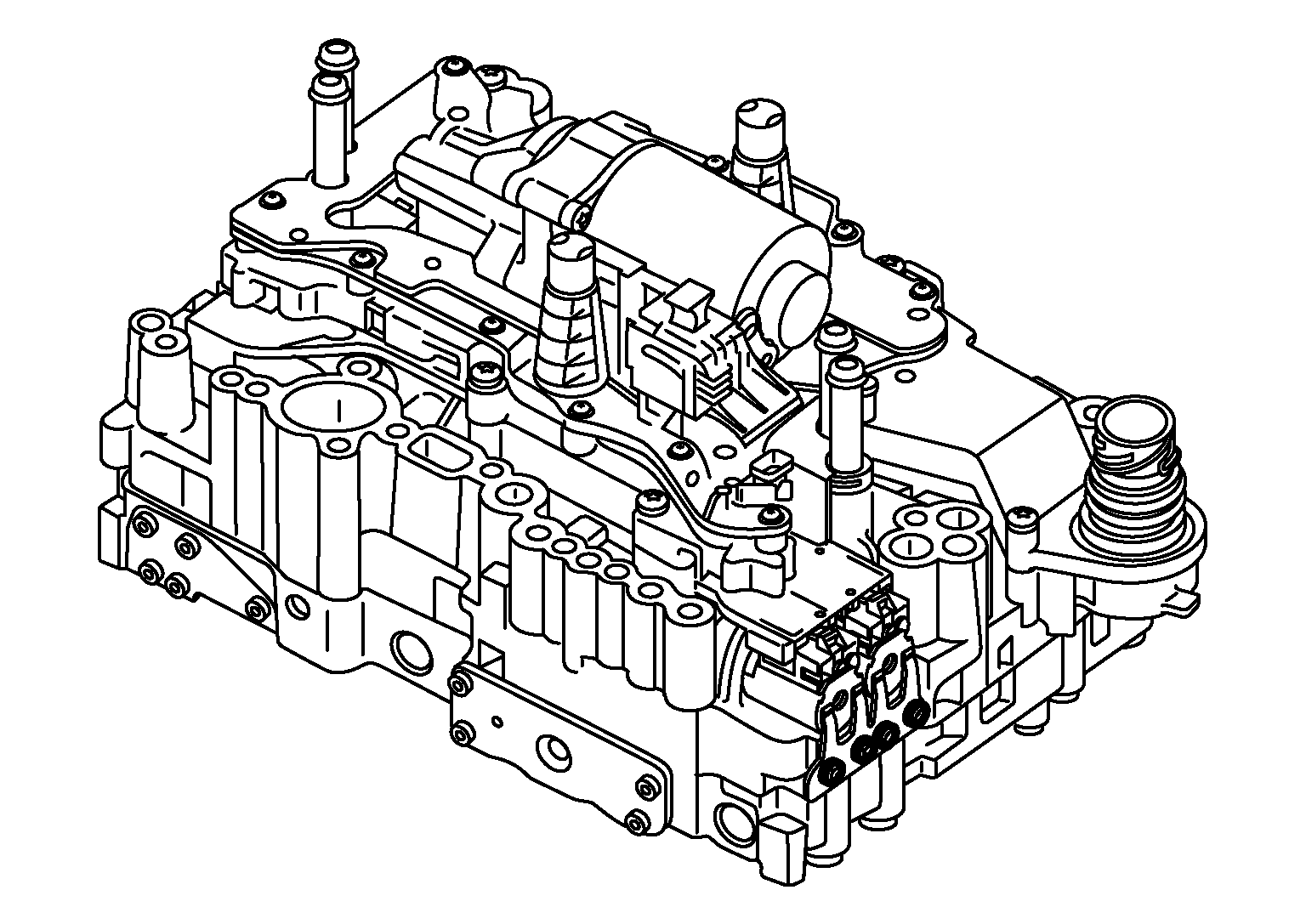

    GNSJSDIA9041Z-041Courtesy of NISSAN NORTH AMERICA, INC.
