  1. Remove cover.
  2. Using puller (B), remove bearing SYMBOL with putting the remover (A) at the gap SYMBOL between bearing and clutch housing SYMBOL .

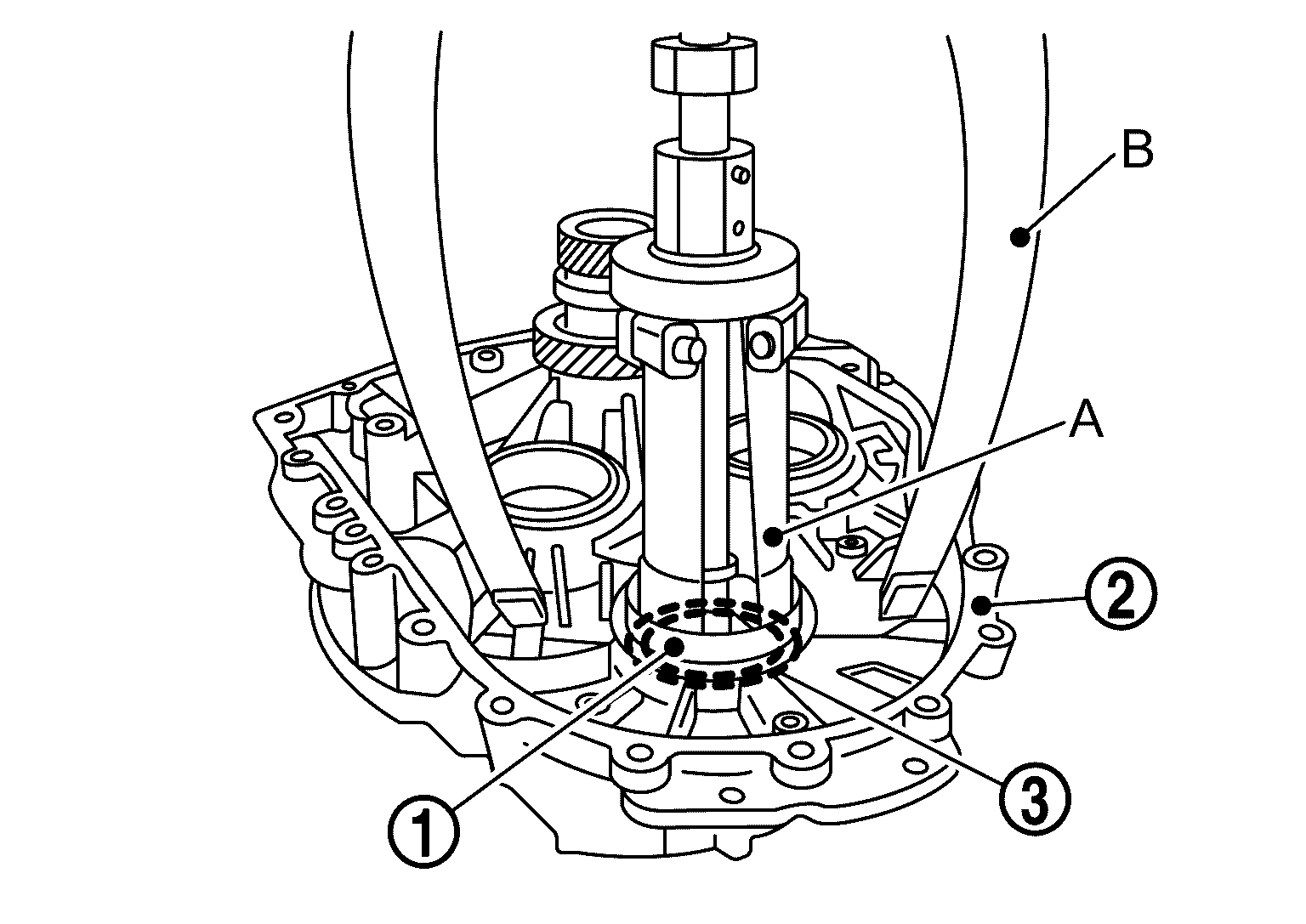

    GNSJSDIA8885Z-885Courtesy of NISSAN NORTH AMERICA, INC.
  3. Using puller (B), remove bearing SYMBOL with putting the remover (A) at the gap SYMBOL between bearing and clutch housing SYMBOL .

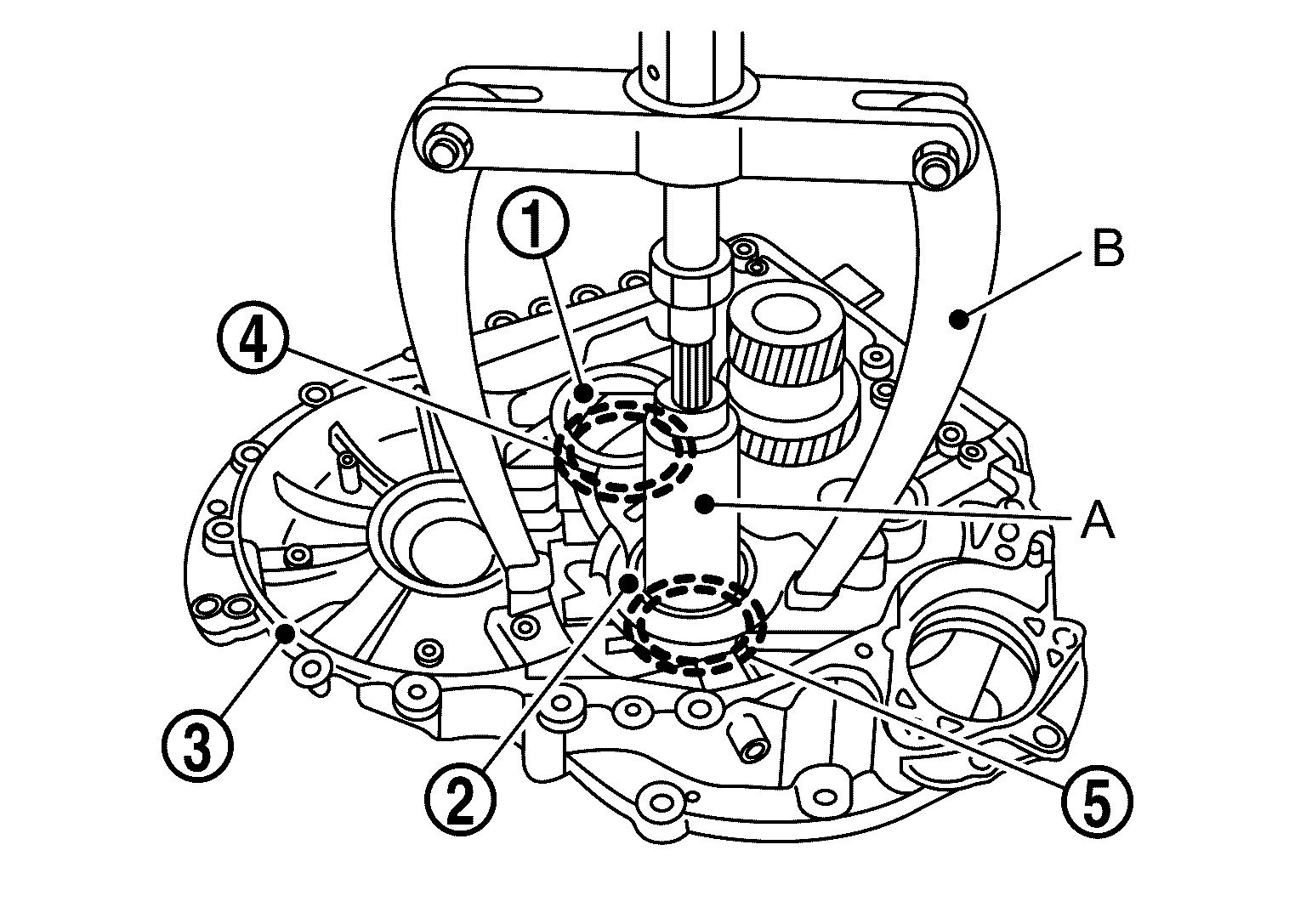

    GNSJSDIA8887Z-887Courtesy of NISSAN NORTH AMERICA, INC.
  4. Using puller (B), remove bearing SYMBOL with putting the remover (A) at the gap SYMBOL between bearing and clutch housing SYMBOL .
  5. Remove snap ring.
  6. Using suitable tool remove the hollow shaft.
  7. Remove lock ring.
  8. Remove ball bearing.
  9. Using suitable tool remove the differential side oil seal.
