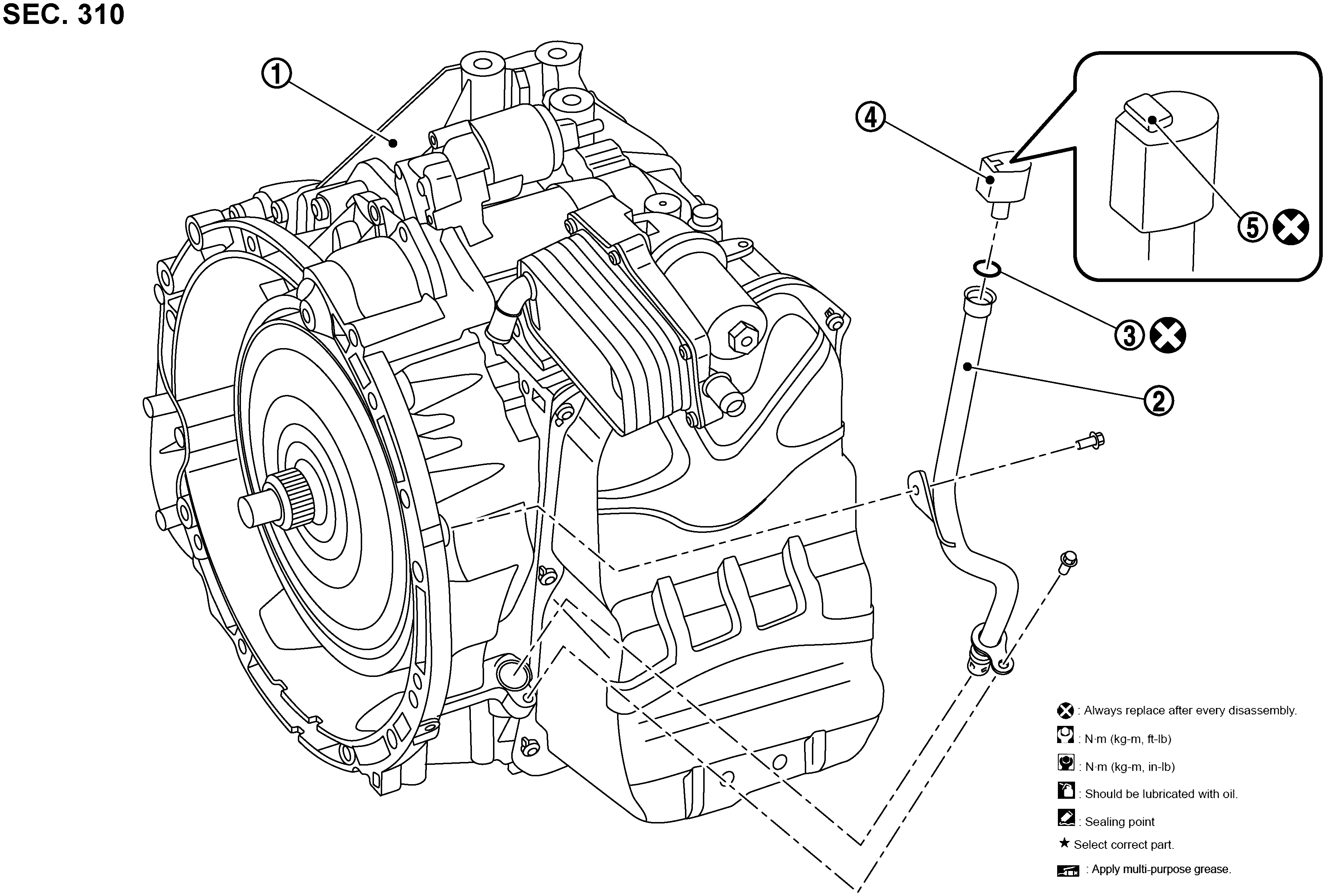

Exploded View

GNSJSDIA8945Z-945

Courtesy of NISSAN NORTH AMERICA, INC.

	Transaxle assembly		Transaxle fluid charging pipe		O-ring
	Cap		Lock pin
	: Always replace after every disassembly.
