Transaxle Fluid: Changing

Recommended fluid and fluid capacity

: Refer to Fluids and Lubricants .
  1. Apply the parking brake and start the engine.
  2. Warm up the engine.
  3. Shift through P-R-N-D several times with the vehicle stationary and the engine idling.
  4. Select the N position.
  5. Stop the engine.
  6. Lift up the vehicle.
  7. Remove engine under cover. Refer to Removal and Installation .
  8. Remove the drain plug from the transaxle case, and then drain the transaxle fluid.
    CAUTION: Never get burn yourself, as transaxle fluid may be hot.
  9. Remove the oil pan. Refer to Removal and Installation .
  10. Remove the transaxle fluid filter. Refer to Removal and Installation .
  11. Lift down the vehicle.
  12. Remove the transaxle cooling module cap. Refer to Removal and Installation .
  13. Remove the transaxle cooling module element. Refer to Removal and Installation .
  14. Clean the oil pan.
  15. Clean the drain plug.
  16. Lift up the vehicle.
  17. Install the new transaxle fluid filter with new O-ring. Refer to Removal and Installation .
  18. Install the oil pan. Refer to Removal and Installation .
  19. Install the drain plug with new oil seal. Refer to Removal and Installation .
  20. Install the engine under cover.
  21. Lift down the vehicle.
  22. Install the new transaxle cooling module element. Refer to Removal and Installation .
  23. Install the transaxle cooling module cap with new O-ring. Refer to Removal and Installation .

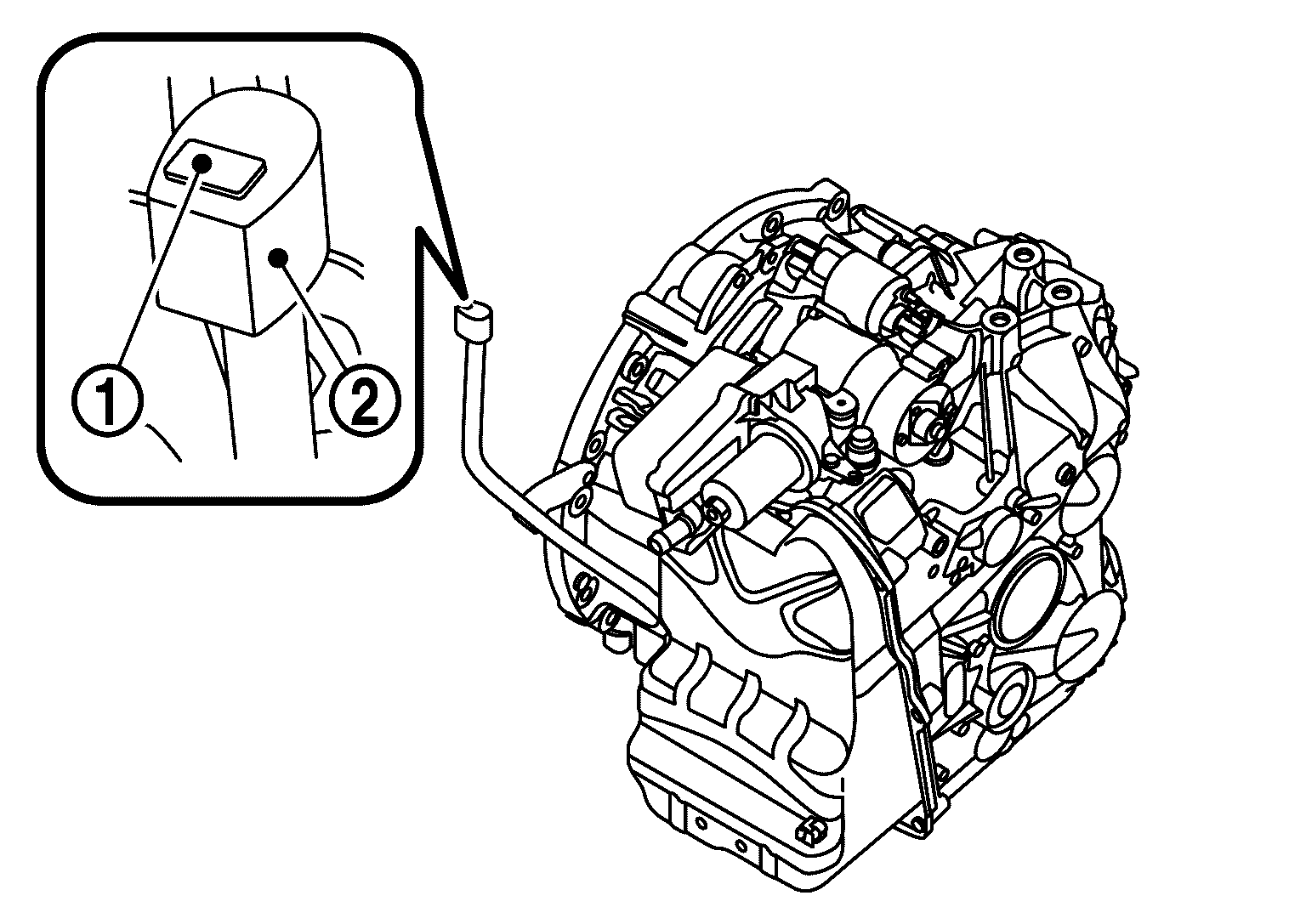

  24. Remove locking pin SYMBOL and remove cap SYMBOL from transaxle fluid charging pipe.
    GNSJSDIA8834Z-834Courtesy of NISSAN NORTH AMERICA, INC.

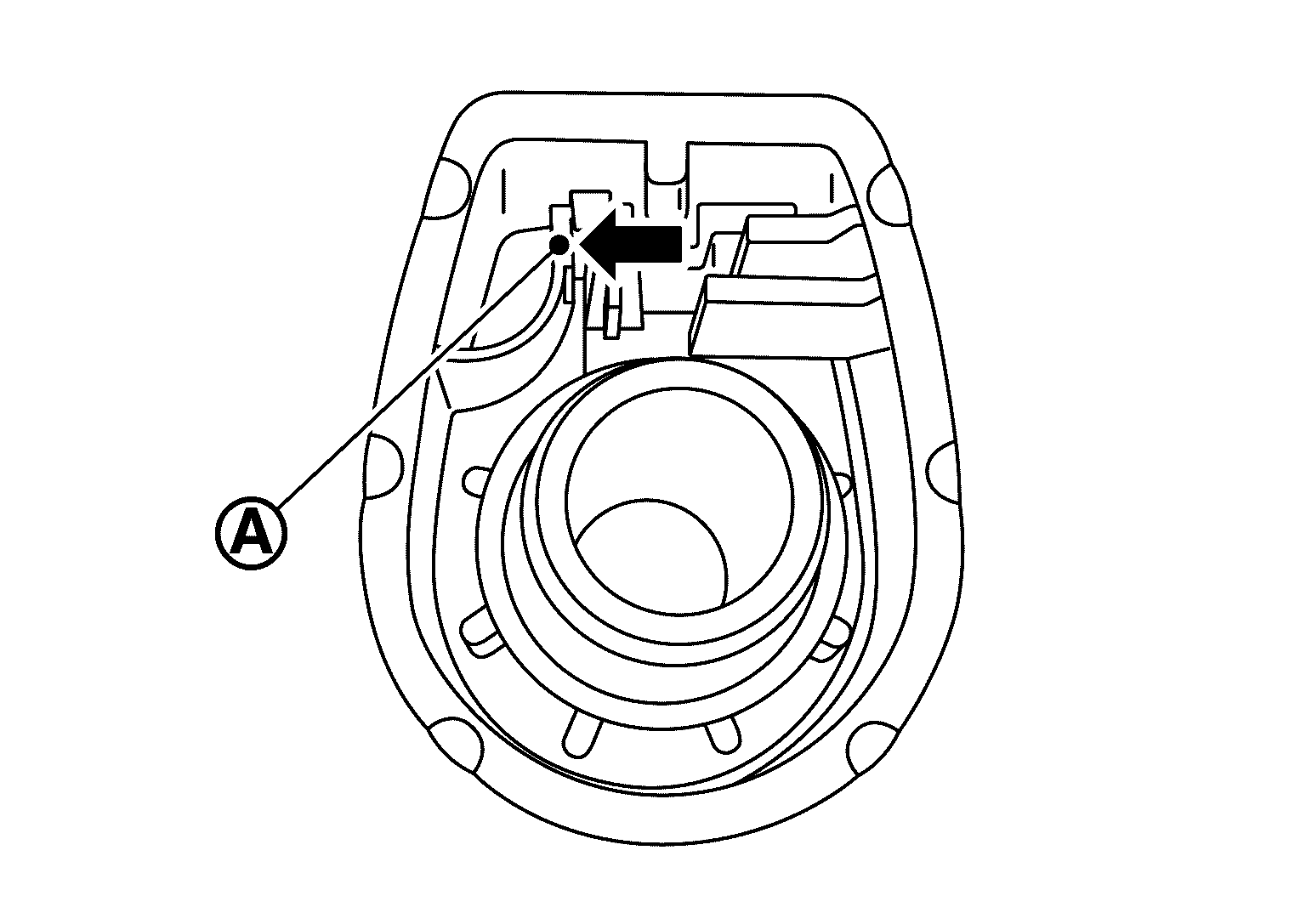

    NOTE: Locking pin can be removable by pressing lock plate SYMBOL of cap in the direction shown by arrow.
    GNSJSDIA8836Z-836Courtesy of NISSAN NORTH AMERICA, INC.
  25. Fill the new transaxle fluid.
    CAUTION: Never start the engine while filling the transaxle fluid.

    Transaxle fluid

    : 4 liters
  26. Adjust transaxle fluid level, if necessary. Refer to Adjustment .
