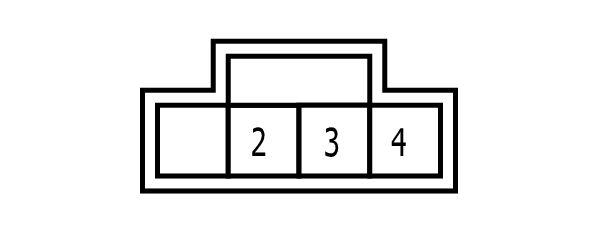

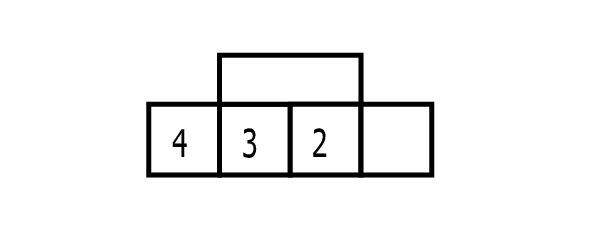

SUNLOAD Sensor Connector End View (M65)
Connector Types:
MB_A0375456528
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 2 |
Y |
SUNLOAD SENSOR SIGNAL 1 |
| 3 |
L |
SUNLOAD SENSOR SIGNAL 2 |
| 4 |
V |
SUNLOAD SENSOR GROUND |
