Diode Connector End View (M348)

Connector Types:  24335_7990A

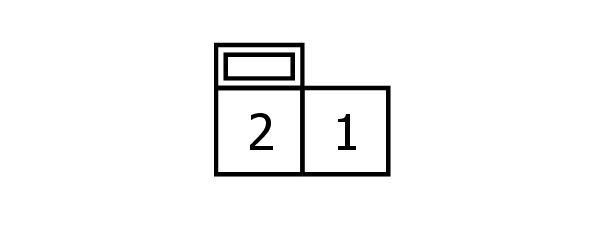

Fig 1: Terminal-side
GNSW57341Courtesy of NISSAN NORTH AMERICA

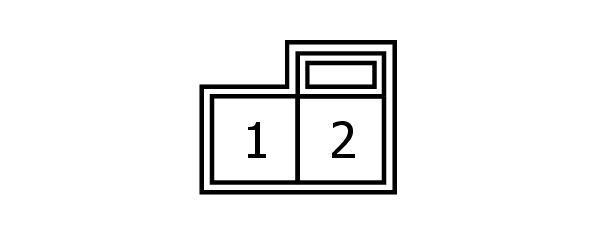

Fig 2: Harness-side
GNSW57132Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 W -
2 V -
