Battery Sensor Connector End View (E8)

Connector Types:  MB_A0065400281

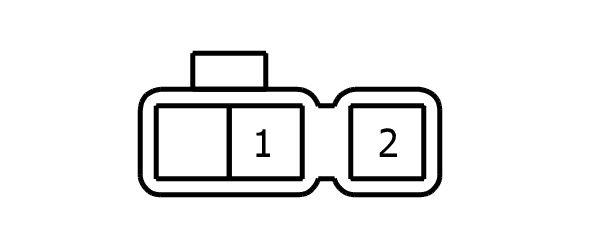

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

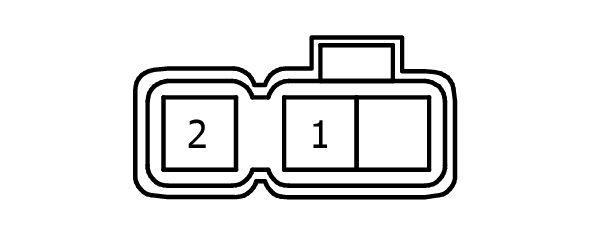

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	L	LIN (BAT SENSOR)
2	R	-
