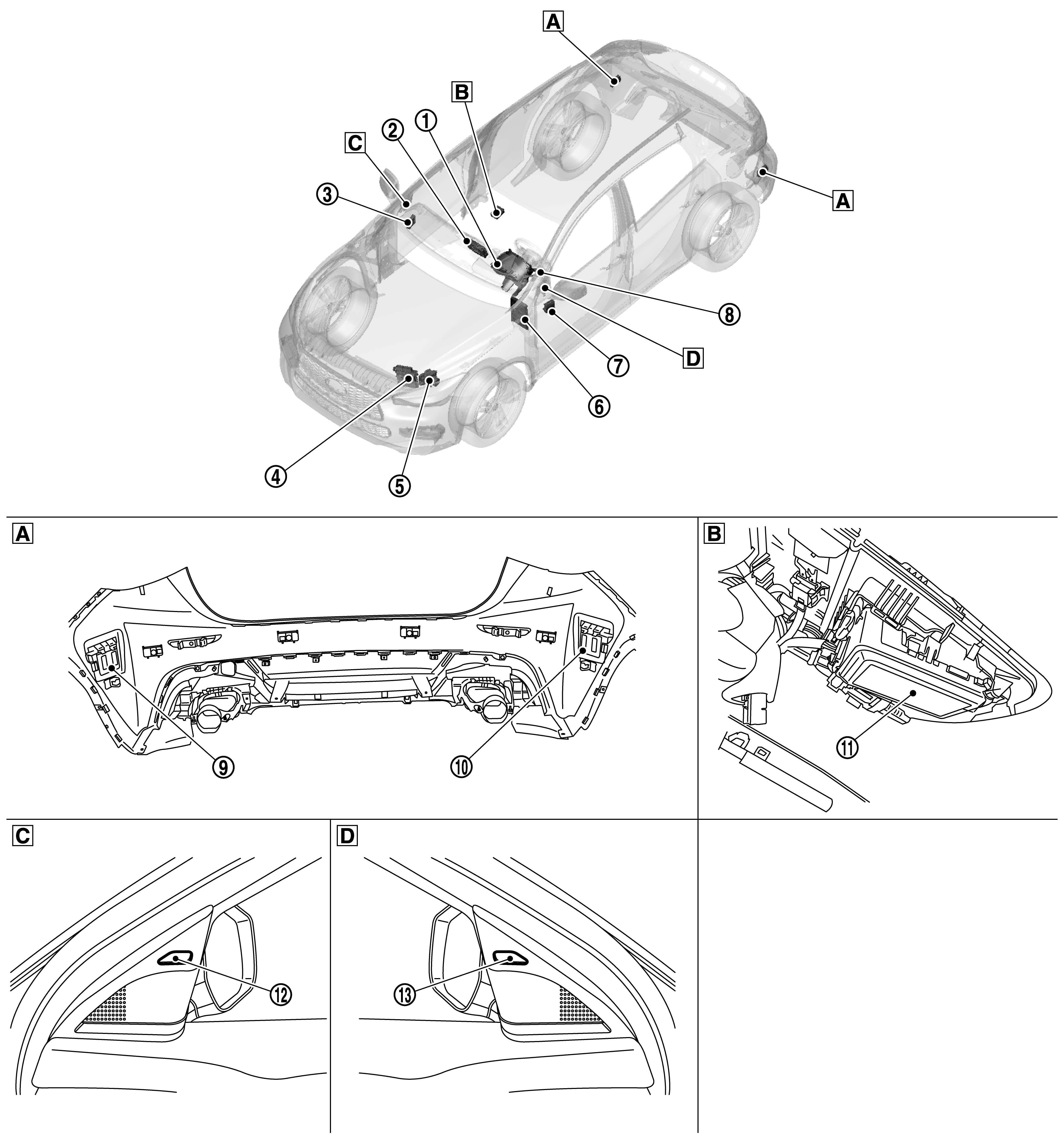

Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

	Behind of rear bumper		Upper side of windshield glass		Front door (Passenger side)
	Front door (Driver side)

No.	Component	Description
	Combination meter	Transmits LDW status signal and vehicle speed signal to front camera unit Transmits BSW status signal to side radar For details of the installation position, refer to Component Parts Location
	Display control unit	Transmits operation signal to front camera unit For details of the installation position, refer to Component Parts Location
	Right front door control unit	Operates BSW indicator RH For details of the installation position, refer to Component Parts Location
	ECM	Transmits accelerator pedal position signal to front camera unit Transmits drivetrain operation signal to side radar For details of the installation position, refer to the following. Gasoline engine models: Component Parts Location
	Electronic stability program control unit	Transmits mainly the following signals to front camera unit Brake pedal status signal Body acceleration sensor signal Wheel speed signal Transmits mainly the following signals to side radar Wheel speed signal Wheel rotation direction signal For details of the installation position, refer to Component Parts Location
	BCM	Transmits mainly the following signals to front camera unit Interior lamp automatic function switch status signal Reading lamp switch status signal For details of the installation position, refer to Component Parts Location
	Left front door control unit	Transmits driver side switch signal to front camera unit Operates BSW indicator LH For details of the installation position, refer to Component Parts Location
	Steering column control module	Transmits mainly the following signals to front camera unit Combination switch signal Steering wheel angle signal Cruise control lever signal Steering switch signal Operates steering vibration motor For details of the installation position, refer to Component Parts Location
	Side radar RH	Side Radar LH/RH
	Side radar LH	Side Radar LH/RH
	Front camera unit	Front Camera Unit
	BSW indicator RH	BSW Indicator LH/RH
	BSW indicator LH	BSW Indicator LH/RH
