Exploded View

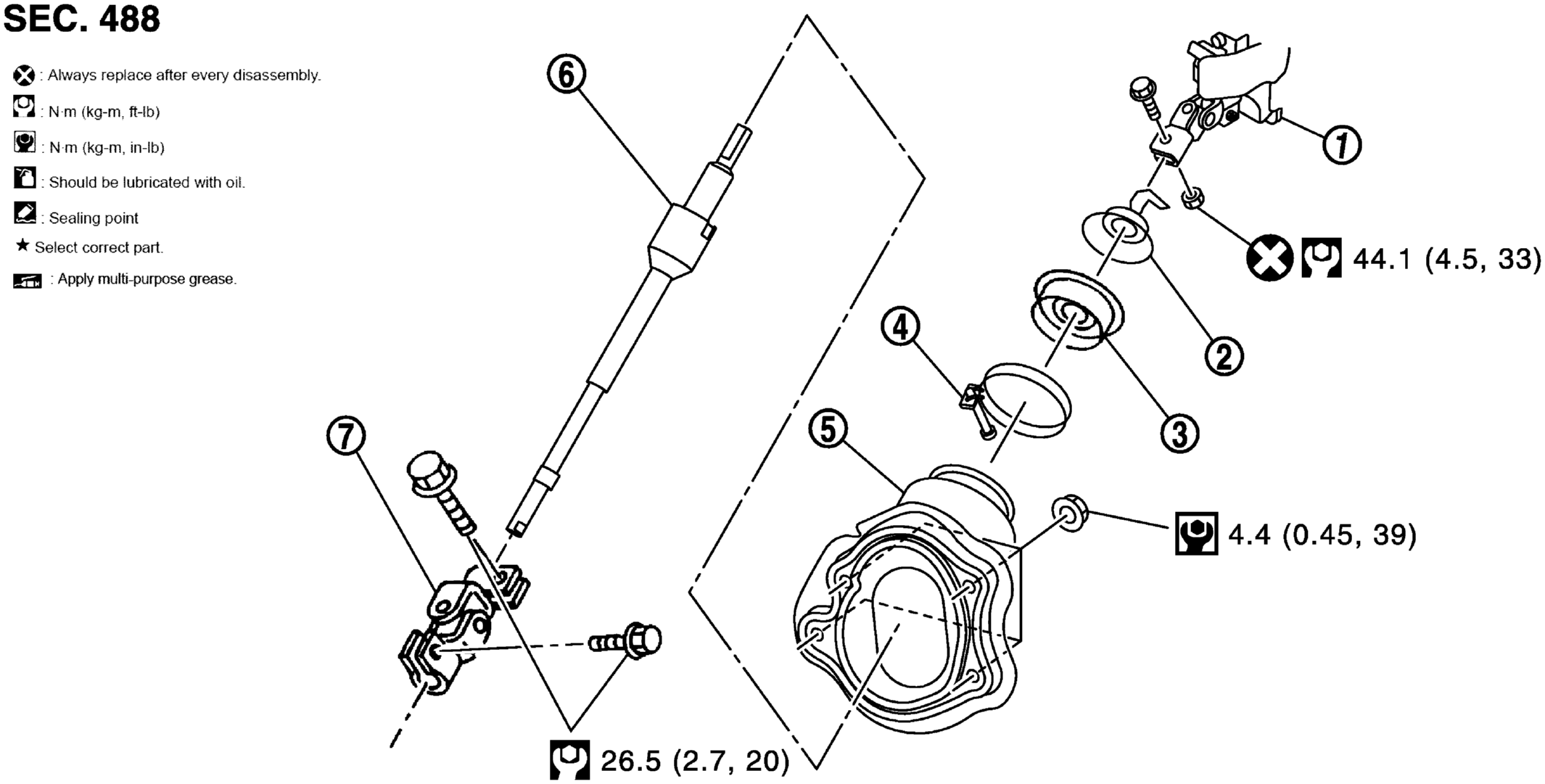

Fig 1: Lower Shaft With Torque Specifications
GNSJSGIA0800GB-800Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Collar

3.

Hole cover seal

4.

Clamp

5.

Hole cover

6.

Lower shaft

7.

Lower joint

SYMBOL

: Always replace after every disassembly.

SYMBOL

:N.m (kg-m, ft-lb)

SYMBOL

:N.m (kg-m, in-lb)
