Exploded View: Removal

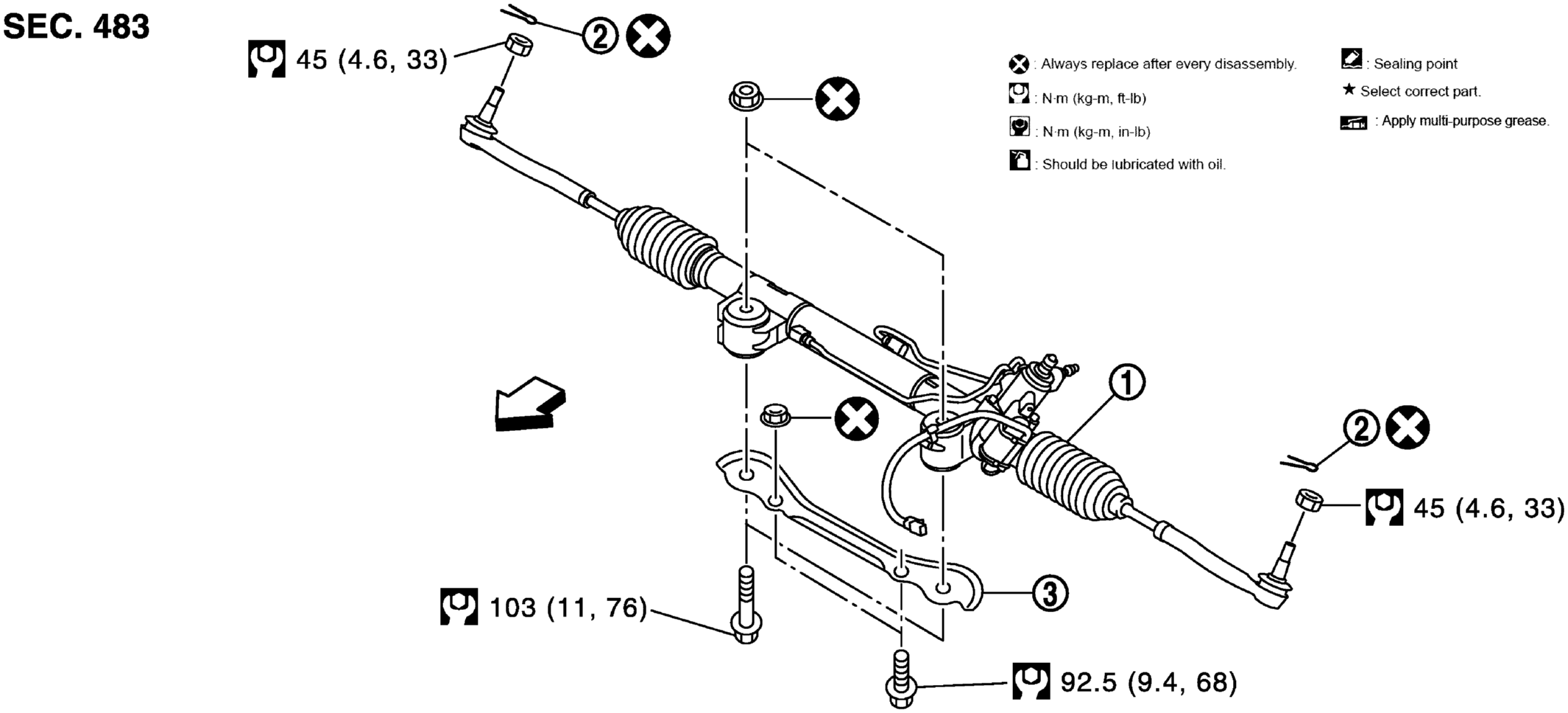

Fig 1: Steering Gear And Linkage 2WD With Torque Specifications
GNSJPGIA0047GB-047Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering gear assembly

2.

Cotter pin

3.

Rack stay

SYMBOL : Vehicle front

SYMBOL

: Always replace after every disassembly.

SYMBOL

:N.m (kg-m, ft-lb)
