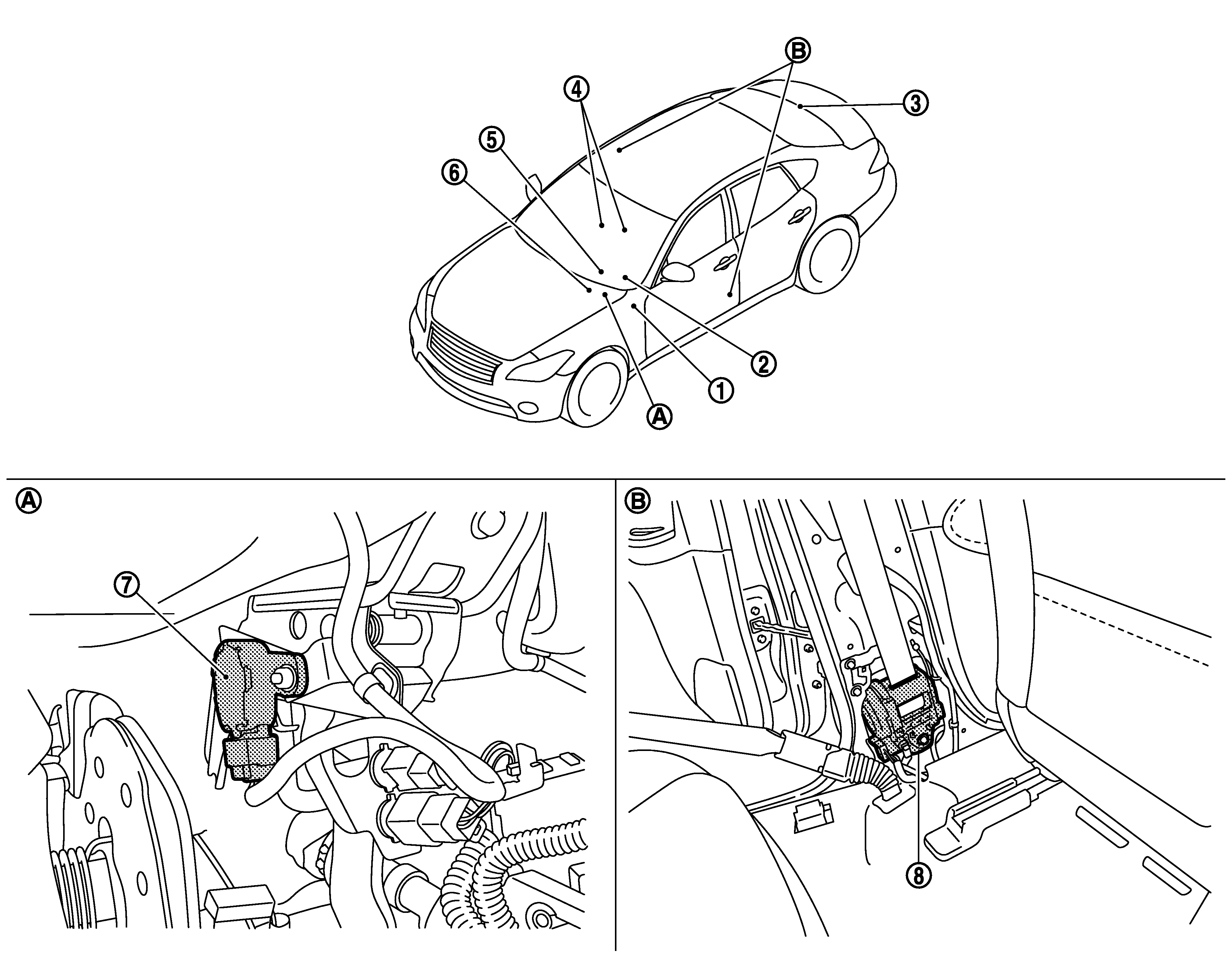

Component Parts Location
|
1. |
BCM |
2. |
Combination meter |
3. |
ADAS control unit |
|
4. |
Seat belt buckle switch |
5. |
Steering angle sensor |
6. |
ABS actuator and electric unit (control unit) |
|
7. |
Brake pedal stroke sensor |
8. |
Pre-crash seat belt control unit (driver side) |
||
|
A. |
View with instrument driver lower cover removed |
B. |
View with center pillar lower garnish removed (driver side) |
