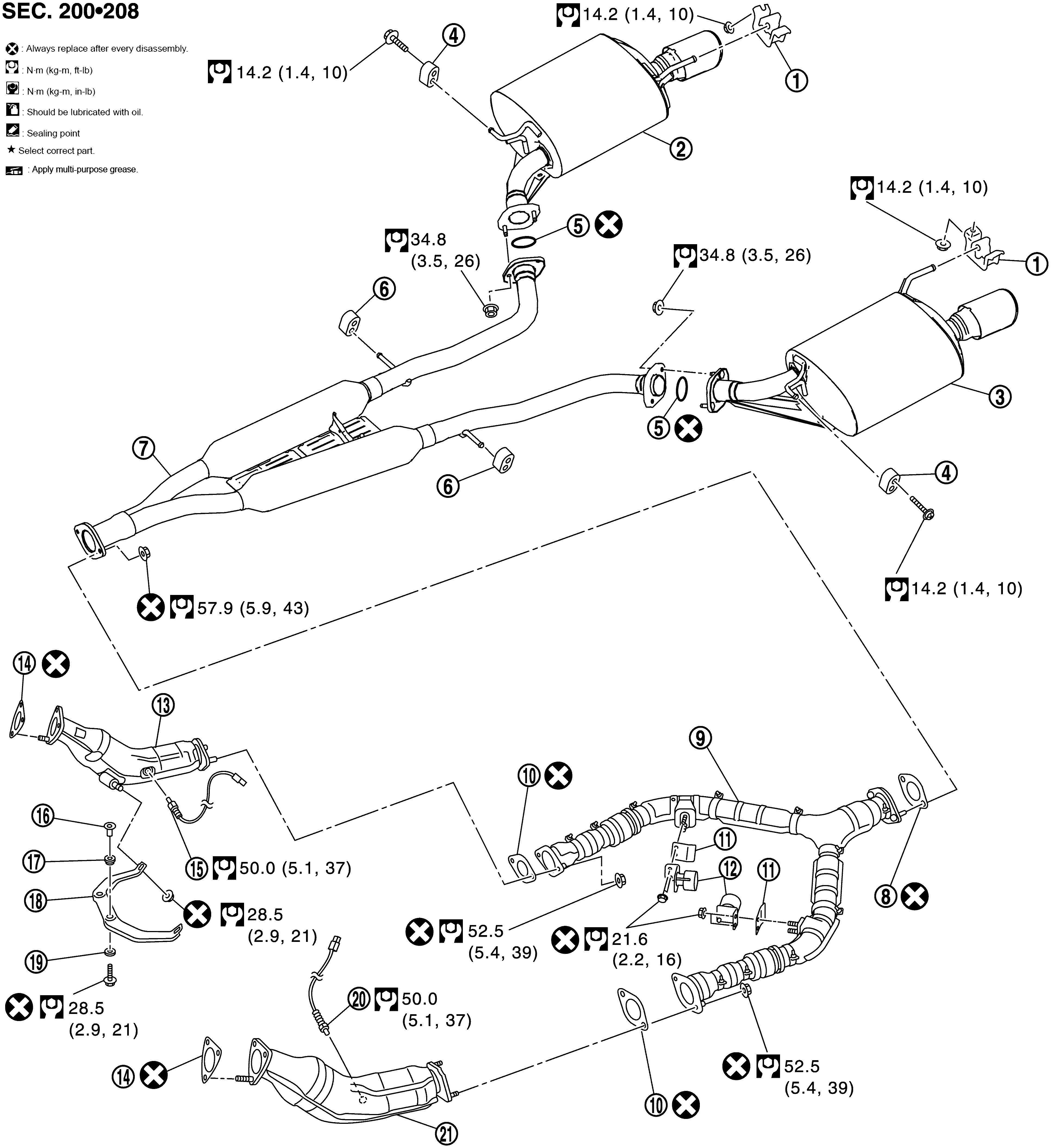

Exploded View

1.

Mounting rubber

2.

Main muffler (RH)

3.

Main muffler (LH)

4.

Mounting rubber

5.

Ring gasket

6.

Mounting rubber

7.

Center muffler

8.

Gasket

9.

Exhaust front tube

10.

Gasket

11.

Insulator

12.

Dynamic damper

13.

Three way catalyst (bank 1)

14.

Gasket

15.

Heated oxygen sensor 2 (bank 1)

16.

Collar

17.

Grommet

18.

Exhaust mounting bracket

19.

Grommet

20.

Heated oxygen sensor 2 (bank 2)

21.

Three way catalyst (bank 2)

: N.m (kg-m, ft-lb)

: Always replace after every disassembly.
