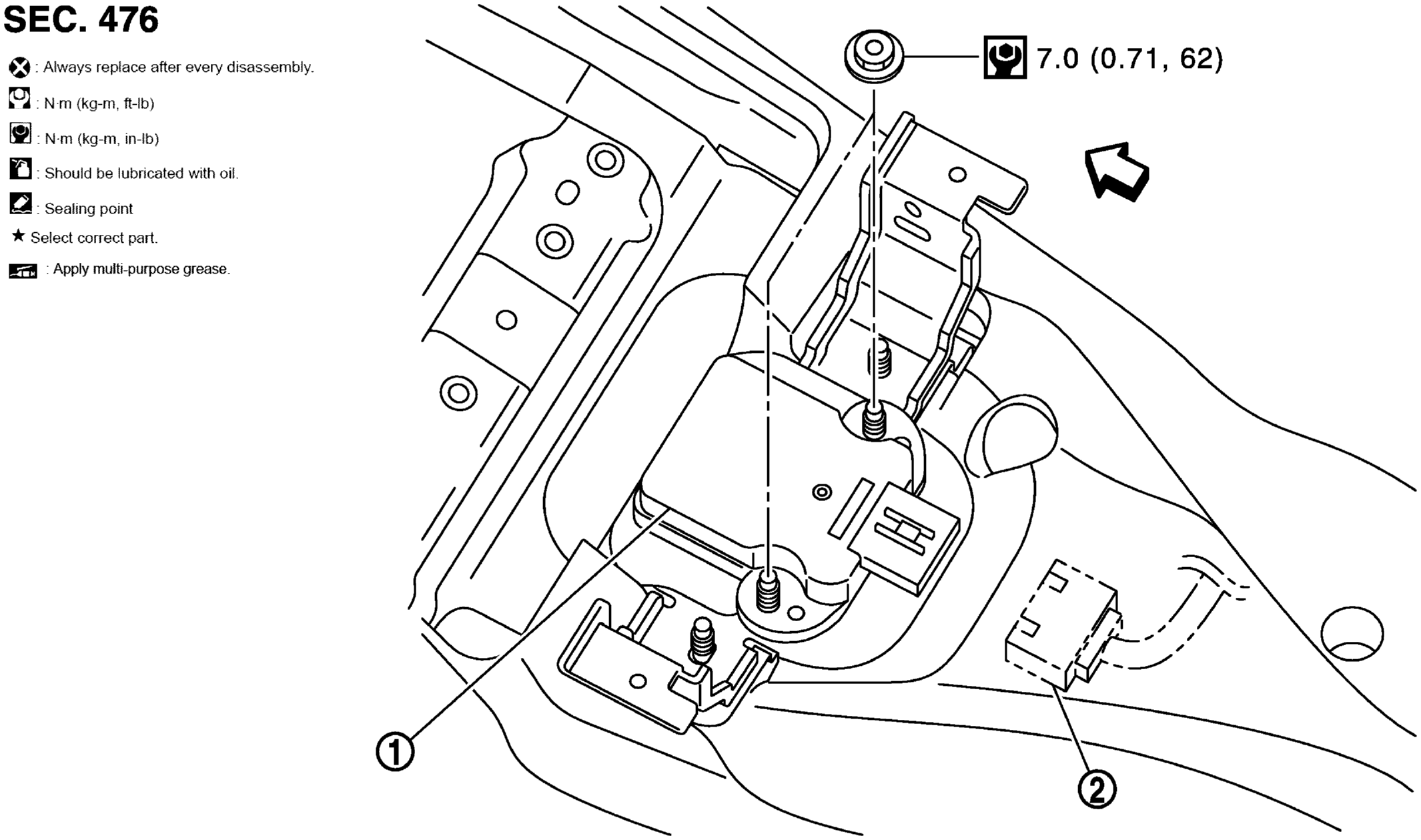

Exploded View

GNSJPFIC0104GB-104Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Yaw rate/side/decel G sensor

SYMBOL

Yaw rate/side/decel G sensor harness connector

SYMBOL

: Vehicle front

SYMBOL

:N.m (kg-m, in-lb)
