Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window Control System
>>
Removal And Installation
>>
Rear Power Window Switch
>>

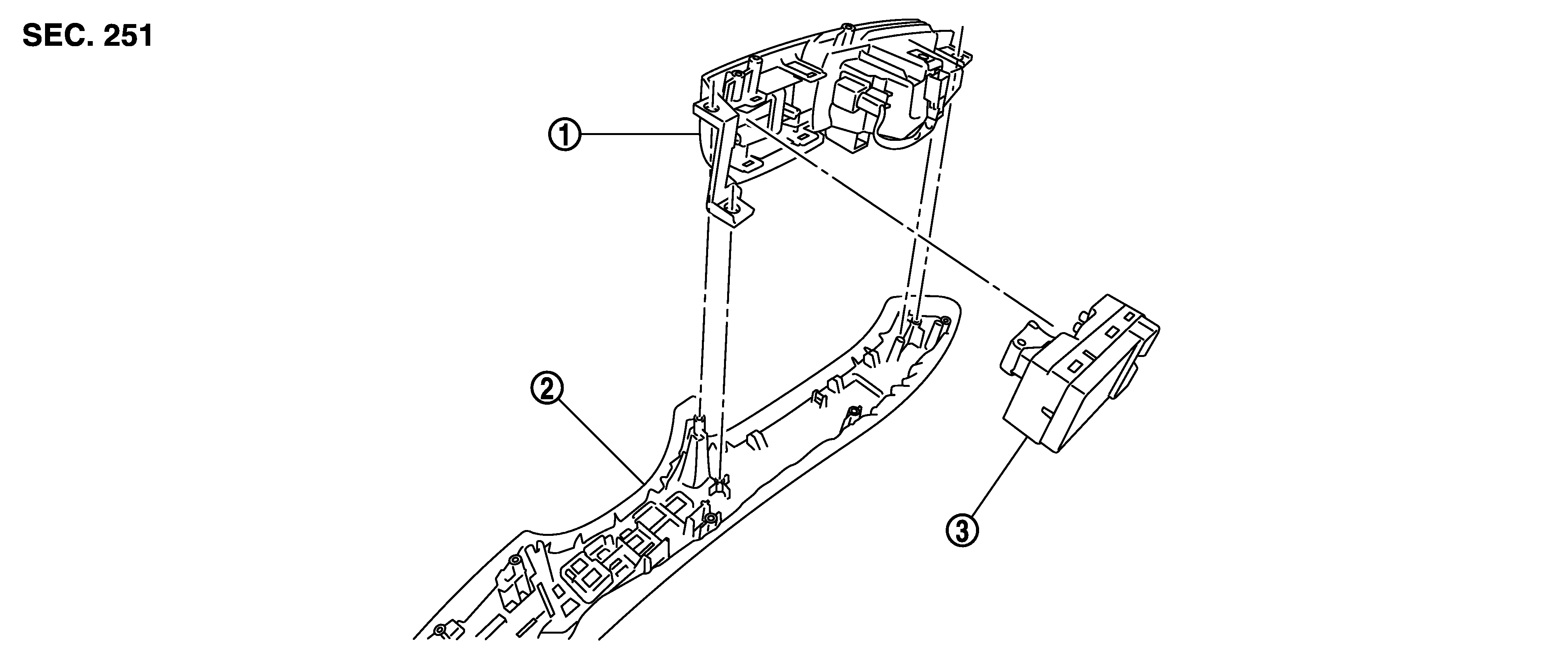

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Power window switch finisher
2.
Rear armrest
3.
Rear power window switch
