Exploded View: VQ37VHR

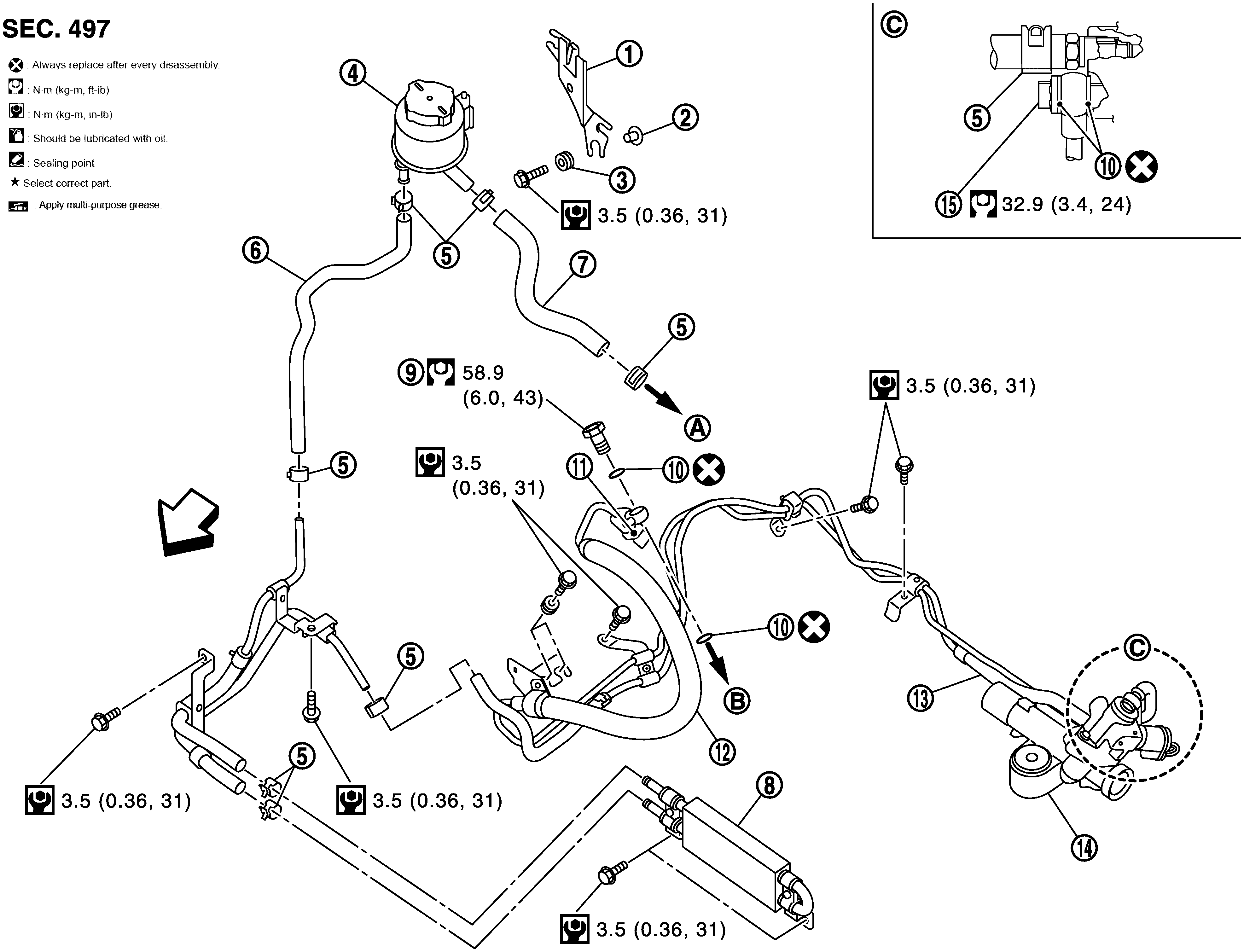

Fig 1: Hydraulic Line AWD 3.7L With Torque Specifications

GNSJPGIA0055GB-055

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir tank bracket	2.	Collar	3.	Bushing
4.	Reservoir tank	5.	Clamp	6.	Return hose
7.	Suction hose	8.	Oil cooler	9.	Eye bolt
10.	Copper washer	11.	Pressure sensor	12.	High pressure piping
13.	Low pressure piping	14.	Steering gear assembly	15	Eye bolt
A.	To power steering oil pump suction hose.	B.	To power steering oil pump.
: Vehicle front
	: Always replace after every disassembly.
	:N.m (kg-m, ft-lb)
	:N.m (kg-m, in-lb)
: Apply power steering fluid.

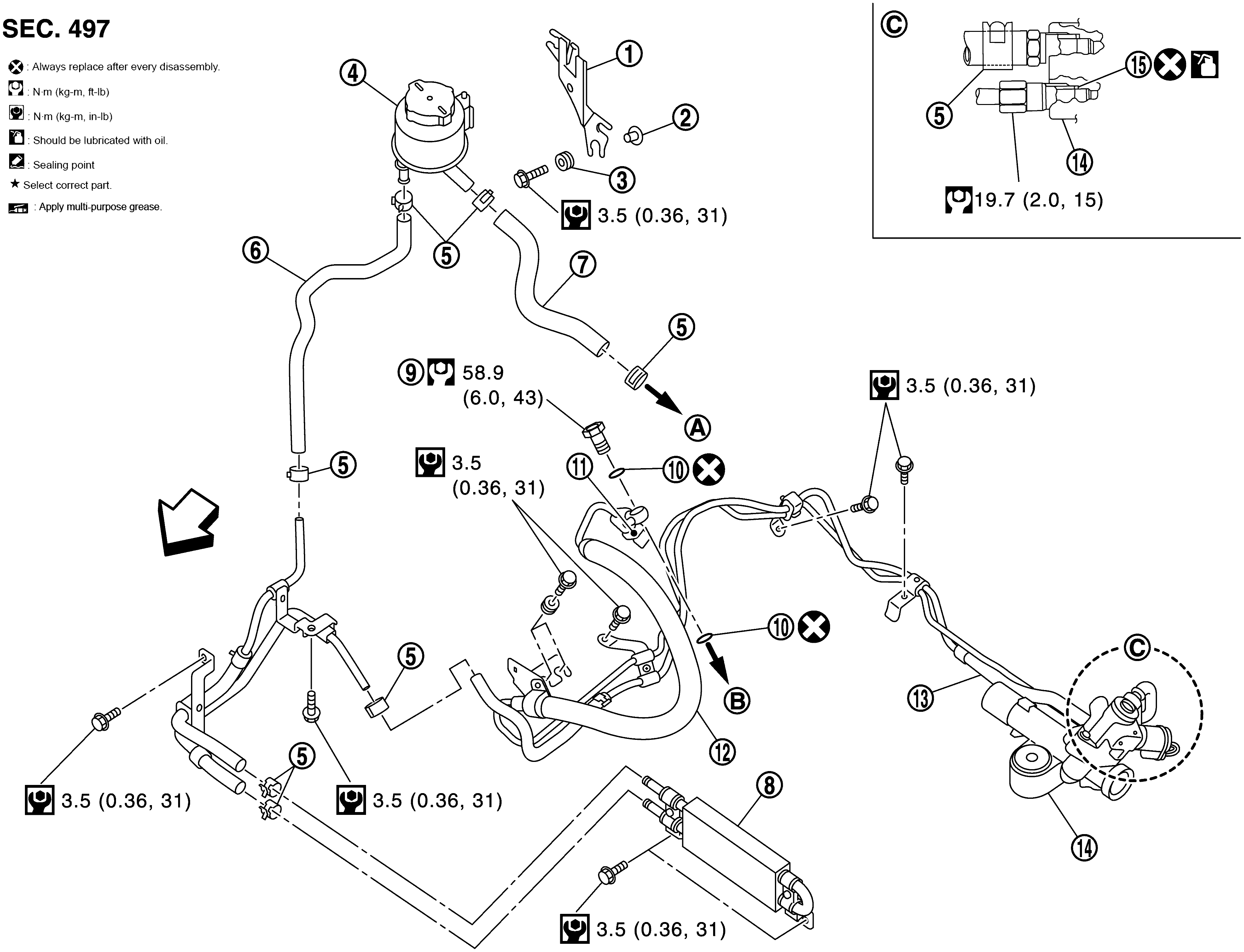

Fig 2: Joint of high pressure piping and steering gear assembly: Flare nut type

GNSJSGIA0951GB-951

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir tank bracket	2.	Collar	3.	Bushing
4.	Reservoir tank	5.	Clamp	6.	Return hose
7.	Suction hose	8.	Oil cooler	9.	Eye bolt
10.	Copper washer	11.	Pressure sensor	12.	High pressure piping
13.	Low pressure piping	14.	Steering gear assembly	15	O-ring
A.	To power steering oil pump suction hose.	B.	To power steering oil pump.
: Vehicle front
	: Always replace after every disassembly.
	:N.m (kg-m, ft-lb)
	:N.m (kg-m, in-lb)
: Apply power steering fluid.
