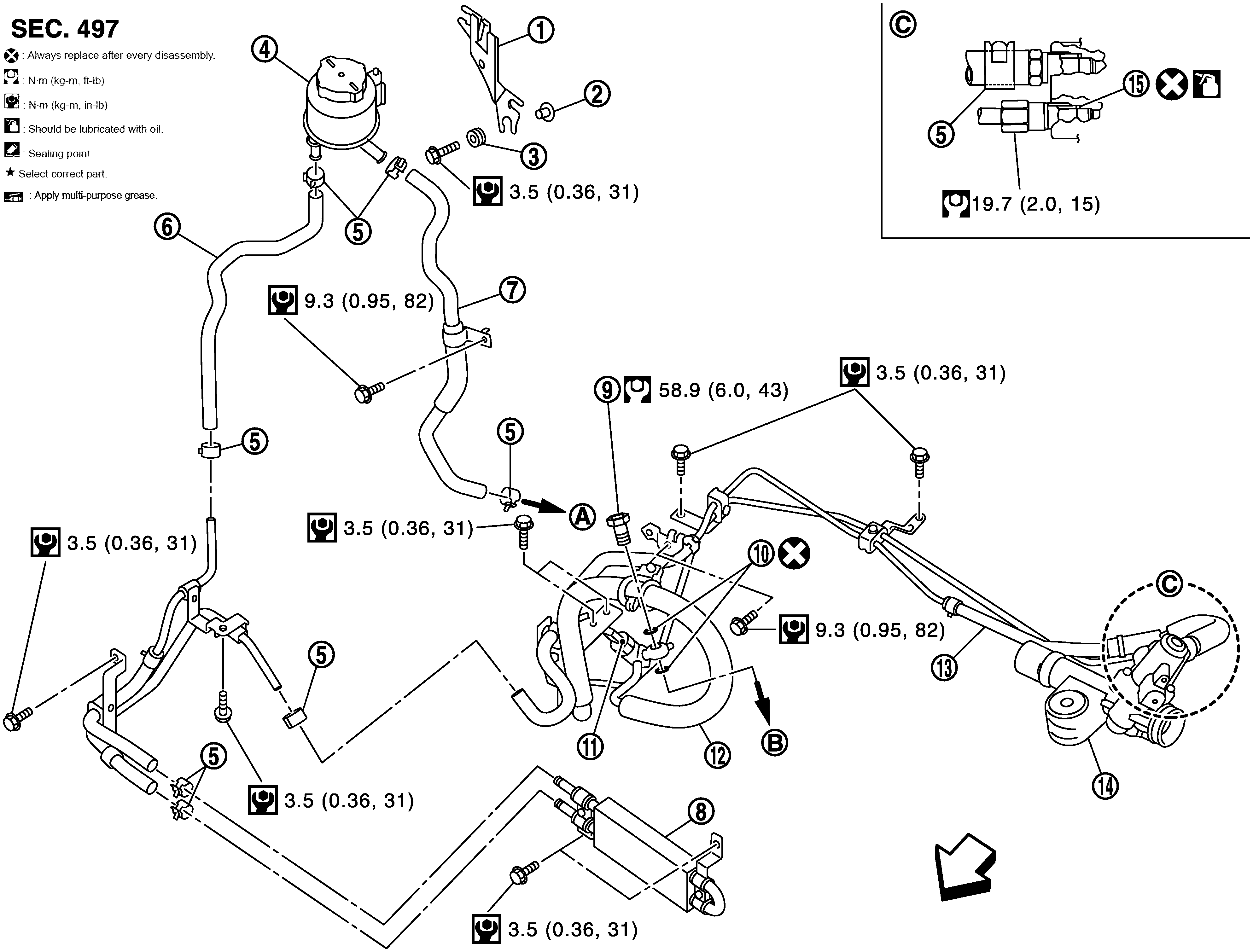

Exploded View: VK56VD
|
1. |
Reservoir tank bracket |
2. |
Collar |
3. |
Bushing |
|
4. |
Reservoir tank |
5. |
Clamp |
6. |
Return hose |
|
7. |
Suction hose |
8. |
Oil cooler |
9. |
Eye bolt |
|
10. |
Copper washer |
11. |
Pressure sensor |
12. |
High pressure piping |
|
13. |
Low pressure piping |
14. |
Steering gear assembly |
15 |
O-ring |
|
A. |
To power steering oil pump suction hose. |
B. |
To power steering oil pump. |
||
|
|
|||||
|
|
: Always replace after every disassembly. |
||||
|
|
:N.m (kg-m, ft-lb) |
||||
|
|
:N.m (kg-m, in-lb) |
||||
|
|
|||||
